CCT Stage 2 High-Flow Turbo Charger To Suit Toyota Landcruiser Prad...
CCT Quality Standards
Product Overview

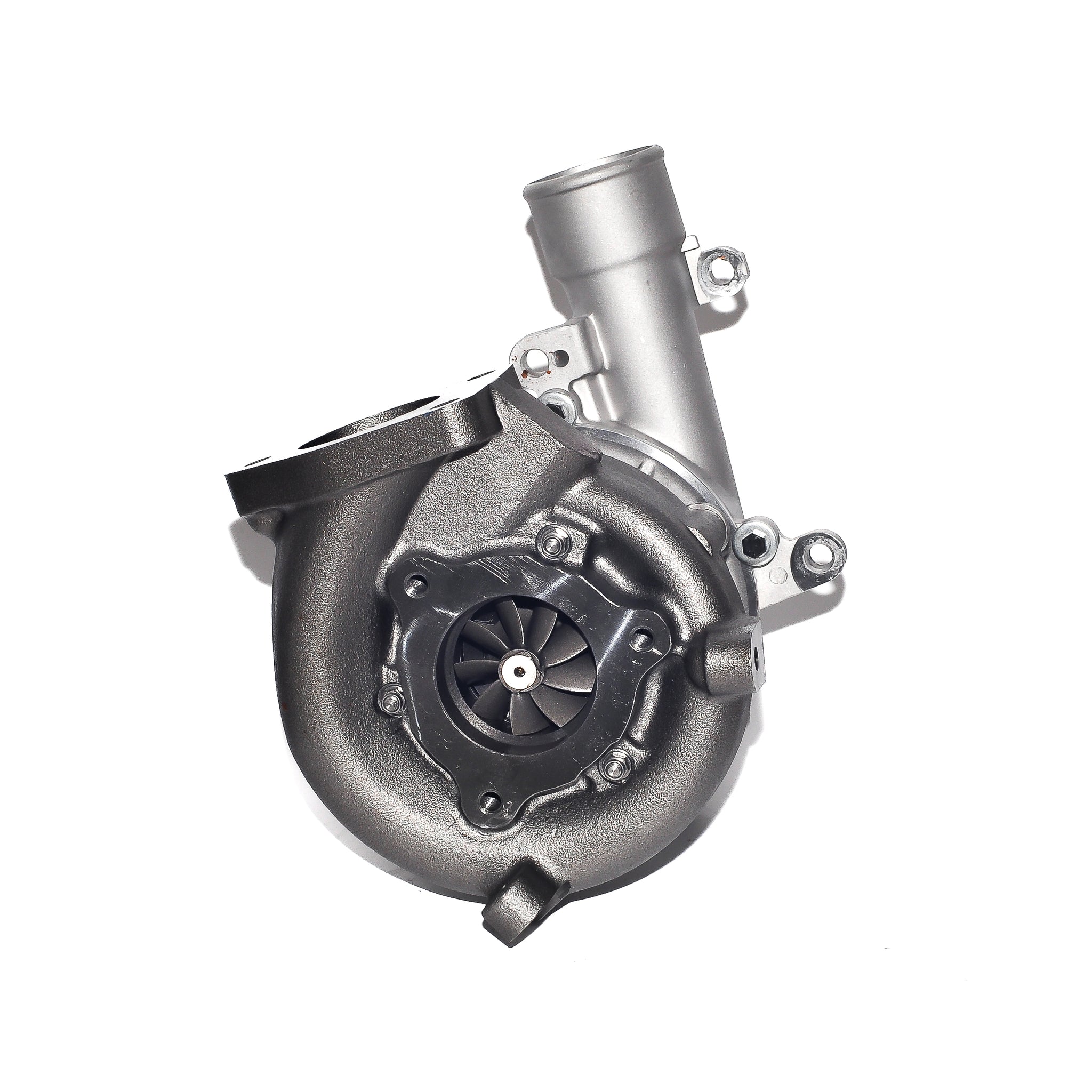

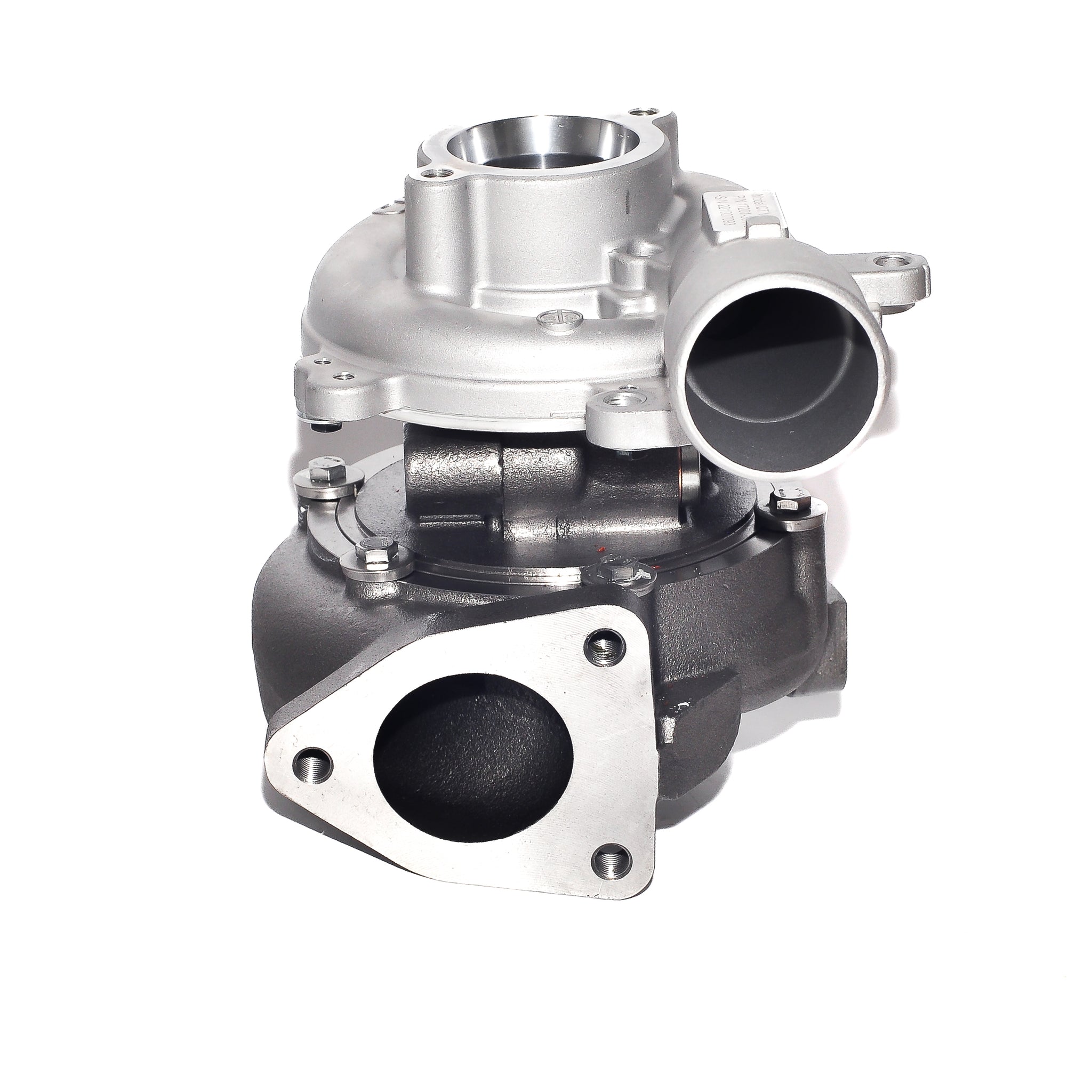

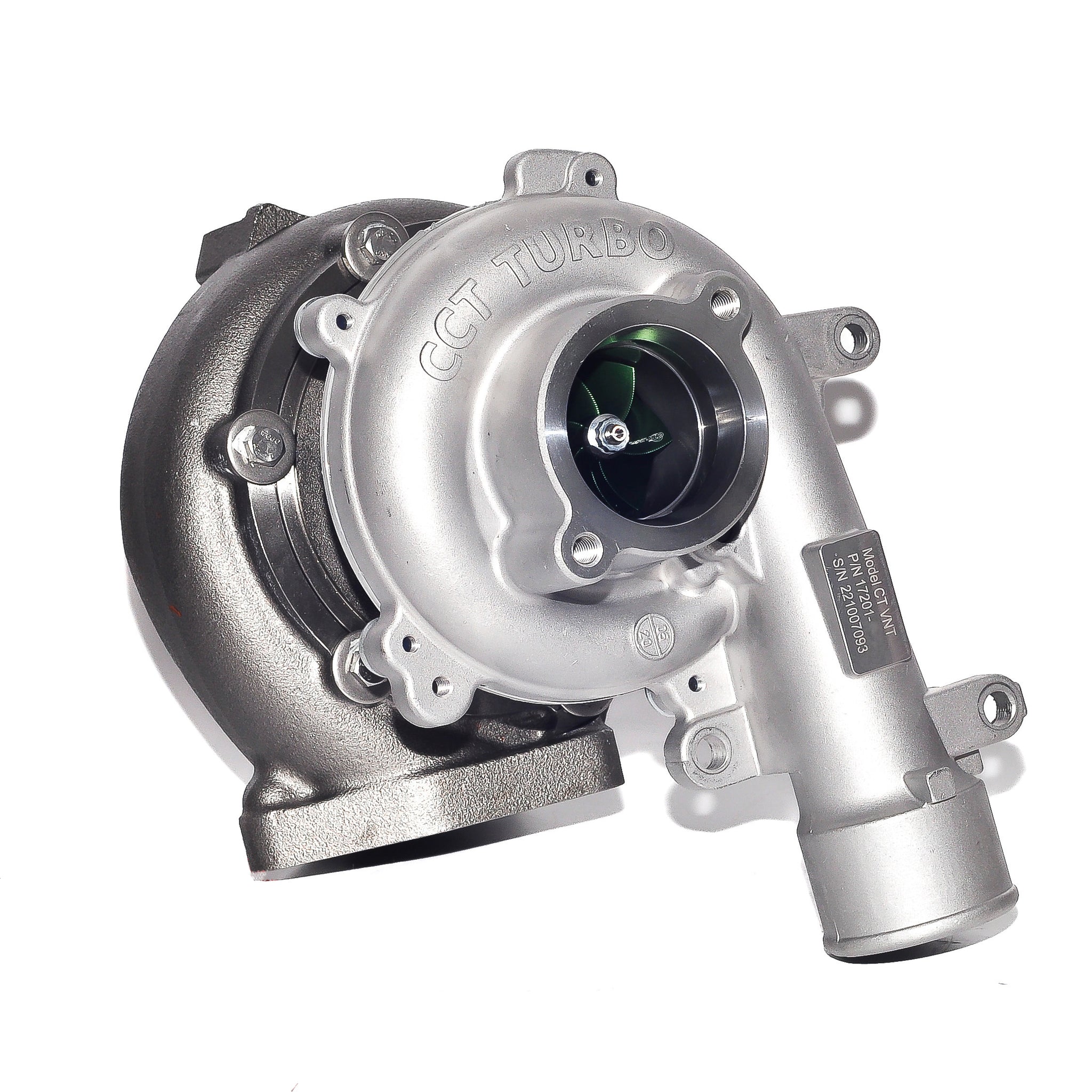

CCT Stage 2 Turbocharger Upgrade for Toyota Applications
The CCT Stage 2 Turbocharger Upgrade is engineered for Toyota Landcruiser Prado 150 Series and Toyota Landcruiser Prado 120 Series applications powered by the 1KD-FTV 3.0L D-4D Diesel engine.
Developed for higher-flow performance builds, the CCT Stage 2 is intended for applications using supporting ECU calibration and suitable engine modifications where increased airflow and greater peak power potential are required.
Engineering upgrades include +4mm Billet + Slim Hub + High Blades + Extended Tips, combined with 9-Blade Inconel 713C Hi-Flow Turbine Wheel and Enhanced 360° Thrust Bearing . Together, these changes are designed to improve compressor efficiency, mid-range response and durability under increased load, with a listed boost capability of up to 24 PSI.
Complete technical specifications and vehicle compatibility are provided below, together with a performance comparison where available.
Turbocharger Specifications
9B002 / TC1VED-S0017B / TC1VEDS0017B + 1 more
Vehicle Fitment Guide
Check the vehicle, chassis, year and engine details below before ordering.
| Vehicle | Chassis / Series | Year Range | Engine | Fitment Notes |
|---|---|---|---|---|
| ToyotaLandcruiser Prado Toyota Landcruiser Prado 150 Series KDJ150 1KD-FTV | 150 Series KDJ150R | 2009–2015 | 1KD-FTV 3.0L D-4D Diesel | Confirm part numbers before ordering. |
| ToyotaLandcruiser Prado Toyota Landcruiser Prado 120 Series KDJ120 1KD-FTV | 120 Series KDJ120R | 2006–2009 | 1KD-FTV 3.0L D-4D Diesel | Confirm part numbers before ordering. |
CCT Performance Upgrade Comparison
Compare the available CCT turbo upgrade stages for this turbo family. Select a stage heading to view the matching product.
| Technical Specification | Standard Turbo OEM Replacement | Stage 1 Plus Towing & Touring | Stage 2 High-Flow PerformanceCurrent |
|---|---|---|---|
| Compressor Wheel | Factory Cast Compressor Wheel | +2mm Billet + Slim Hub + High Blades + Extended Tips | +4mm Billet + Slim Hub + High Blades + Extended Tips |

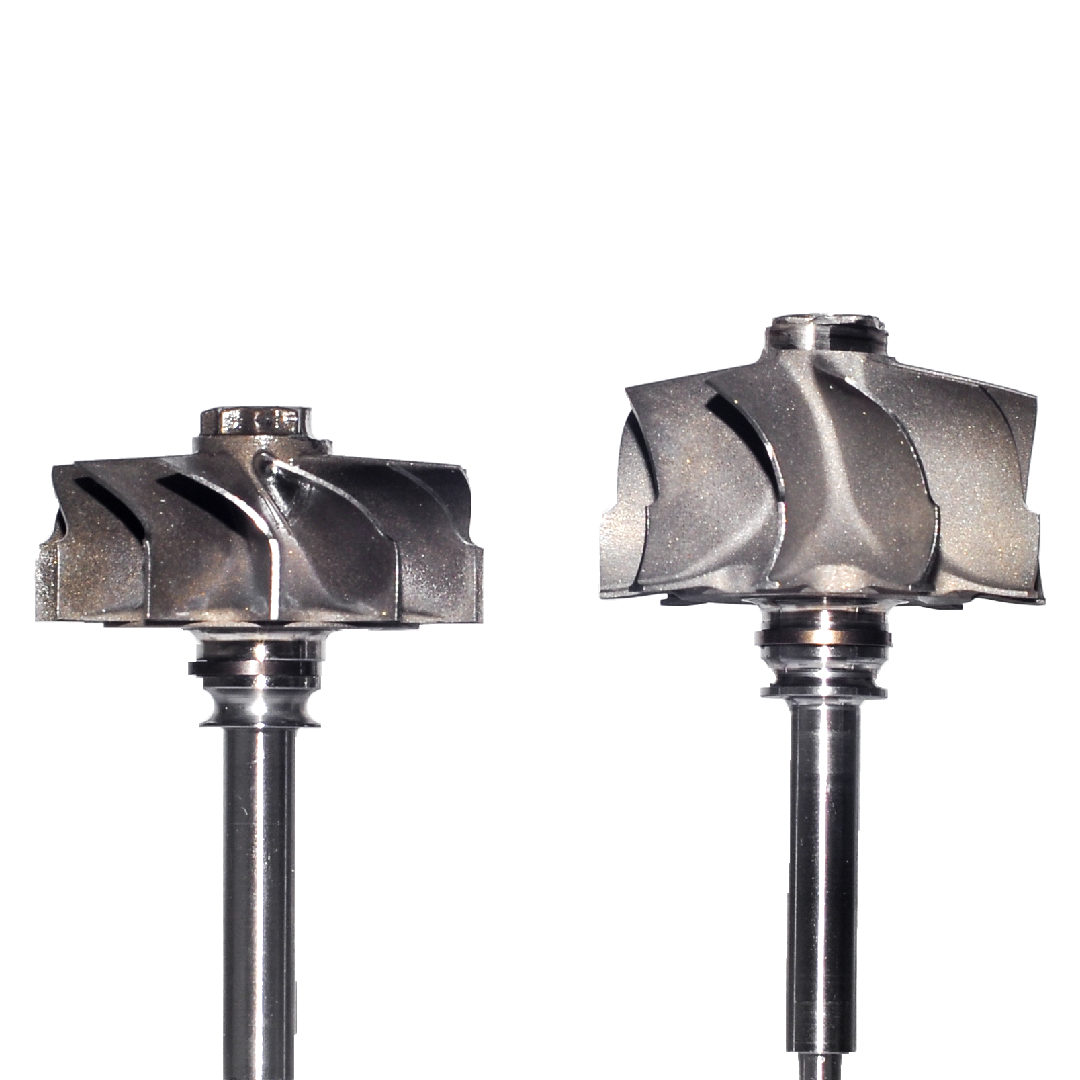

| Turbine Wheel | Factory Turbine Wheel | 9-Blade Inconel 713C Hi-Flow Turbine Wheel | 9-Blade Inconel 713C Hi-Flow Turbine Wheel |
| Thrust Bearing | 270° Thrust Bearing | Enhanced 360° Thrust Bearing | Enhanced 360° Thrust Bearing |
| Recommended Maximum Boost | Up to 14 PSI | Up to 24 PSI | Up to 24 PSI |
Boost figures are general capability references. Final boost targets should be set to suit the engine condition, fuel system, supporting modifications and ECU calibration.
Frequently Asked Questions
Will this turbo fit my vehicle?
This turbo is listed for Toyota Landcruiser Prado 150 Series and Toyota Landcruiser Prado 120 Series applications. Confirm the full chassis, year, engine and part-number details in the Vehicle Fitment Guide before ordering.
What OEM turbo numbers does this replace?
The primary OEM reference is 17201-30160. Compatible alternative references include 17201-30161 / 17201-30101 / 17201-30100.
Is this a direct bolt-on replacement?
Yes. This turbo is supplied as a direct bolt-on replacement for the listed applications, using the factory mounting locations and connections. Correct installation procedures and root-cause checks should still be completed before fitting.
What is included with the turbo?

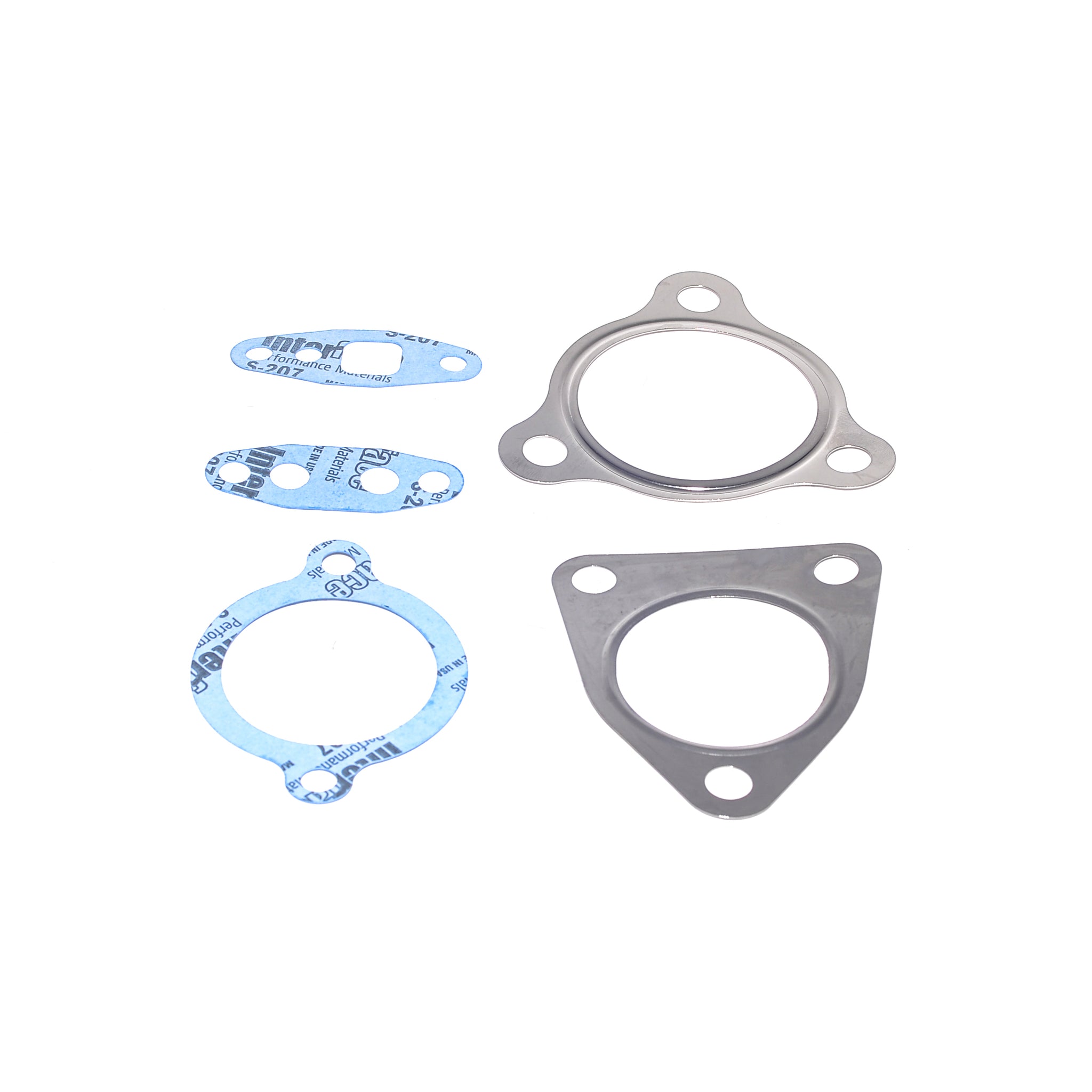

The package includes the complete turbocharger assembly, the matching actuator and an installation gasket kit.
What engineering specifications does this Stage 2 turbo use?
Compressor wheel: +4mm Billet + Slim Hub + High Blades + Extended Tips. Turbine wheel: 9-Blade Inconel 713C Hi-Flow Turbine Wheel. Thrust bearing: Enhanced 360° Thrust Bearing.
What boost level is this turbo designed to support?
This Stage 2 turbo is designed to support up to 24 PSI. Final boost targets must suit the engine condition, fuel system, supporting modifications and ECU calibration.
Does this turbo include an actuator?
Yes. A matching actuator is included with the supplied unit. Actuator type: Electronic Actuator.
Is ECU tuning required?
ECU tuning and suitable supporting modifications are recommended to achieve the intended higher-flow performance safely.
Which CCT turbo stage should I choose?
Stage 2 is intended for higher-flow performance builds with supporting modifications and suitable ECU calibration.
Use the CCT Performance Upgrade Comparison on this page to compare the available stages for this turbo family.
What warranty and technical support are included?
CCT turbochargers are backed by a 24-month Australian warranty, local technical support and post-warranty rebuild assistance subject to inspection, parts availability and warranty terms.
