Installing turbo oil flange gaskets correctly is essential for preventing oil leaks and ensuring proper turbocharger operation. Follow these steps to install them properly:
Step-by-Step Guide:
1. Preparation
- Ensure Safety:Allow the engine and turbo to cool completely to avoid burns.
- Inspect Components:Check the turbo flange and mating surfaces for damage, warping, or old gasket remnants. Replace any damaged parts.
- Clean Surfaces:Use a degreaser or brake cleaner to clean the mating surfaces of the flange. Wipe away any dirt, oil, or residue to ensure a proper seal.
2. Check the Gasket

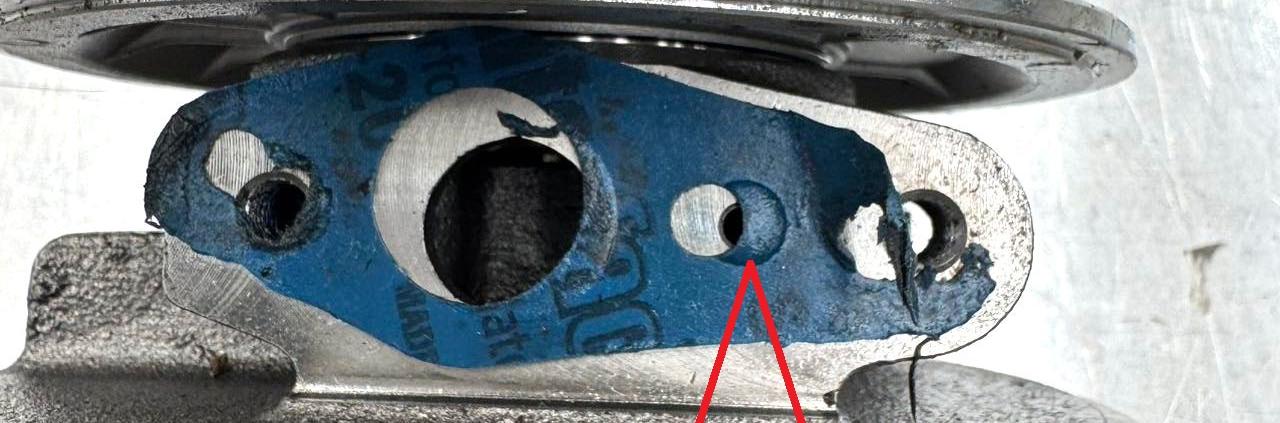

- Inspect the Gasket:Ensure the new gasket matches the turbo flange and oil line pattern.
3. Position the Gasket
- Align the gasket with the turbo flange and oil feed/return line. Ensure the bolt holes line up perfectly.
4. Apply Thread Sealant (if necessary)
- Follow Manufacturer’s Instructions:Some gaskets or bolts require a thread sealant to ensure a leak-free seal. Apply a small amount to the bolt threads if recommended.
5. Install the Bolts
- Insert the bolts through the flange and gasket. Hand-tighten them evenly to hold the gasket in place.
6. Tighten in Sequence
- Use a torque wrench to tighten the bolts in a cross-pattern or star-pattern sequence. This ensures even pressure on the gasket and prevents warping.
- Tighten to the manufacturer’s specified torque. Over-tightening can crush the gasket and cause leaks, while under-tightening may lead to insufficient sealing.
7. Inspect for Alignment
- Double-check the alignment of the flange, gasket, and oil line to ensure they are properly positioned.
8. Check for Leaks After Installation
- Start the engine and let it idle for a few minutes.
- Inspect the area for any signs of oil leakage.
- Recheck bolt torque after the engine has run and cooled down, as some materials may settle.
Tips:
- Always use a new gasket when reinstalling or replacing components.
- Avoid using sealant directly on the gasket; some gaskets are designed to seal without additional compounds.
- Use high-quality replacement parts to ensure durability.
Proper installation minimizes the risk of turbo damage and oil leaks. If you're unsure about any step, consult a service manual or seek professional assistance.
