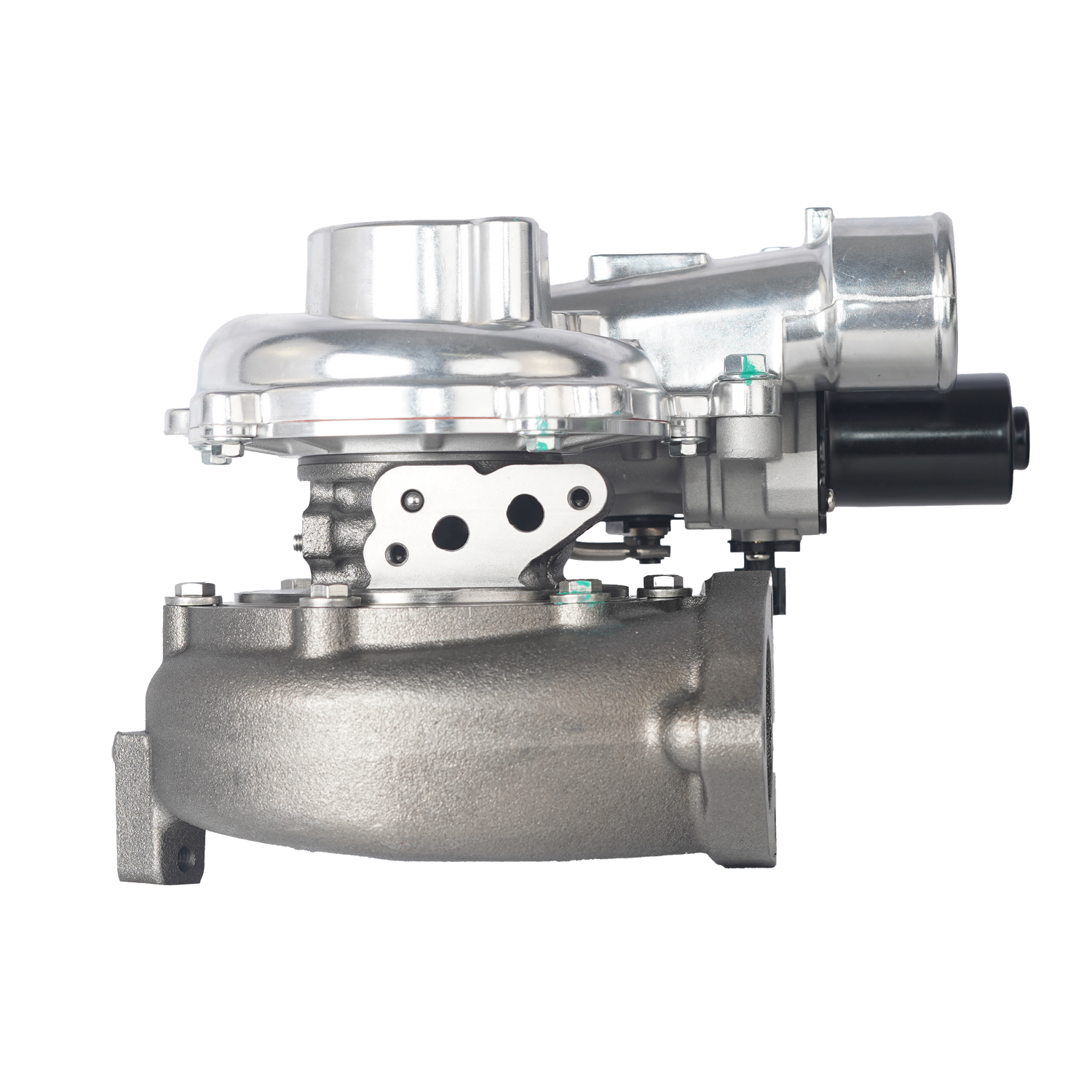

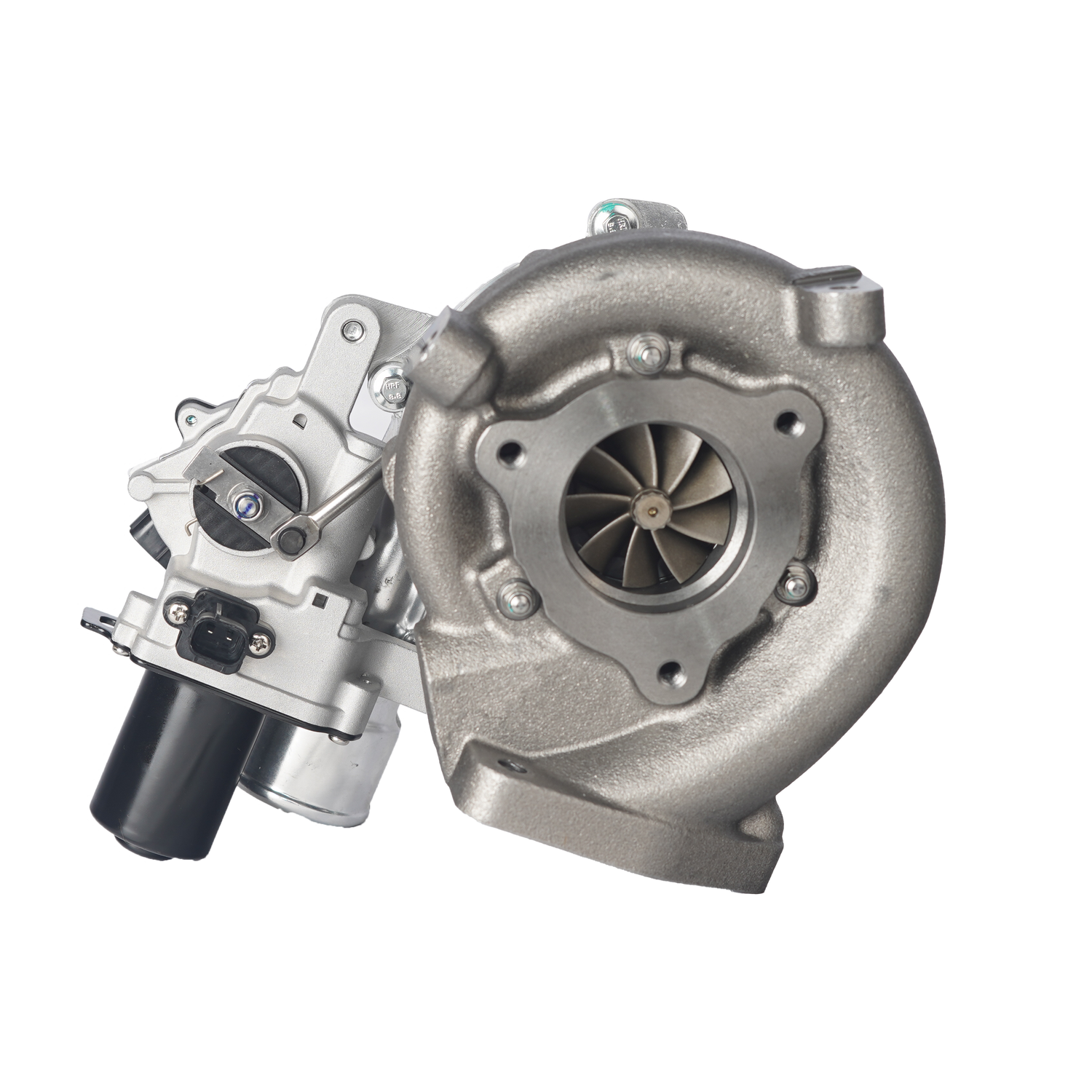

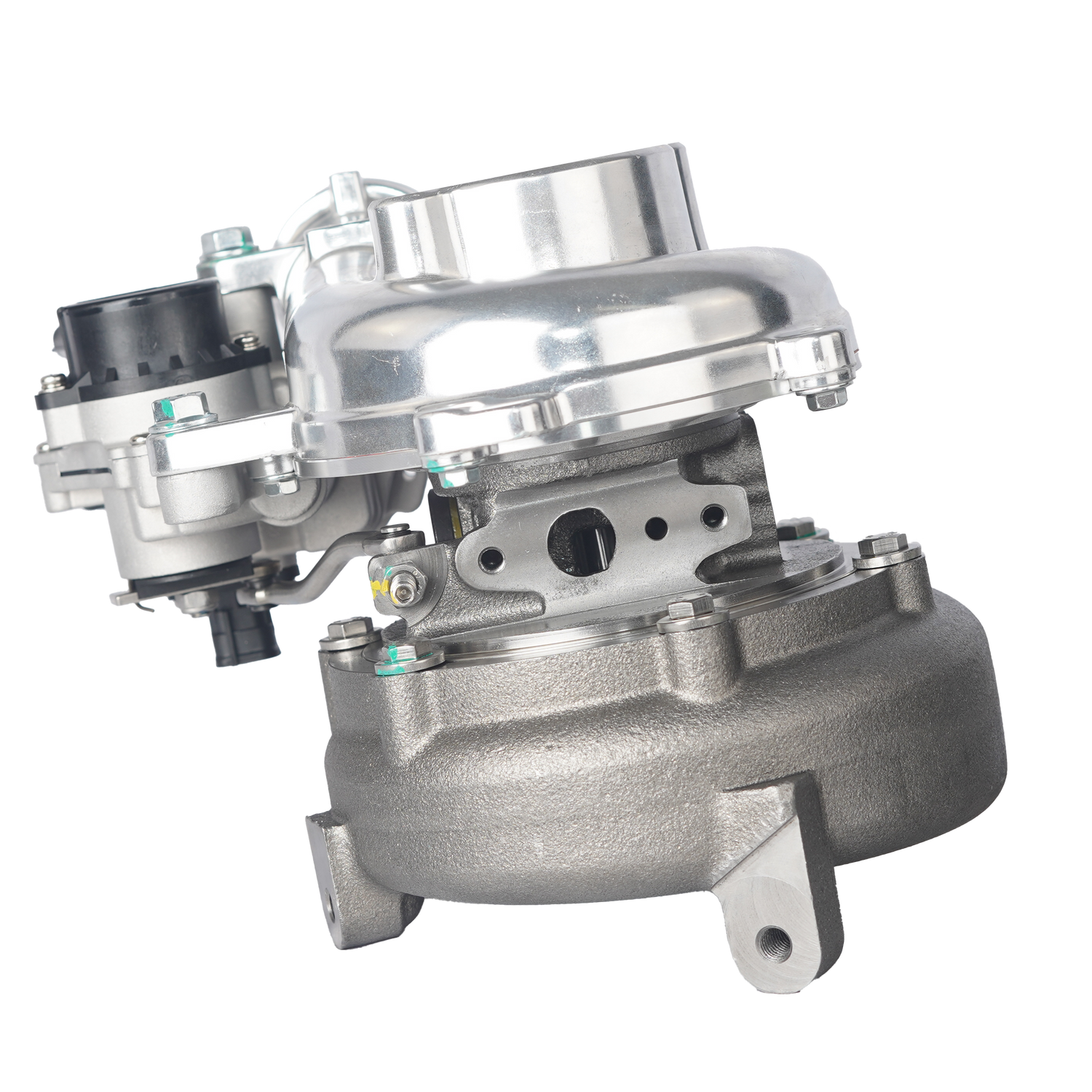

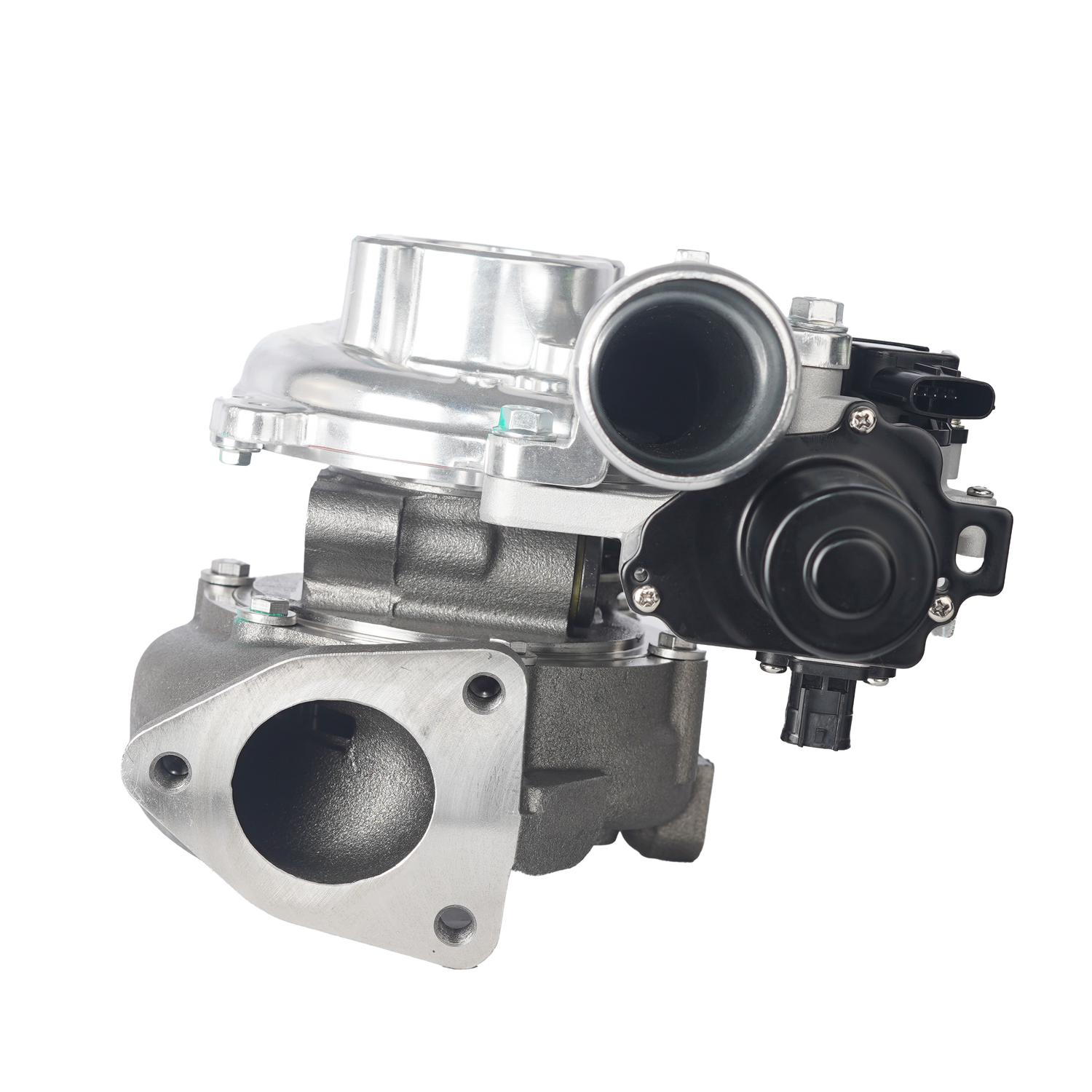

CCT Stage 1 Hi-Flow Billet Turbo Upgrade for Toyota Hilux KUN26 1KD-FTV 3.0L (17201-30110)
CCT Stage 1 Hi-Flow Billet Turbo Upgrade for Toyota Hilux KUN26 1KD-FTV 3.0L (17201-30110) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Local Pickup Available
Local Pickup Available
Address:
Factory 1, 107 Wells Road, Chelsea Heights VIC 3196
Business hours:
8:30am-5:00pm Mon-Fri
(Excluding Public holidays)
Delivery and Shipping
Delivery and Shipping
- Shipping costs are calculated in the checkout.
- Free standard shipping for all orders over $350 via Australia Post
(Only available to Australian residents) - Express shipping is available and calculated in the checkout
- International shipping also available
Australian Hassle Free Warranty
Australian Hassle Free Warranty
All CCT Stage1 & Stage2 turbochargers come with a 24 Month Warranty and are backed by our Lifetime Rebuild Guarantee.
CCT Stage 1 Hi-Flow Billet Turbo Upgrade for Toyota Hilux KUN26 1KD...
CCT Stage1 Turbo
- Faster Spool Time
- Direct bolt on upgrade, no tuning or modifications required.
- High Speed VSR Balanced
- Flow Tested
- Oil Leak Tested
- Built in Melbourne Australia
- 24 Month Australian Hassle-Free Warranty
- Lifetime Turbo Support
Description
Description
Boost Your Hilux Performance with CCT Stage 1 Technology
Upgrade your Toyota Hilux 1KD-FTV with the ultimate performance and reliability solution. Our CCT Stage 1 Turbocharger is engineered right here in Melbourne, Australia, specifically for the harsh conditions of the AU 4x4 market.
🚀 Key Performance Highlights
- Performance Design MFS Billet Compressor Wheel: Lighter and stronger than factory cast wheels, providing faster spool time and increased airflow.
- 9-Blade Inconel 713C Turbine: Our hybrid 9-blade design fixes the notorious OEM chipping issue, allowing for higher EGT resistance and better flow.
- Increased Boost Capacity: Safe and reliable operation up to 21 PSI (Factory is ~13 PSI).
- Australian Built & Calibrated: Each unit is high-speed VSR balanced and air-flow calibrated in-house in Melbourne.
- Direct Bolt-On: 100% fitment compatibility with no tuning or modifications required.
🛠️ Turbocharger Specifications
| Turbo Model | CT16V / CT12V |
| Part Number | 9B001 / TC1VET-S0011B / TC1VETS0011B / TC1VET-S0015B |
| OEM Part Number | 17201-30110 / 17201-0L040 / 17201-0L041 / 17201-0L042 |
| Cooling Type | Water and Oil Cooled |
| Actuator | Electronic Actuator Included |

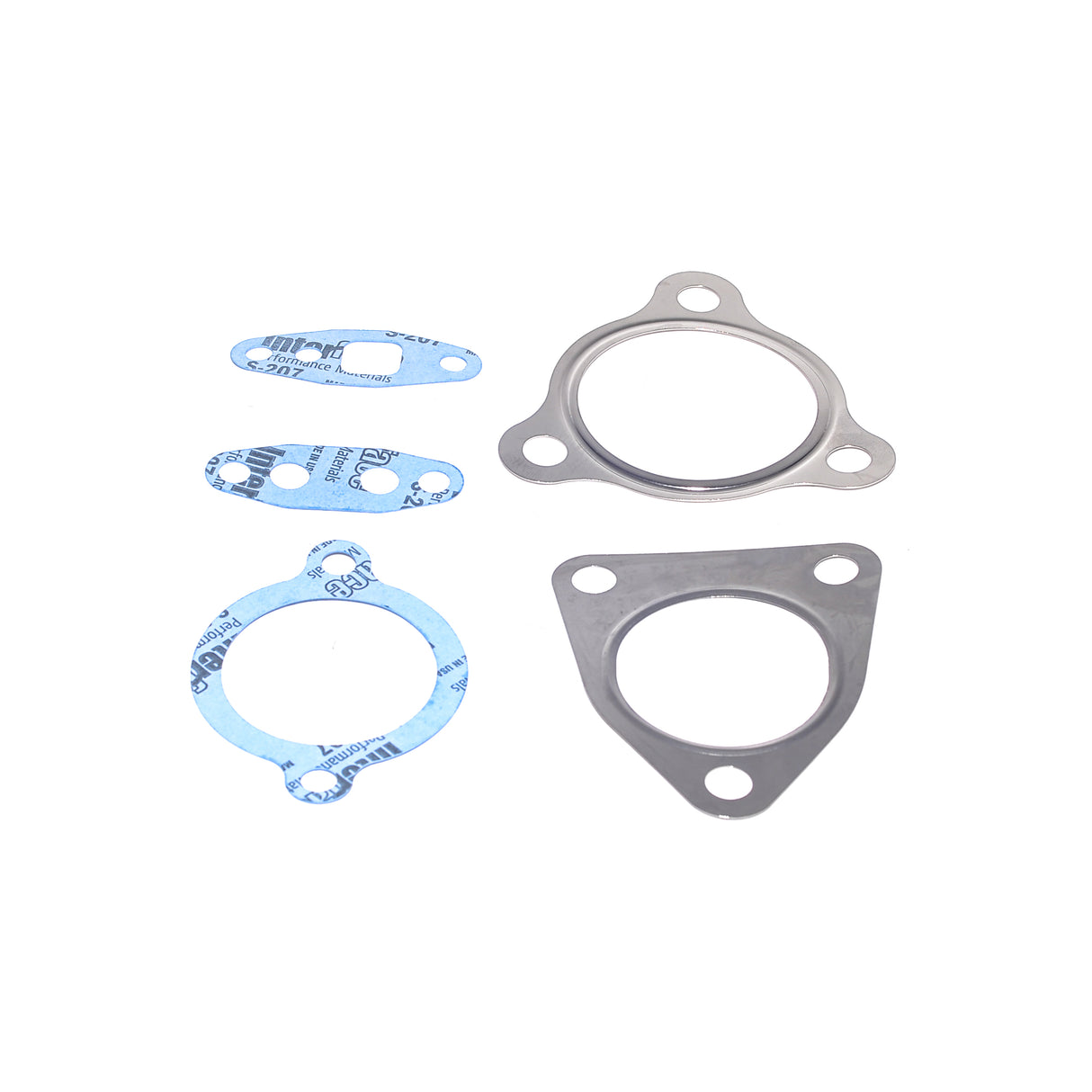

| Gaskets | Complete Free Gasket Set Included |
🚐 Vehicle Fitment Guide
| Vehicle | Toyota Hilux N70 (KUN16R / KUN26R) |
| Year Range | 2005 - 2015 |
| Engine | 1KD-FTV 3.0L D-4D Diesel |
| Fitment Note | If your Toyota Hilux is fitted with the 1KD-FTV 3.0L diesel engine, this is the correct turbocharger for your vehicle. |
⚖️ Comparison: OEM vs. CCT Stage 1
| Feature | OEM Factory Turbo | CCT Stage 1 Upgrade |
|---|---|---|
| Compressor Wheel | Standard Cast Aluminum | Performance Design MFS Forged Billet (Lighter & Stronger) |
| Turbine Wheel | 11-Blade (Prone to chipping) | 9-Blade Inconel 713C (Hi-Flow Design) |
| Thrust Bearing | Factory Bearing | Factory Bearing |
| Max Safe Boost | ~13 PSI | Up to 21 PSI |
❓ Frequently Asked Questions (FAQ)
1. Will this turbo fit my Toyota Hilux 1KD-FTV?
Yes. This turbocharger is designed for Toyota Hilux models equipped with the 1KD-FTV 3.0L D-4D diesel engine from 2005-2015. Common vehicle codes include KUN26R (4WD) and KUN16R (2WD).
2. Is this a direct bolt-on replacement?
Yes. This turbocharger is a direct bolt-on replacement for the factory unit. it connects to the original exhaust manifold, intake system, and oil lines without any modification required.
3. Does this turbo come with an actuator and gaskets?
Yes, it comes complete with a pre-calibrated actuator and a free gaskets set for installation.
4. Does this turbo require ECU tuning?
No, it does not require ECU tuning for standard operation. However, you can achieve optimal performance when paired with appropriate ECU tuning.
5. What is the maximum boost pressure for this turbo?
The recommended maximum boost pressure is 21 PSI.
6. What should I replace when installing a new turbocharger?
For maximum reliability, we recommend replacing or servicing the following: Engine oil and oil filter, Air filter, Turbo oil feed line (check for restrictions), Turbo gaskets/seals, and inspecting/cleaning the intercooler and intake piping.
7. Can you help verify compatibility before I order?
Certainly. If you are unsure, simply provide your VIN, registration number, or a photo of your turbo's identification plate, and our team will assist with verification.
8. Why do Toyota Hilux 1KD turbochargers typically fail?
Common causes include oil starvation, contaminated oil, blocked feed lines, excessive EGTs, or foreign object damage. Identifying the root cause is essential before installing a replacement.
9. What is the difference between a 9-blade and an 11-blade turbine?
The 9-blade design increases exhaust flow and significantly reduces Exhaust Gas Temperatures (EGTs). It also resolves the common OEM issue of blade chipping due to its superior Inconel 713C construction.
10. Will this upgrade improve my towing performance?
Yes, the faster spool time and improved torque delivery make it much easier to tow caravans or heavy loads.
11. What is a Stage 1 Billet Wheel, and what are its benefits?
The Stage 1 billet compressor wheel is CNC-machined from forged aluminum, making it both lighter and stronger than the factory cast wheel. Featuring a slim hub design, taller blade profile, and extended blade tips, it delivers increased airflow, faster boost response, and improved overall durability.
12. Where are these turbochargers manufactured?
All CCT Stage 1 units are assembled, balanced, and calibrated in-house in Melbourne, Australia.
13. How long is the warranty period?
We provide a 24-Month Australian Hassle-Free Warranty on all our turbochargers.
14. What are the shipping options?
We offer fast Australia-wide shipping via Australia Post, including Express Post options for urgent repairs.
CCT Lifetime Rebuild Guarantee
CCT Lifetime Rebuild Guarantee
This turbocharger is backed by our Lifetime Rebuild Guarantee.
If your turbo ever requires servicing or a rebuild, we’ll recondition it at cost price (parts + labour only)—for the life of the unit.
If the turbo is beyond repair, a discounted replacement option will be offered.
Valid for the original purchaser with proof of purchase.
For more info CLICK HERE
Please confirm part numbers prior to ordering.
If you are unsure, feel free to contact us.
