This high-quality standard replacement turbocharger comes with a 12-Month Replacement Warranty, fully backed and processed by CCT Turbo right here in Melbourne.
While these units are produced by leading international manufacturers, we provide the ultimate layer of protection for our Australian customers. Instead of dealing with overseas factories, you get direct, local technical support and a hassle-free warranty process managed by our specialist engineering team.
Your peace of mind is guaranteed with Australian-based service and immediate local support.
Brand New Billet Turbo Charger To Suit Toyota Hilux N70 KUN26 D4D 1...
Premium Quality Standard Turbo
Balanced at extreme RPMs to ensure vibration-free longevity.
Precisely flow-calibrated to match original factory power specs.
Full Australian backed replacement warranty for absolute peace of mind.

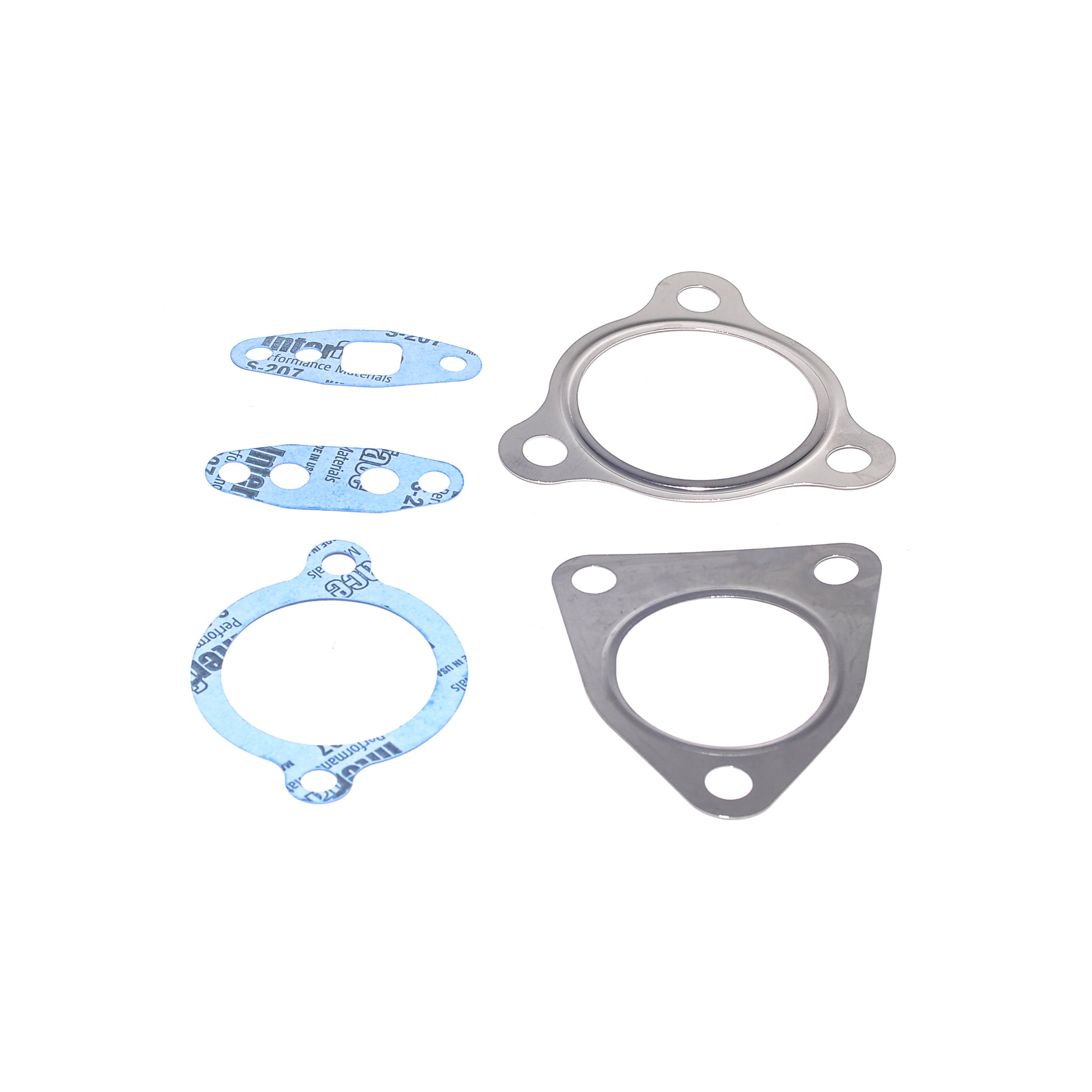

Gaskets & seals provided for a leak-free install. (As Photo Shows)
Direct factory bolt-on replacement. No modifications required.
Direct technical assistance from our expert Melbourne team.
Description
Description

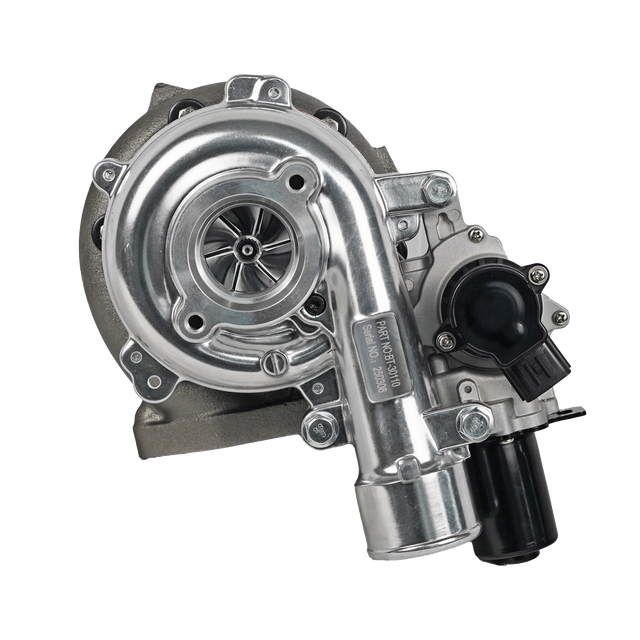

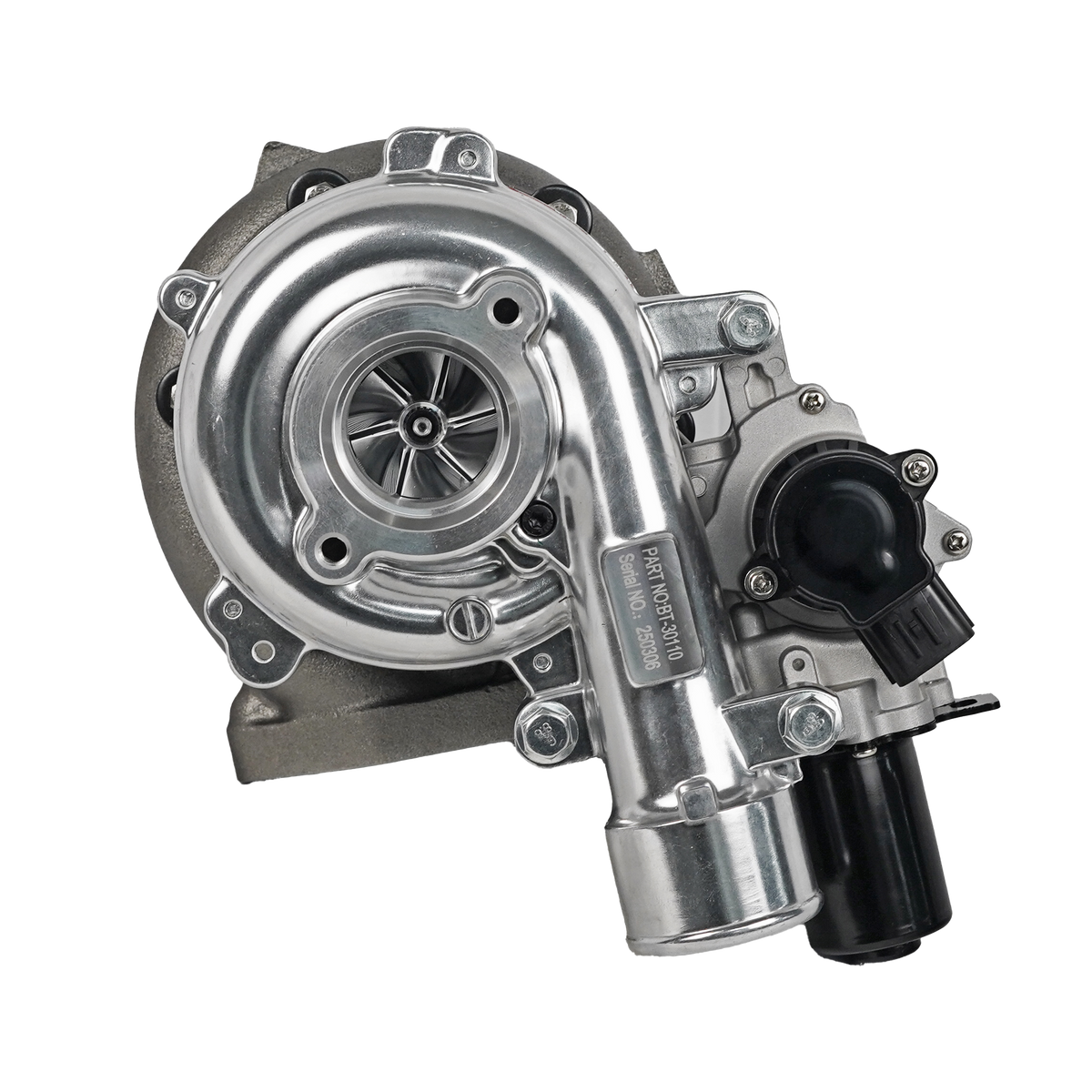

Premium Quality Replacement Turbo to Suit Toyota Hilux 1KD-FTV
Restore your Toyota Hilux N70's power with our high-quality standard replacement turbocharger. Built to meet original factory specifications, this unit provides a reliable and durable solution for your engine repair. Engineered for absolute fitment precision and consistent daily performance.
🚀 Key Quality Highlights
- VSR High-Speed Balanced: Every unit is dynamically balanced at high speed (VSR) to eliminate vibration and ensure a long, reliable service life for your vehicle.
- Precisely Airflow Calibrated: Each turbo is flow-calibrated to match the original factory boost levels and power output, ensuring 100% engine compatibility.
- 12-Month Australian Warranty: Backed by a full 12-month Australian replacement warranty, with direct support and processing handled by CCT Turbo in Melbourne.
- 100% Direct Bolt-On Fitment: A true factory replacement design. All mounting points, oil feed lines, and flanges align perfectly with no modifications required.
- Proven Daily Reliability: Constructed using high-grade materials to survive the tough Australian environment, providing a perfect balance of value and durability.
🛠️ Turbocharger Specifications
| Turbo Model | CT16V / CT12V |
| Part Number | 9B001 / TC1VET-S0011B / TC1VETS0011B / TC1VET-S0015B |
| OEM Part Number | 17201-30110 / 17201-0L040 / 17201-0L041 / 17201-0L042 |
| Cooling Type | Water and Oil Cooled |
| Actuator | Electronic Stepper Motor Included |
| Gaskets | Free Gasket Set Included (As Photo Shows) |
🚐 Vehicle Fitment Guide ▼
| Vehicle | Year Range | Engine | Fitment Note |
|---|---|---|---|
| Toyota Hilux N70 (KUN16R / KUN26R) | 2005 - 2015 | 1KD-FTV 3.0L D-4D Diesel | If your Toyota Hilux is fitted with the 1KD-FTV 3.0L diesel engine, this is the correct turbocharger. |
🛡️ CCT Performance Upgrade Matrix ▼
| Technical Specs | OEM Standard | CCT Stage 1 Plus | CCT Stage 2 |
|---|---|---|---|
| Compressor Wheel | Standard Cast Aluminum | 2mm Bigger Performance Design Billet | 4mm Bigger Performance Design Billet |
| Turbine Wheel | 11-Blade (Prone to chipping) | 9-Blade Inconel 713C (Hi-Flow Design) | 9-Blade Inconel 713C (Hi-Flow Design) |
| Thrust Bearing | Factory 270 Degree Thrust Bearing | 360 Degree Thrust Bearing | 360 Degree Thrust Bearing |
| Max Safe Boost | Up to 14 PSI | Up to 24 PSI | Up to 24 PSI |
❓ Frequently Asked Questions ▼
1. Will this turbo fit my Toyota Hilux KUN26 1KD-FTV 3.0L?
Yes. This turbocharger is a 100% direct fit replacement for all Toyota Hilux N70 models (KUN16R & KUN26R) equipped with the 3.0L 1KD-FTV turbo diesel engine produced between 2005 and 2015.
2. Is this an original Toyota genuine turbo or a high-quality replacement?
This is a premium-grade aftermarket replacement turbocharger engineered to meet original factory specifications. It offers reliable, factory-level performance at a much more competitive price point than a dealer-supplied unit.
3. Does it come with the electronic stepper motor actuator?
Yes, this turbo comes 100% complete with a brand new, pre-calibrated electronic stepper motor actuator. It is a full assembly, meaning you don't need to reuse any parts from your old unit.
4. Do I need to perform any tuning or ECU remapping after installation?
No. Since this is a standard replacement unit built to factory specifications, it is designed to work seamlessly with your vehicle's original ECU settings. No tuning or modifications are required.
5. Are these turbochargers balanced before sale?
Absolutely. Every unit undergoes rigorous high-speed VSR (Vibration Sorting Rig) dynamic balancing to ensure it operates smoothly without vibration, which is critical for the long-term life of your engine.
6. What is the warranty on this standard replacement turbo?
We provide a 12-Month Australian Replacement Warranty. Because we are based in Melbourne, we handle all technical support and warranty claims locally for a faster, hassle-free experience.
7. Is a gasket kit included with the turbo?
Yes, this turbo comes with a free set of gaskets as photo shows. You will have the essential seals needed for a professional installation included in every box.
8. How can I confirm if my old turbo part number matches this one?
This turbo replaces Toyota part numbers 17201-30110, 17201-0L040, 17201-0L041, and 17201-0L042. If you are unsure, please send us your VIN, and our team will verify the fitment for you.
9. Why should I buy from CCT Turbo instead of a random seller on eBay?
CCT Turbo is a specialist Australian turbo company. We exclusively source our standard series from the top 3 global aftermarket turbo manufacturers, ensuring significantly higher build quality than unknown factories. Plus, you get direct access to our Melbourne-based technical support team.
10. Do I need to replace the oil feed line during installation?
Highly recommended. Carbon buildup in the original oil feed pipe is a leading cause of turbo failure. Replacing the oil line with the new turbo ensures clean lubrication and protects your investment.
Please confirm part numbers prior to ordering.
If you are unsure, feel free to contact us.
