CCT Stage 1 Plus Hi-Flow Billet Turbo Upgrade for Toyota Hilux KUN26 1KD-FTV 3.0L (17201-30110)
CCT Stage 1 Plus Hi-Flow Billet Turbo Upgrade for Toyota Hilux KUN26 1KD-FTV 3.0L (17201-30110) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Local Pickup Available
Local Pickup Available
Address:
Factory 1, 107 Wells Road, Chelsea Heights VIC 3196
Business hours:
8:30am-5:00pm Mon-Fri
(Excluding Public holidays)
Delivery and Shipping
Delivery and Shipping
- Shipping costs are calculated in the checkout.
- Free standard shipping for all orders over $350 via Australia Post
(Only available to Australian residents) - Express shipping is available and calculated in the checkout
- International shipping also available
Australian Hassle Free Warranty
Australian Hassle Free Warranty
All CCT Stage1 & Stage2 turbochargers come with a 24 Month Warranty and are backed by our Lifetime Rebuild Guarantee.
CCT Stage 1 Plus Hi-Flow Billet Turbo Upgrade for Toyota Hilux KUN2...
🛡️ CCT Quality Standards
Description
Description
Boost Your Hilux Performance with CCT Stage 1 Plus Technology
Upgrade your Toyota Hilux 1KD-FTV with the ultimate performance and reliability solution. Our CCT Stage 1 Plus Turbocharger is engineered right here in Melbourne, Australia, specifically for the harsh conditions of the AU 4x4 market.
🚀 Key Performance Highlights

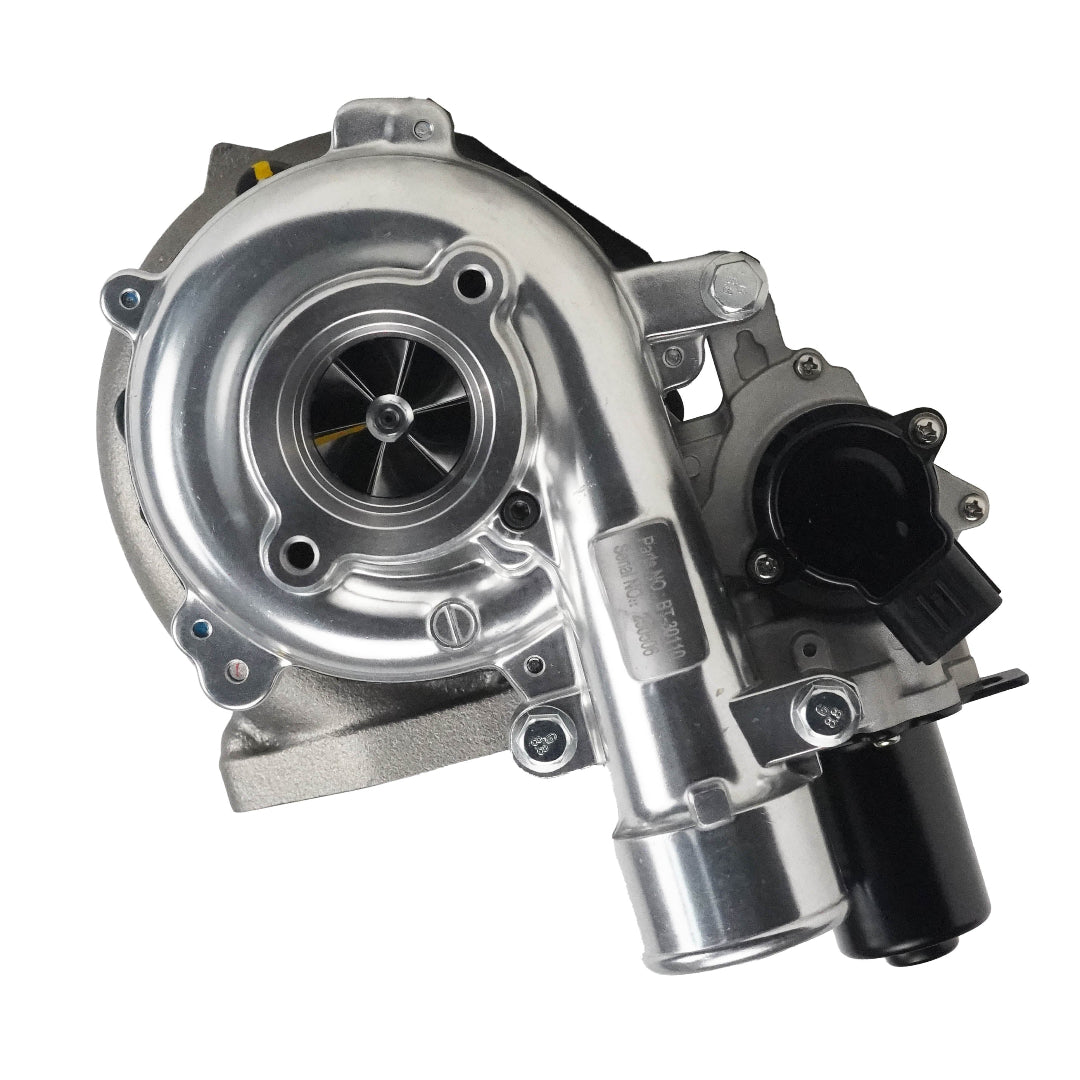

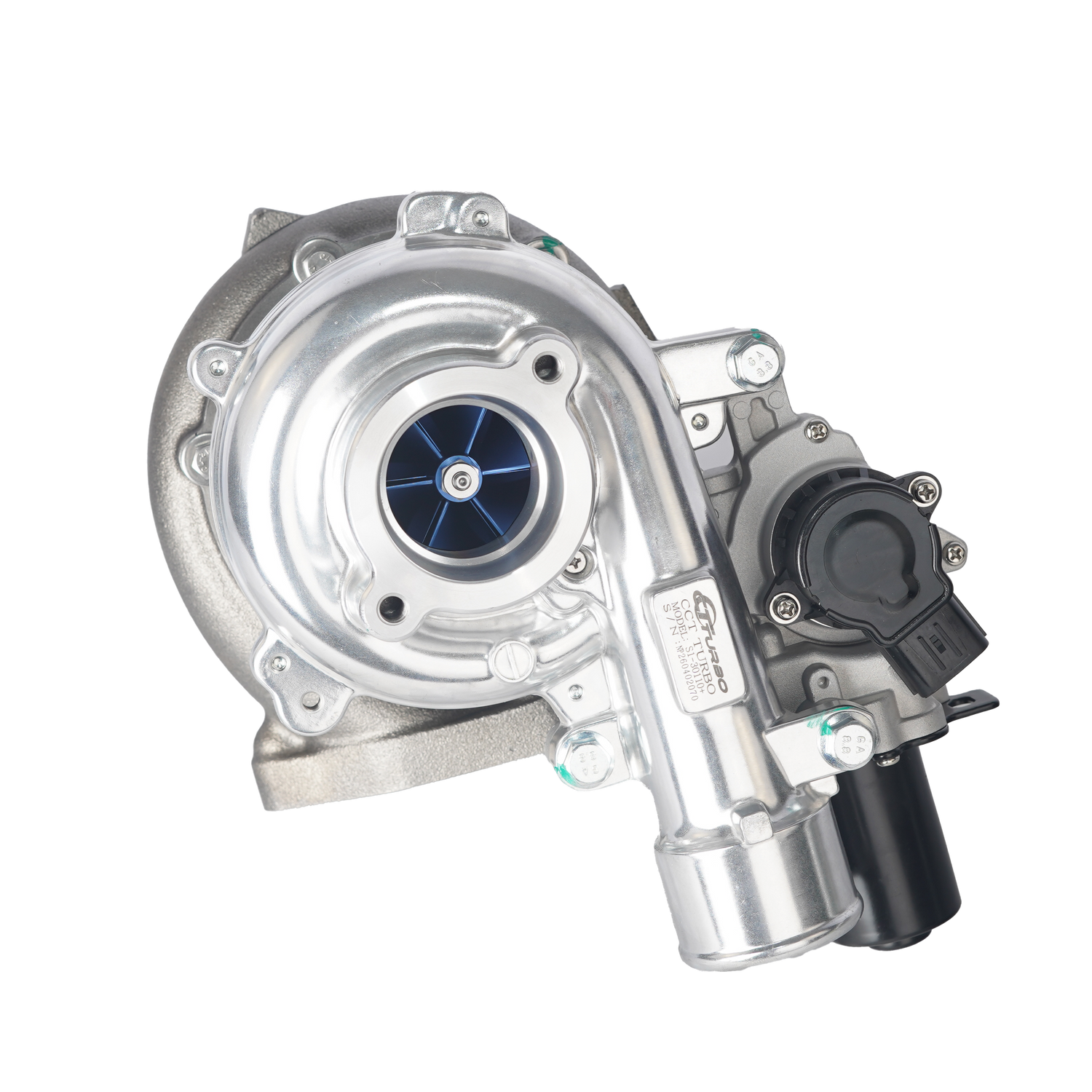

- Performance Design MFS Billet Compressor Wheel: Featuring a compressor wheel 2mm larger than OEM, this upgraded billet design delivers increased airflow, faster spool response, and improved efficiency while maintaining factory-compatible tuning requirements.

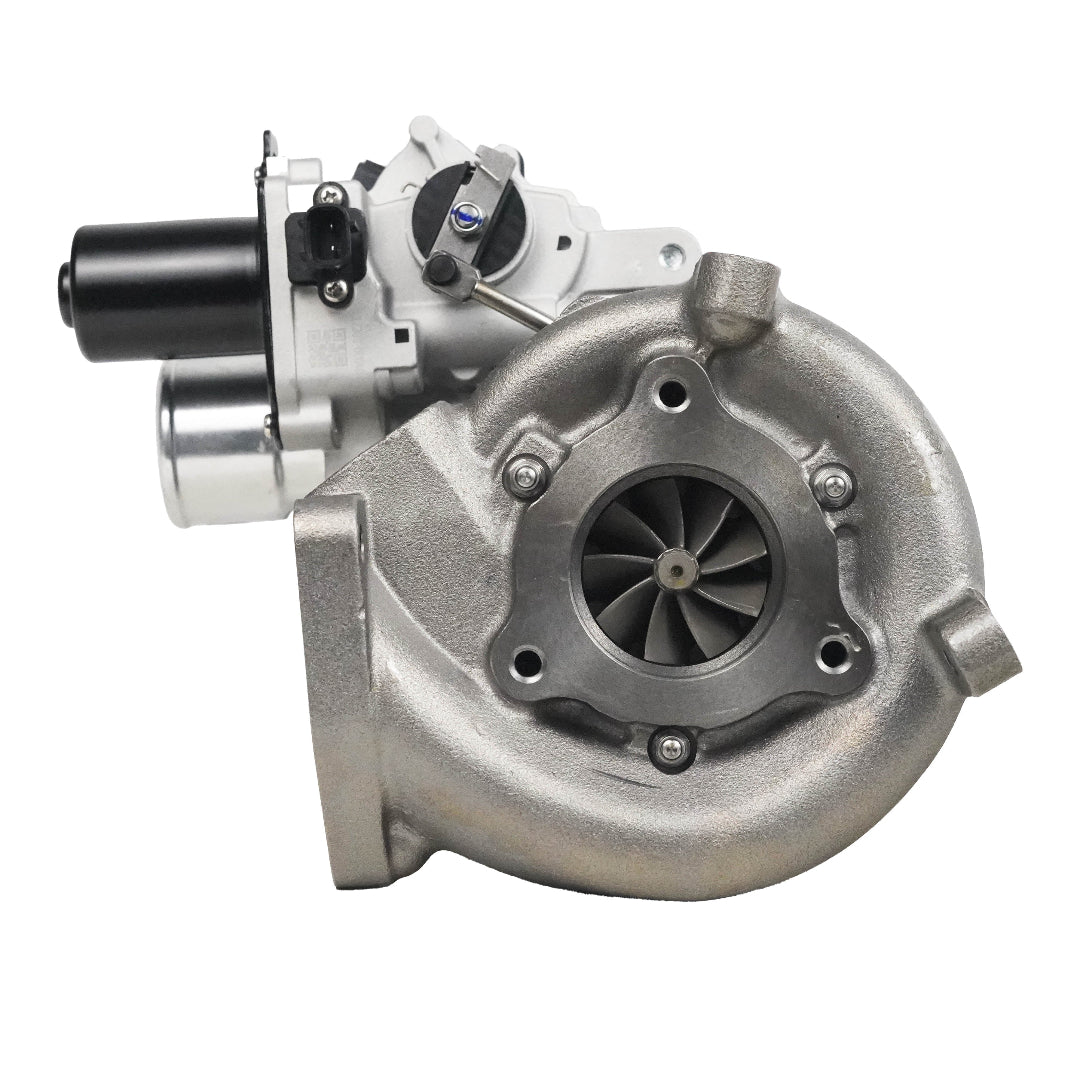

- 9-Blade Inconel 713C Turbine: Our hybrid 9-blade design fixes the notorious OEM chipping issue, allowing for higher EGT resistance and better flow.
- Increased Boost Capacity: Safe and reliable operation up to 24 PSI (Factory is ~14 PSI).
- Australian Built & Calibrated: Each unit is high-speed VSR balanced and air-flow calibrated in-house in Melbourne.
- Direct Bolt-On: 100% fitment compatibility with no tuning or modifications required.
🛠️ Turbocharger Specifications
| Turbo Model | CT16V / CT12V |
| Part Number | 9B001 / TC1VET-S0011B / TC1VETS0011B / TC1VET-S0015B |
| OEM Part Number | 17201-30110 / 17201-0L040 / 17201-0L041 / 17201-0L042 |
| Cooling Type | Water and Oil Cooled |

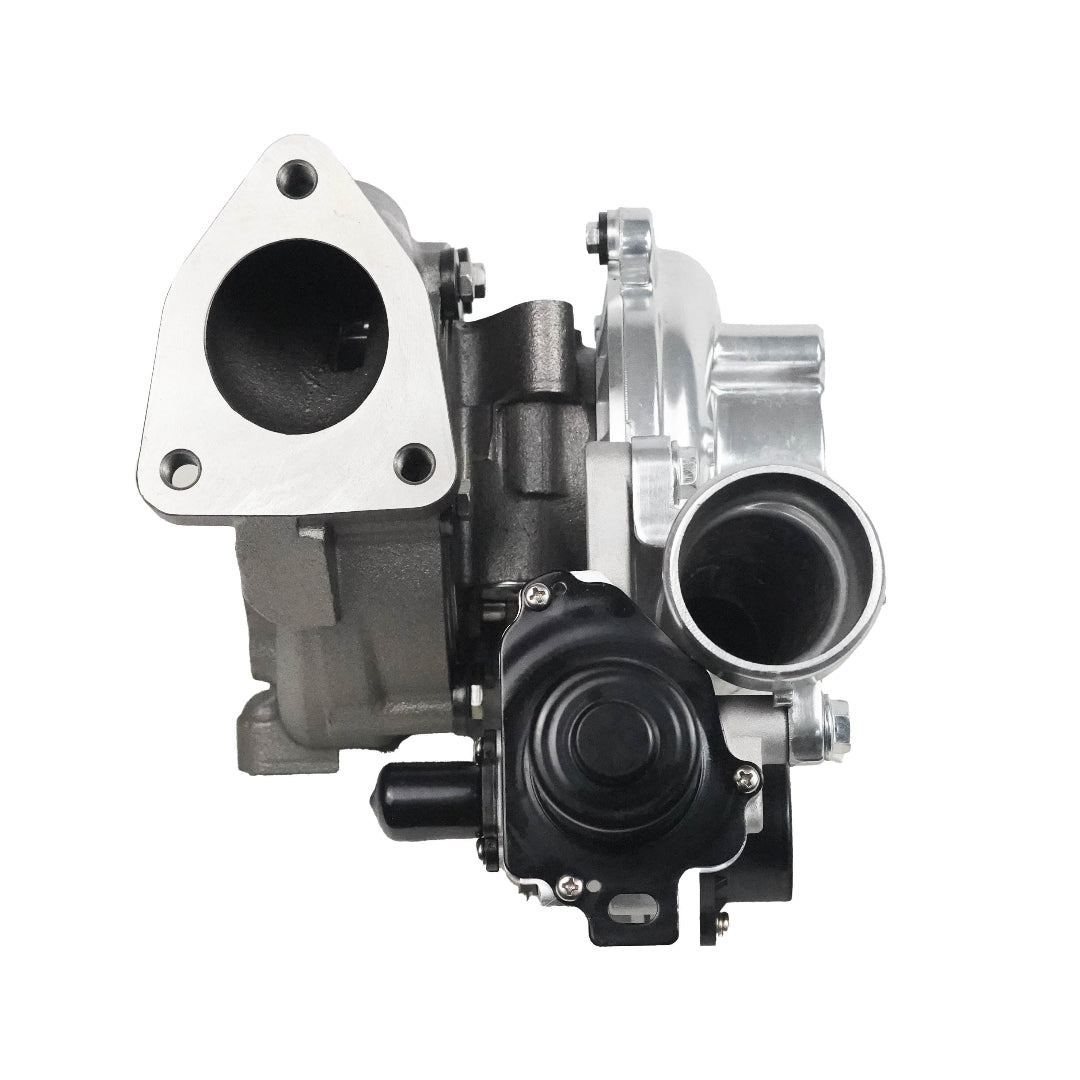

| Actuator | Electronic Actuator Included |

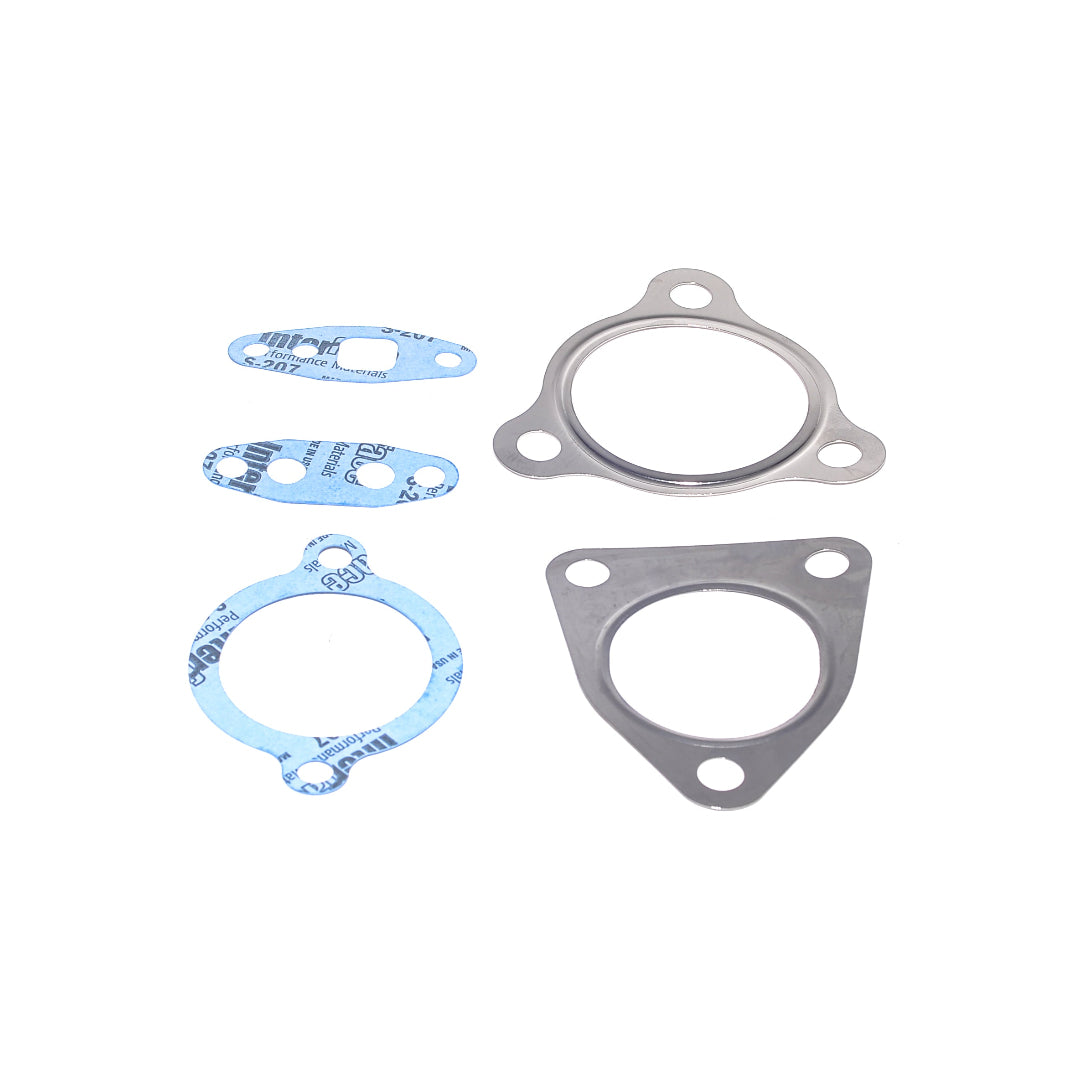

| Gaskets | Complete Free Gasket Set Included |
🚐 Vehicle Fitment Guide ▼
| Vehicle | Year Range | Engine | Fitment Note |
|---|---|---|---|
| Toyota Hilux N70 (KUN16R / KUN26R) | 2005 - 2015 | 1KD-FTV 3.0L D-4D Diesel | If your Toyota Hilux is fitted with the 1KD-FTV 3.0L diesel engine, this is the correct turbocharger. |
🛡️ CCT Performance Upgrade Matrix ▼
| Technical Specs | OEM Standard | CCT Stage 1 Plus | CCT Stage 2 |
|---|---|---|---|
| Compressor Wheel | Standard Cast Aluminum | 2mm Bigger Performance Design Billet | 4mm Bigger Performance Design Billet |
| Turbine Wheel | 11-Blade (Prone to chipping) | 9-Blade Inconel 713C (Hi-Flow Design) | 9-Blade Inconel 713C (Hi-Flow Design) |
| Thrust Bearing | Factory 270 Degree Thrust Bearing | 360 Degree Thrust Bearing | 360 Degree Thrust Bearing |
| Max Safe Boost | Up to 14 PSI | Up to 24 PSI | Up to 24 PSI |
❓ Frequently Asked Questions ▼
1. Will this turbo fit my Toyota Hilux 1KD-FTV?
Yes. This turbocharger is designed for Toyota Hilux models equipped with the 1KD-FTV 3.0L D-4D diesel engine from 2005-2015. Common vehicle codes include KUN26R (4WD) and KUN16R (2WD).
2. Is this a direct bolt-on replacement?
Yes. This turbocharger is designed as a direct bolt-on replacement for the factory unit. It connects to the original exhaust manifold, intake system, and oil lines without any modification required.
3. Does this turbo come with an actuator and gaskets?
Yes, it comes complete with a pre-calibrated actuator and a free gaskets set for installation.
4. What is the difference between a 9-blade and an 11-blade turbine?
The 9-blade design increases exhaust flow and significantly reduces Exhaust Gas Temperatures (EGTs). It also resolves the common OEM issue of blade chipping due to its superior Inconel 713C construction.
5. Will this upgrade improve my towing performance?
Yes, the faster spool time and improved torque delivery make it much easier to tow caravans or heavy loads.
6. What is the maximum boost pressure for this turbo?
The recommended maximum safe boost pressure is 21 PSI for Stage 1, while both Stage 1 Plus and Stage 2 upgrades are engineered to safely handle up to 24 PSI.
7. Does this turbo require ECU tuning?
No, it does not require ECU tuning for standard operation. However, you can achieve optimal performance when paired with appropriate ECU tuning.
8. What should I replace when installing a new turbocharger?
For maximum reliability, we recommend replacing or servicing the following: Engine oil and oil filter, Air filter, Turbo oil feed line (check for restrictions), Turbo gaskets/seals, and inspecting/cleaning the intercooler and intake piping.
9. Why do Toyota Hilux 1KD turbochargers typically fail?
Common causes include oil starvation, contaminated oil, blocked feed lines, excessive EGTs, or foreign object damage. Identifying and correcting the root cause is essential before installing a replacement.
Please confirm part numbers prior to ordering.
If you are unsure, feel free to contact us.
