CCT Stage 1 Turbo Charger To Suit Toyota Hilux / Prado / Fortuner 2.8L MY15-20 17201-11080 1GD-FTV
Pickup available at CCT Turbo
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
Address:
Factory 1, 107 Wells Road, Chelsea Heights VIC 3196
Business hours:
8:30am-5:00pm Mon-Fri
(Excluding Public holidays)
Delivery and Shipping
Delivery and Shipping
- Shipping costs are calculated in the checkout.
- Free standard shipping for all orders over $350 via Australia Post
(Only available to Australian residents) - Express shipping is available and calculated in the checkout
- International shipping also available
Australian Hassle Free Warranty
Australian Hassle Free Warranty
All CCT Stage1 & Stage2 turbochargers come with a 24 Month Warranty and are backed by our Lifetime Rebuild Guarantee.
CCT Stage 1 Turbo Charger To Suit Toyota Hilux / Prado / Fortuner 2...
CCT Quality Standards
Product Overview
CCT Stage 1 Turbocharger Upgrade for Toyota Applications
The CCT Stage 1 Turbocharger Upgrade is engineered for Toyota Hiace H300, Toyota Hilux N80, Toyota Landcruiser Prado J150 and other compatible Toyota applications powered by the 1GD-FTV 2.8L engine.
Designed as a responsive daily-performance upgrade, the CCT Stage 1 improves airflow and usable response while retaining near-OEM drivability, fitment and installation characteristics.
Engineering upgrades include Billet + Slim Hub + High Blades + Extended Tips, combined with Factory Turbine Wheel and 360° Thrust Bearing . Together, these changes are designed to improve compressor efficiency, mid-range response and durability under increased load, with a listed boost capability of up to 19 PSI.
Complete technical specifications and vehicle compatibility are provided below, together with a performance comparison where available.
Turbocharger Specifications
Vehicle Fitment Guide
Check the vehicle, chassis, year and engine details below before ordering.
| Vehicle | Chassis / Series | Year Range | Engine | Fitment Notes |
|---|---|---|---|---|
| ToyotaHiace Toyota Hiace H300 1GD-FTV 11080 | H300 GDH300R / GDH320R / GDH322R | 2019–2020 | 1GD-FTV 2.8L | |
| ToyotaHilux Toyota Hilux N80 1GD-FTV 11080 | N80 GUN123R / GUN126R / GUN136R | 2015–2020 | 1GD-FTV 2.8L | |
| ToyotaLandcruiser Prado Toyota Landcruiser Prado J150 1GD-FTV 11080 | J150 GDJ150R | 2015–2020 | 1GD-FTV 2.8L | |
| ToyotaFortuner Toyota Fortuner AN150 1GD-FTV 11080 | AN150 GUN156R | 2015–2020 | 1GD-FTV 2.8L |
CCT Performance Upgrade Comparison
Compare the available CCT turbo upgrade stages for this turbo family. Select a stage heading to view the matching product.
| Technical Specification | Standard Turbo OEM Replacement | Stage 1 Daily PerformanceCurrent |
|---|---|---|
| Compressor Wheel | Factory Billet Compressor Wheel | Billet + Slim Hub + High Blades + Extended Tips |
| Turbine Wheel | Factory Turbine Wheel | Factory Turbine Wheel |
| Thrust Bearing | 360° Thrust Bearing | 360° Thrust Bearing |
| Recommended Maximum Boost | Up to 16 PSI | Up to 19 PSI |
Boost figures are general capability references. Final boost targets should be set to suit the engine condition, fuel system, supporting modifications and ECU calibration.
Frequently Asked Questions
Will this turbo fit my vehicle?
This turbo fits multiple compatible vehicle applications. Refer to the Vehicle Fitment Guide below and confirm the chassis code, production year, engine code and existing turbo part number before ordering.
What OEM turbo numbers does this replace?
The primary OEM reference is 17201-11080. Compatible alternative references include 17201-11010.
Is this a direct bolt-on replacement?
Yes. This turbo is supplied as a direct bolt-on replacement for the listed applications, using the factory mounting locations and connections. Correct installation procedures and root-cause checks should still be completed before fitting.
What is included with the turbo?

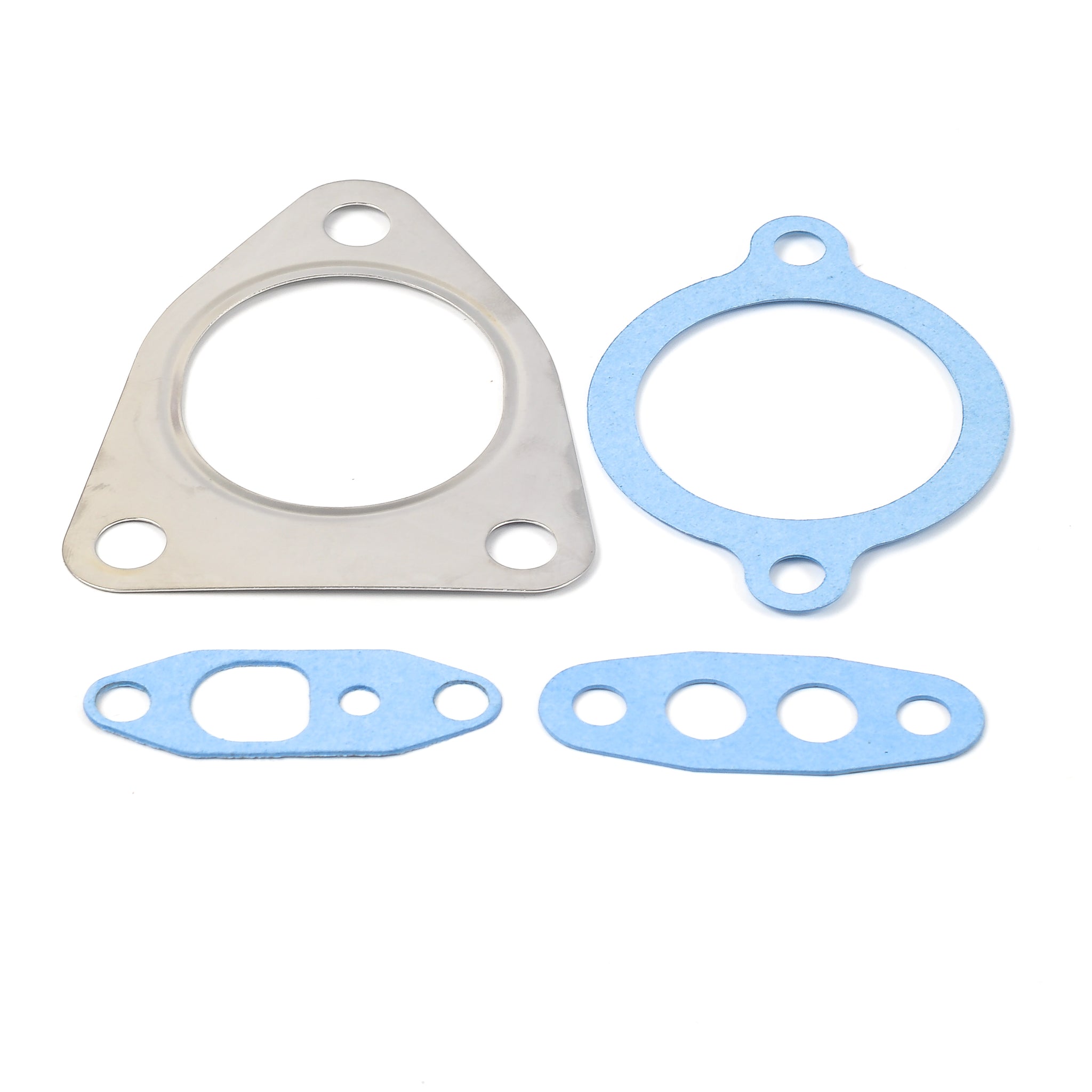

The package includes the complete turbocharger assembly, the matching actuator and an installation gasket kit.
What engineering specifications does this Stage 1 turbo use?
Compressor wheel: Billet + Slim Hub + High Blades + Extended Tips. Turbine wheel: Factory Turbine Wheel. Thrust bearing: 360° Thrust Bearing.
What boost level is this turbo designed to support?
This Stage 1 turbo is designed to support up to 19 PSI. Final boost targets must suit the engine condition, fuel system, supporting modifications and ECU calibration.
Does this turbo include an actuator?
Yes. A matching actuator is included with the supplied unit. Actuator type: Electronic Actuator.
Is ECU tuning required?
ECU tuning is not always required for installation, although a suitable calibration can help optimise the additional airflow and performance.
Which CCT turbo stage should I choose?
Stage 1 is suited to drivers wanting a responsive daily performance upgrade while retaining near-OEM drivability.
Use the CCT Performance Upgrade Comparison on this page to compare the available stages for this turbo family.
What warranty and technical support are included?
CCT turbochargers are backed by a 24-month Australian warranty, local technical support and post-warranty rebuild assistance subject to inspection, parts availability and warranty terms.
