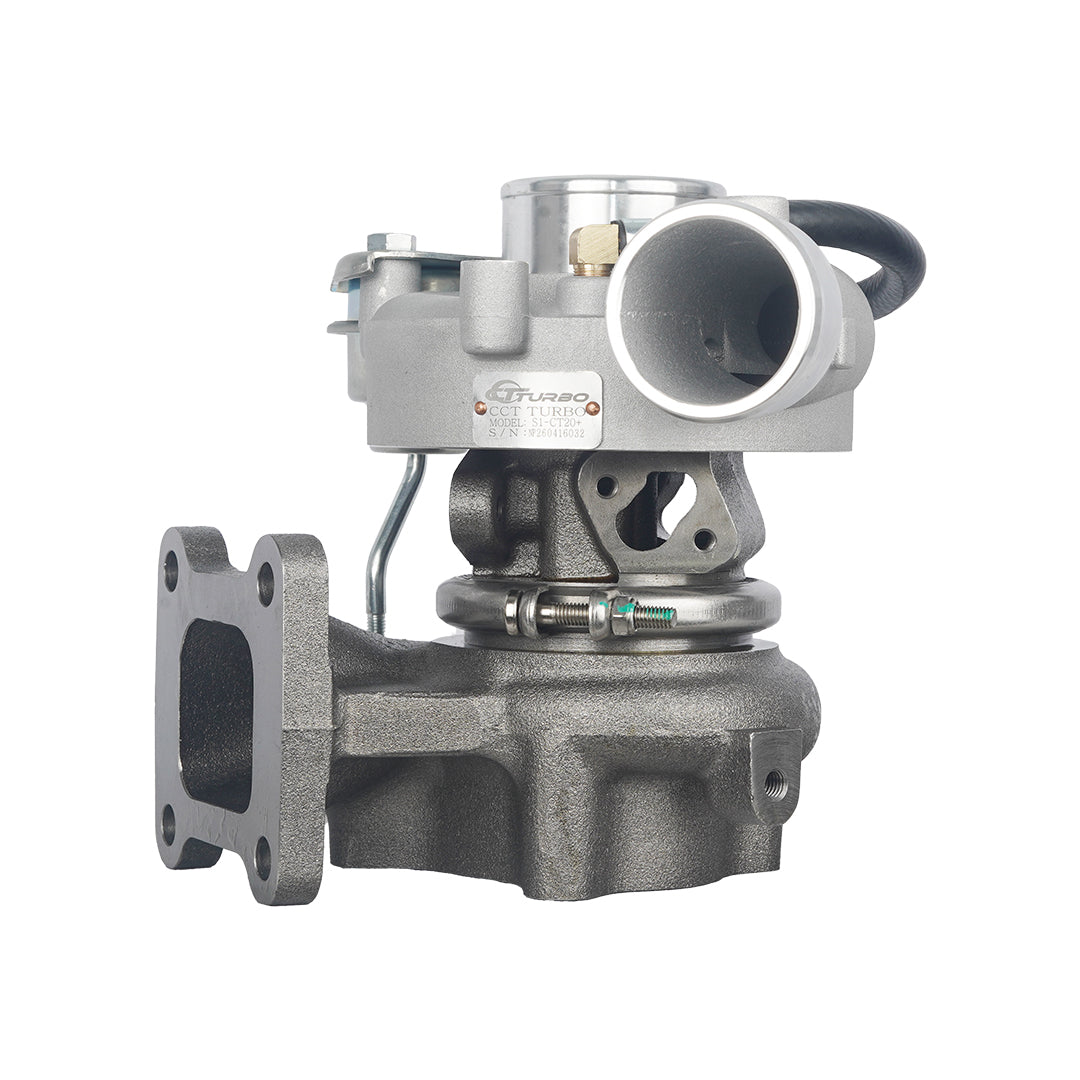

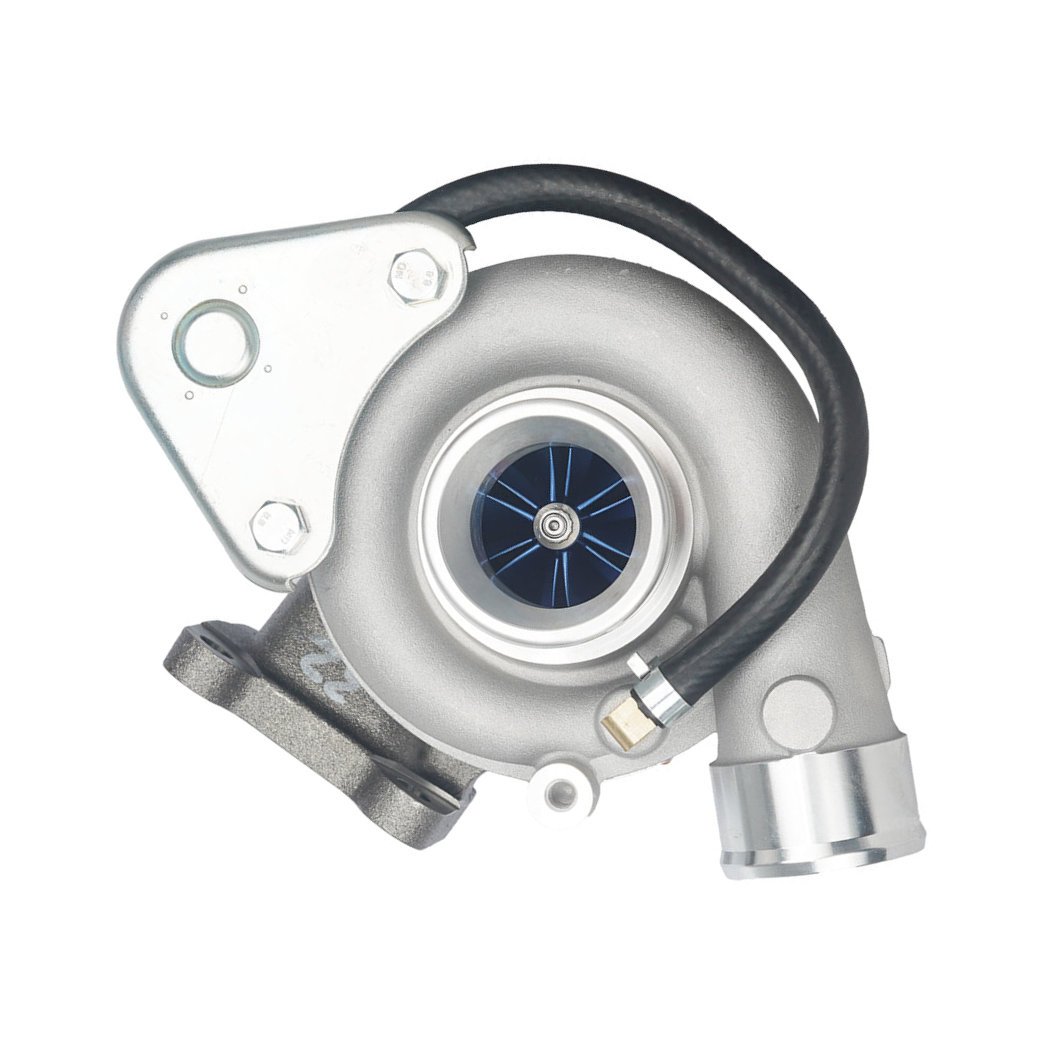

CCT Stage 1 Plus High-Flow CT20 Turbocharger for Toyota Hiace / Hilux / Surf / Landcruiser 2L-T 2.4L
CCT Stage 1 Plus High-Flow CT20 Turbocharger for Toyota Hiace / Hilux / Surf / Landcruiser 2L-T 2.4L is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Local Pickup Available
Local Pickup Available
Address:
Factory 1, 107 Wells Road, Chelsea Heights VIC 3196
Business hours:
8:30am-5:00pm Mon-Fri
(Excluding Public holidays)
Delivery and Shipping
Delivery and Shipping
- Shipping costs are calculated in the checkout.
- Free standard shipping for all orders over $350 via Australia Post
(Only available to Australian residents) - Express shipping is available and calculated in the checkout
- International shipping also available
Australian Hassle Free Warranty
Australian Hassle Free Warranty
All CCT Stage1 & Stage2 turbochargers come with a 24 Month Warranty and are backed by our Lifetime Rebuild Guarantee.
CCT Stage 1 Plus High-Flow CT20 Turbocharger for Toyota Hiace / Hil...
CCT Quality Standards
Product Overview
CCT Stage 1 Plus Turbocharger Upgrade for Toyota Applications
The CCT Stage 1 Plus Turbocharger Upgrade is engineered for Toyota Hiace LH120, Toyota Hiace LH100, Toyota Hiace LH51G and other compatible Toyota applications powered by the 2L-T 2.4L SOHC Mechanical Fuel Injection engine.
Positioned between a factory replacement and a full high-flow turbocharger, the CCT Stage 1 Plus is designed for stronger towing performance, improved throttle response and increased airflow while retaining OEM-style drivability and dependable road manners.
Engineering upgrades include +2mm Billet + Slim Hub + High Blades + Extended Tips, combined with 9-Blade Inconel 713C Hi-Flow Turbine Wheel and Enhanced 360° Thrust Bearing . Together, these changes are designed to improve compressor efficiency, mid-range response and durability under increased load, with a listed boost capability of up to 15 PSI.
Complete technical specifications, vehicle compatibility and performance comparison are provided below.
Turbocharger Specifications
Vehicle Fitment Guide
Check the vehicle, chassis, year and engine details below before ordering.
| Vehicle | Chassis / Series | Year Range | Engine | Fitment Notes |
|---|---|---|---|---|
| ToyotaHiace Toyota Hiace | LH120 LH120G | 1990–1993 | 2L-T 2.4L SOHC Mechanical Fuel Injection | Confirm part numbers before ordering. |
| ToyotaHiace Toyota Hiace | LH100 LH100R | 1989–1990 | 2L-T 2.4L SOHC Mechanical Fuel Injection | Confirm part numbers before ordering. |
| ToyotaHiace Toyota Hiace | LH51G LH51G | 1984–1989 | 2L-T 2.4L SOHC Mechanical Fuel Injection | Confirm part numbers before ordering. |
| ToyotaHilux Surf Toyota Hilux | LN131 LN130R | 1990–1993 | 2L-TE 2.4L SOHC Electronic Fuel Injection | Confirm part numbers before ordering. |
| ToyotaHilux Surf Toyota Hilux | LN130 LN130R | 1989–1991 | 2L-T 2.4L SOHC Mechanical Fuel Injection | Confirm part numbers before ordering. |
| ToyotaHilux Surf Toyota Hilux | LN61 LN61R | 1985–1989 | 2L-T 2.4L SOHC Mechanical Fuel Injection | Confirm part numbers before ordering. |
| ToyotaLandcruiser Toyota Landcruiser | LJ78 LJ78R | 1990–1993 | 2L-TE 2.4L SOHC Electronic Fuel Injection | Confirm part numbers before ordering. |
| ToyotaLandcruiser Toyota Landcruiser | LJ71 LJ71R | 1985–1993 | 2L-T 2.4L SOHC Mechanical Fuel Injection | Confirm part numbers before ordering. |
| ToyotaLandcruiser Toyota Landcruiser | LJ70 LJ70RV | 1986–1991 | 2L-T 2.4L SOHC Mechanical Fuel Injection | Confirm part numbers before ordering. |
CCT Performance Upgrade Comparison
Compare the available CCT turbo upgrade stages for this turbo family. Select a stage heading to view the matching product.
| Technical Specification | Standard Turbo OEM Replacement | Stage 1 Plus Towing & TouringCurrent |
|---|---|---|
| Compressor Wheel | Factory Cast Compressor Wheel | +2mm Billet + Slim Hub + High Blades + Extended Tips |
| Turbine Wheel | Factory Turbine Wheel | 9-Blade Inconel 713C Hi-Flow Turbine Wheel |
| Thrust Bearing | 270° Thrust Bearing | Enhanced 360° Thrust Bearing |
| Recommended Maximum Boost | Up to 8 PSI | Up to 15 PSI |
Boost figures are general capability references. Final boost targets should be set to suit the engine condition, fuel system, supporting modifications and ECU calibration.
Frequently Asked Questions
Will this turbo fit my vehicle?
This turbo fits multiple compatible vehicle applications. Refer to the Vehicle Fitment Guide below and confirm the chassis code, production year, engine code and existing turbo part number before ordering.
What OEM turbo numbers does this replace?
The primary OEM reference is17201-54060 .Compatible alternative references include17201-54060 .
Is this a direct bolt-on replacement?
Yes. This turbo is supplied as a direct bolt-on replacement for the listed applications, using the factory mounting locations and connections. Correct installation procedures and root-cause checks should still be completed before fitting.
What is included with the turbo?

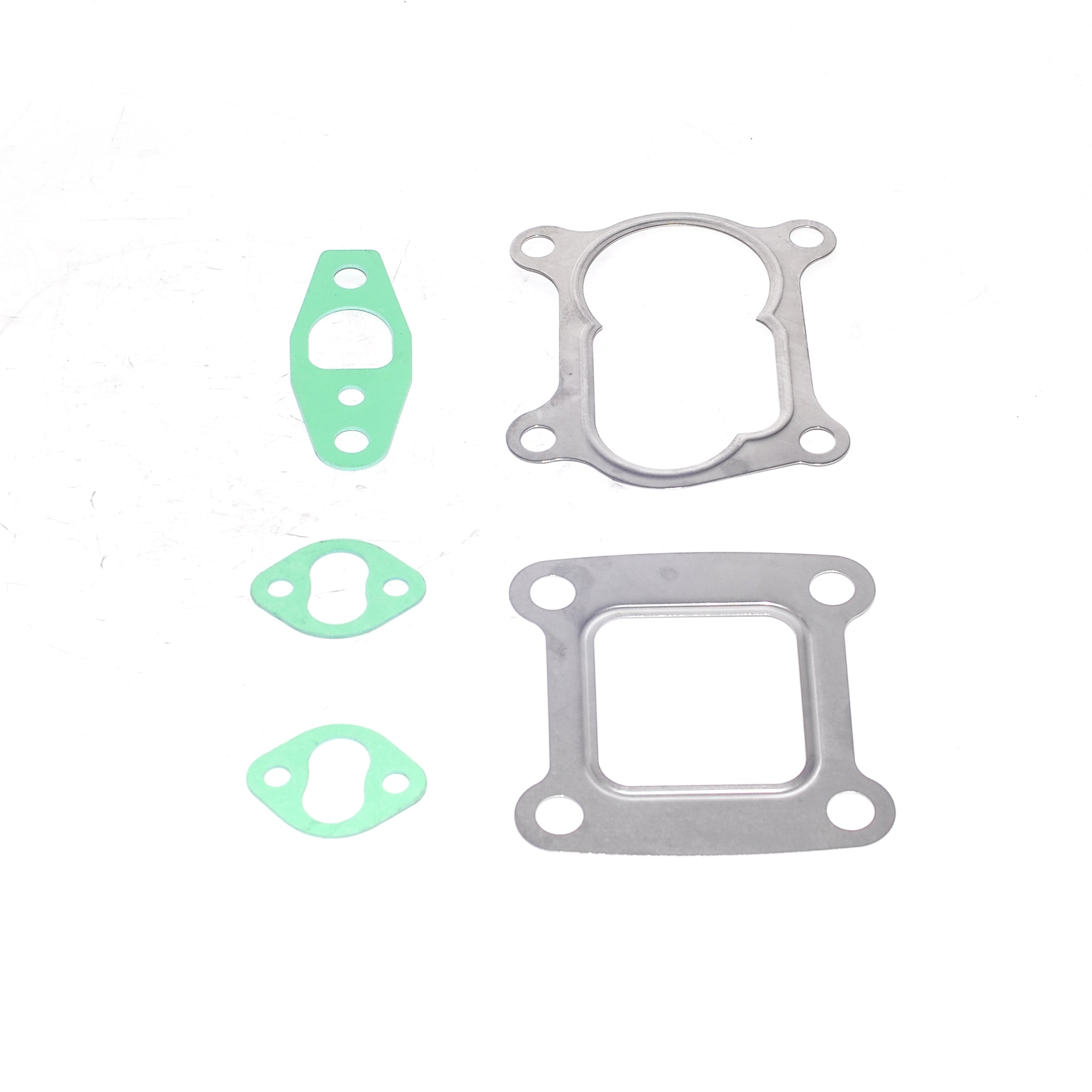

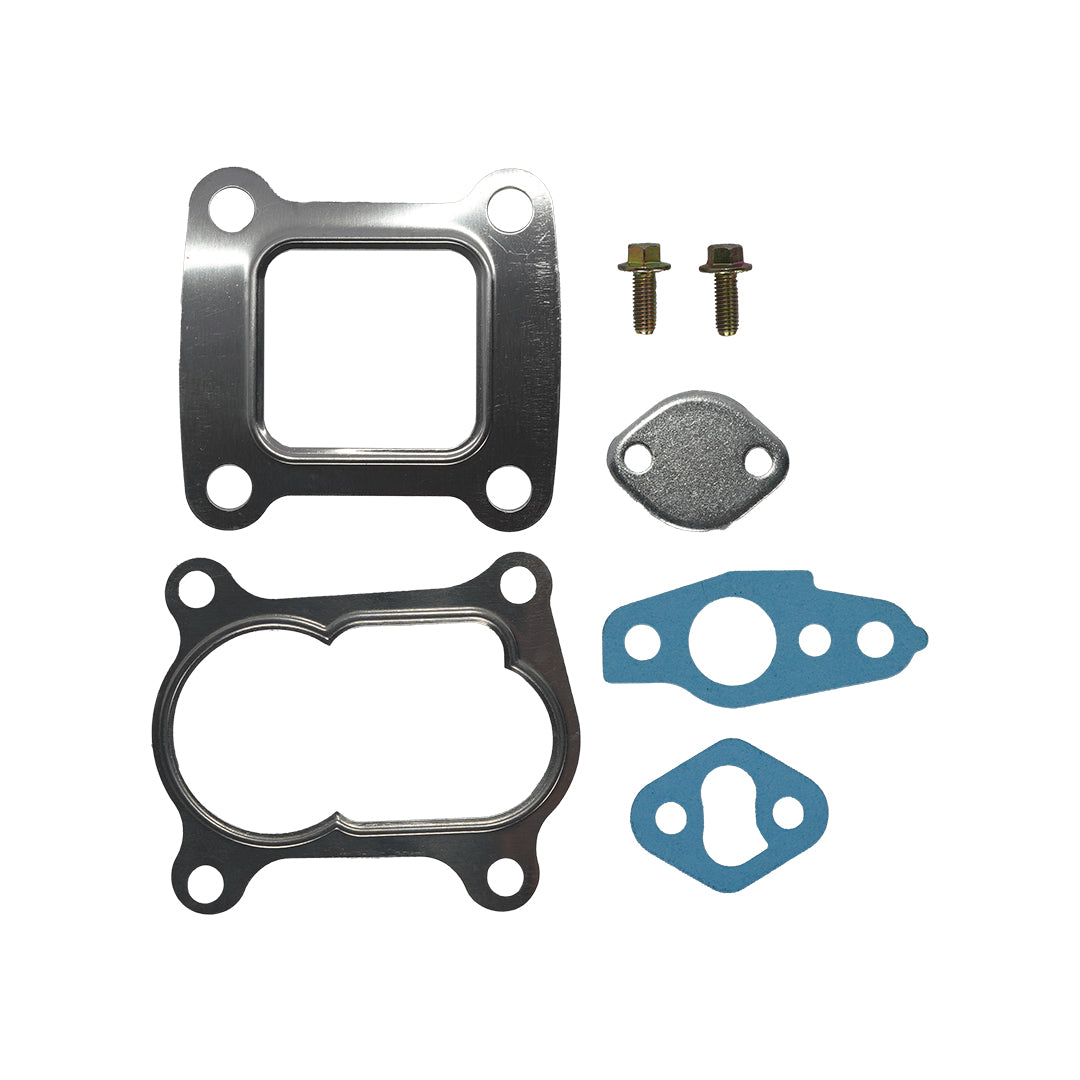

The package includes the complete turbocharger assembly, the matching actuator and an installation gasket kit.
What engineering specification does this Stage 1 Plus use?
Compressor wheel: +2mm Billet + Slim Hub + High Blades + Extended Tips.Turbine wheel: 9-Blade Inconel 713C Hi-Flow Turbine Wheel.Thrust bearing: Enhanced 360° Thrust Bearing.
What boost level is this turbo designed to support?
The listed reference capability for this Stage 1 Plus is up to 15 PSI. Final boost targets must suit the engine condition, fuel system, supporting modifications and ECU calibration.
Does this turbo include an actuator?
Yes.The supplied unit includes aPneumatic Wastegate Actuator .
Is ECU tuning required?
This turbo can be installed as a direct-fit upgrade, but ECU tuning is recommended to make full use of the increased airflow, towing performance and usable torque.
Which CCT turbo stage should I choose?
Stage 1 Plus is suited to daily driving, towing and touring applications where stronger usable torque and airflow are preferred over maximum peak flow.
Use the CCT Performance Upgrade Comparison on this page to compare the available stages for this turbo family.
What warranty and technical support are included?
CCT turbochargers are backed by a 24-month Australian warranty, local technical support and post-warranty rebuild assistance subject to inspection, parts availability and warranty terms.
