CCT Stage1 Upgrade Hi-Flow Turbo charger To Suit Nissan Navara D40 ...
CCT Quality Standards
Product Overview

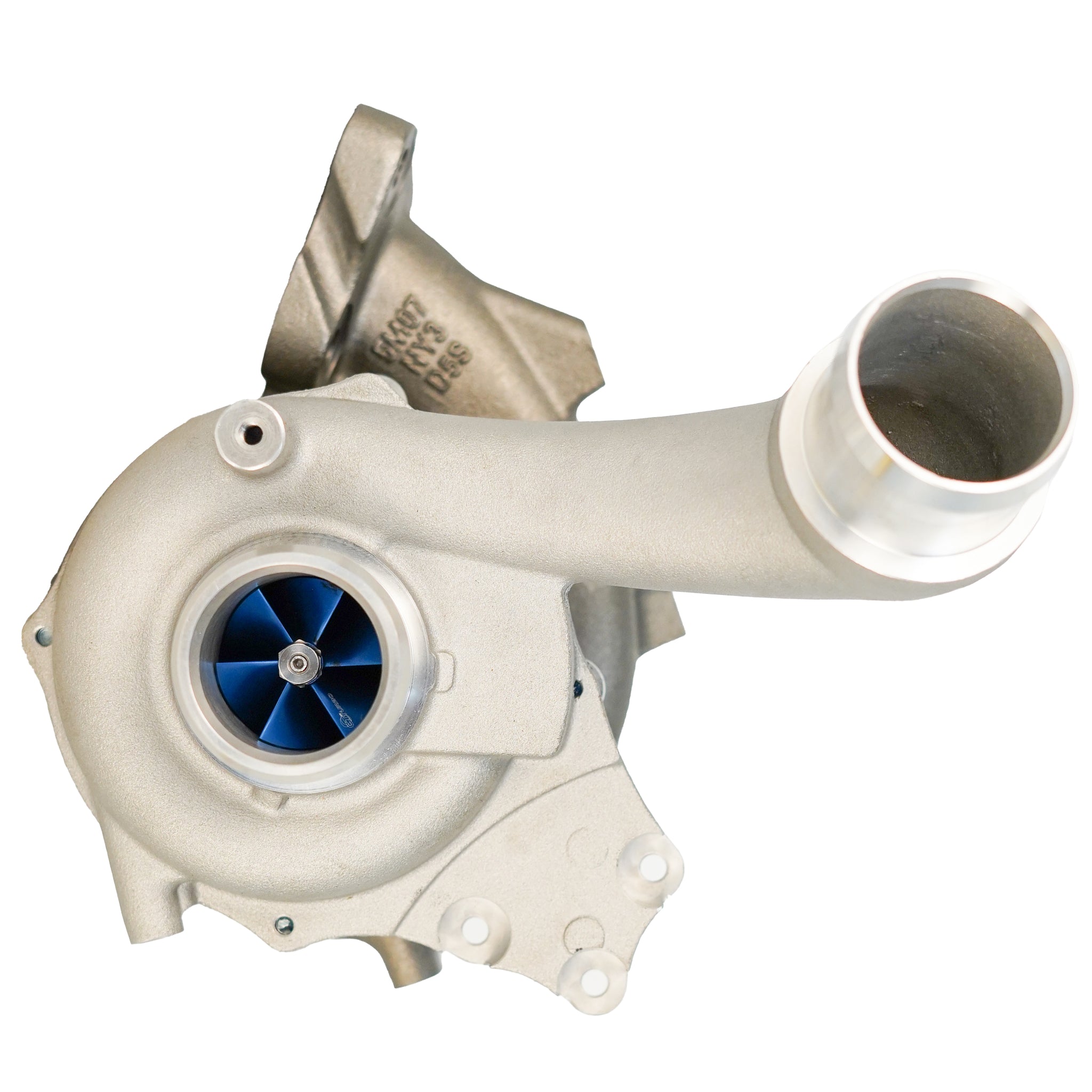

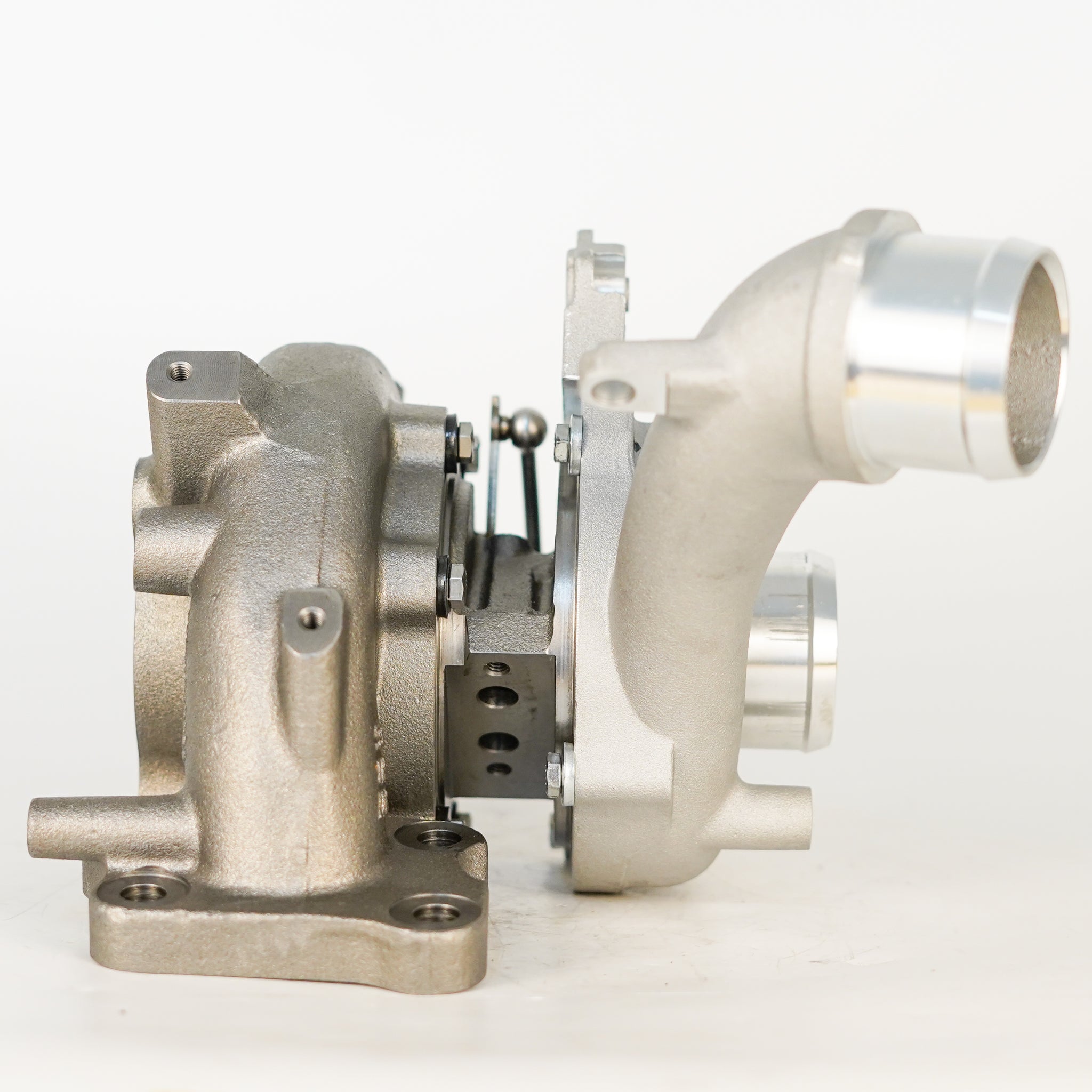

CCT Stage 1 Turbocharger Upgrade for Nissan Applications
The CCT Stage 1 Turbocharger Upgrade is engineered for Nissan Pathfinder R51 and Nissan Navara D40 applications powered by the YD25DDTI 2.5L DOHC Common Rail Injection (140kw) engine.
Designed as a responsive daily-performance upgrade, the CCT Stage 1 improves airflow and usable response while retaining near-OEM drivability, fitment and installation characteristics.
Engineering upgrades include Billet + Slim Hub + High Blades + Extended Tips, combined with Factory Turbine Wheel and 360° Thrust Bearing . Together, these changes are designed to improve compressor efficiency, mid-range response and durability under increased load, with a listed boost capability of up to 24 PSI.
Complete technical specifications and vehicle compatibility are provided below, together with a performance comparison where available.
Turbocharger Specifications
144115X01B / 144115X01A / 14411-5X01B + 3 more
53039880337 / 53039700337 / 53039700182 + 3 more
Vehicle Fitment Guide
Check the vehicle, chassis, year and engine details below before ordering.
| Vehicle | Chassis / Series | Year Range | Engine | Fitment Notes |
|---|---|---|---|---|
| NissanPathfinder Nissan Pathfinder R51 YD25 (2010-2013) 5x01a | R51 JVWR51 | 2010–2013 | YD25DDTI 2.5L DOHC Common Rail Injection (140kw) | |
| NissanNavara Nissan Navara D40 YD25 (2010-2015) 5x01a | D40 CVND40 | 2010–2015 | YD25DDTI 2.5L DOHC Common Rail Injection (140kw) |
CCT Performance Upgrade Comparison
Compare the available CCT turbo upgrade stages for this turbo family. Select a stage heading to view the matching product.
| Technical Specification | Standard Turbo OEM Replacement | Stage 1 Daily PerformanceCurrent | Stage 2 High-Flow Performance |
|---|---|---|---|
| Compressor Wheel | Factory Cast Compressor Wheel | Billet + Slim Hub + High Blades + Extended Tips | +4mm Billet + Slim Hub + High Blades + Extended Tips |
| Turbine Wheel | Factory Turbine Wheel | Factory Turbine Wheel | Factory Turbine Wheel |
| Thrust Bearing | 360° Thrust Bearing | 360° Thrust Bearing | 360° Thrust Bearing |
| Recommended Maximum Boost | Up to 18 PSI | Up to 24 PSI | Up to 24 PSI |
Boost figures are general capability references. Final boost targets should be set to suit the engine condition, fuel system, supporting modifications and ECU calibration.
Frequently Asked Questions
Will this turbo fit my vehicle?
This turbo is listed for Nissan Pathfinder R51 and Nissan Navara D40 applications. Confirm the full chassis, year, engine and part-number details in the Vehicle Fitment Guide before ordering.
What OEM turbo numbers does this replace?
The primary OEM reference is 14411-5X01A. Compatible alternative references include 144115X01B / 144115X01A / 14411-5X01B / 14411-5X01A / 14411-5X00A / 14411-5X00A.
Is this a direct bolt-on replacement?
Yes. This turbo is supplied as a direct bolt-on replacement for the listed applications, using the factory mounting locations and connections. Correct installation procedures and root-cause checks should still be completed before fitting.
What is included with the turbo?

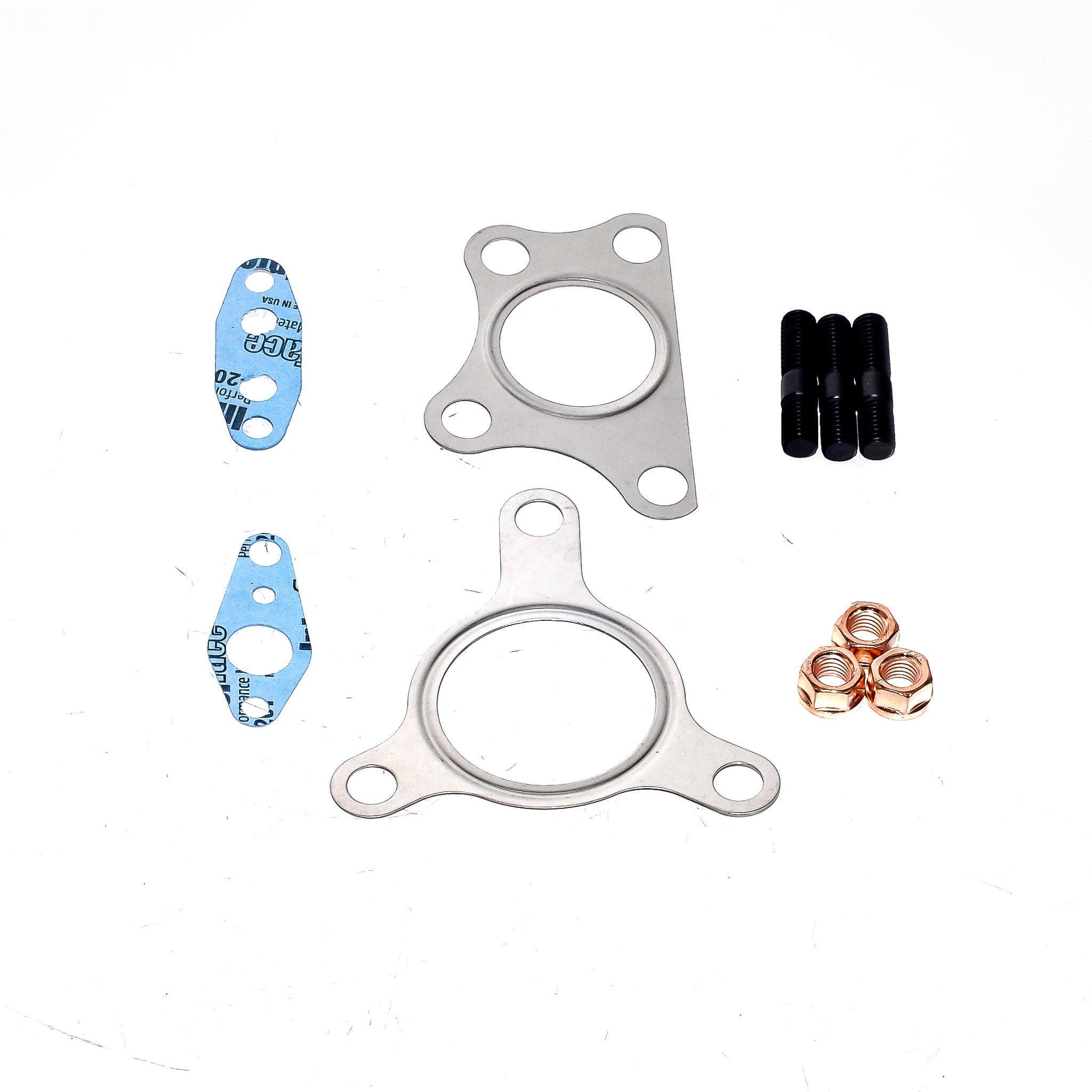

The package includes the complete turbocharger assembly and an installation gasket kit.
What engineering specifications does this Stage 1 turbo use?
Compressor wheel: Billet + Slim Hub + High Blades + Extended Tips. Turbine wheel: Factory Turbine Wheel. Thrust bearing: 360° Thrust Bearing.
What boost level is this turbo designed to support?
This Stage 1 turbo is designed to support up to 24 PSI. Final boost targets must suit the engine condition, fuel system, supporting modifications and ECU calibration.
Does this turbo include an actuator?
No. The supplied unit does not include the Electronic Actuator.
Is ECU tuning required?
ECU tuning is not always required for installation, although a suitable calibration can help optimise the additional airflow and performance.
Which CCT turbo stage should I choose?
Stage 1 is suited to drivers wanting a responsive daily performance upgrade while retaining near-OEM drivability.
Use the CCT Performance Upgrade Comparison on this page to compare the available stages for this turbo family.
What warranty and technical support are included?
CCT turbochargers are backed by a 24-month Australian warranty, local technical support and post-warranty rebuild assistance subject to inspection, parts availability and warranty terms.
