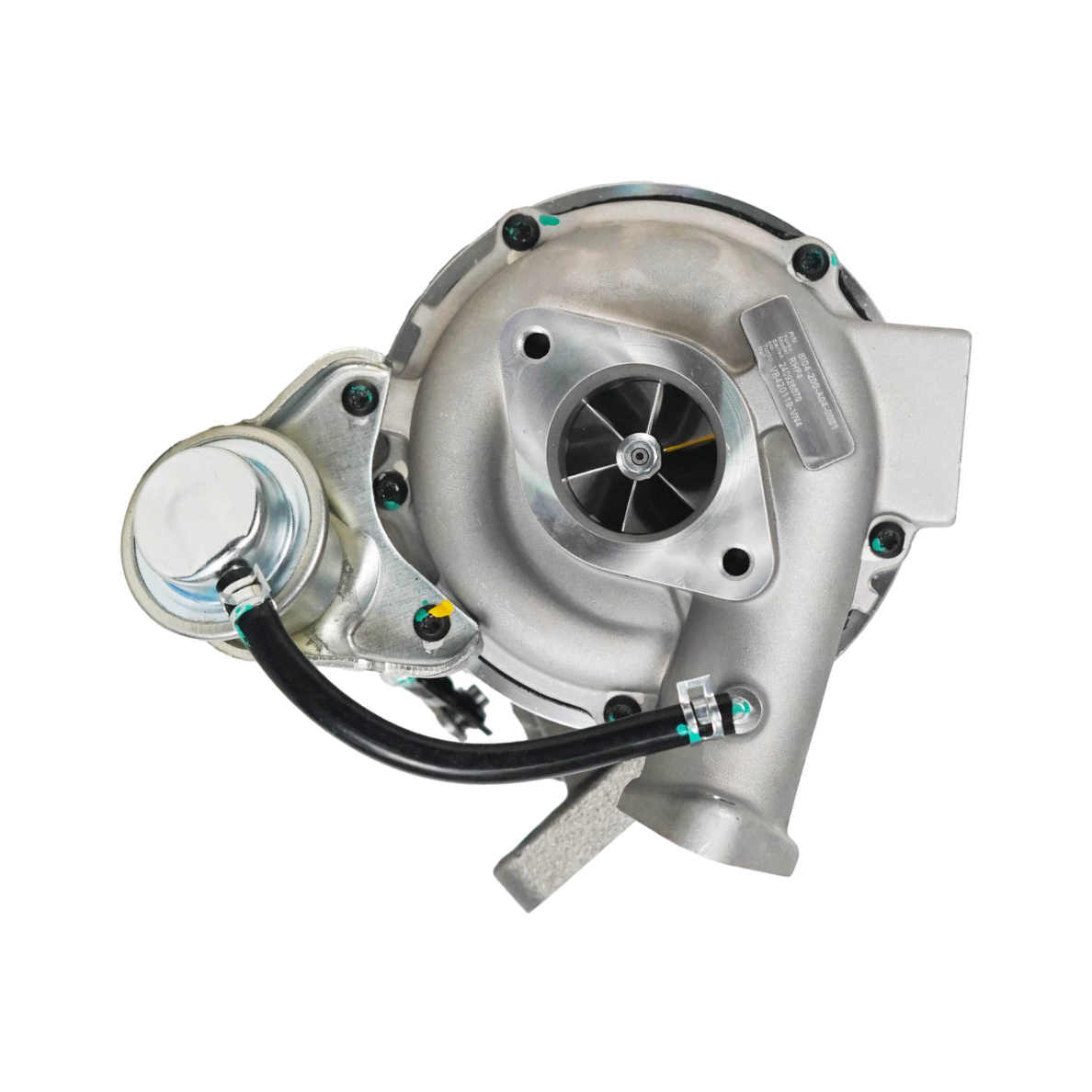

CCT Stage 1 Upgrade Hi-Flow Turbo Charger To Suit Nissan Navara D22 YD25 2.5L MB40B
CCT Stage 1 Upgrade Hi-Flow Turbo Charger To Suit Nissan Navara D22 YD25 2.5L MB40B is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Local Pickup Available
Local Pickup Available
Address:
Factory 1, 107 Wells Road, Chelsea Heights VIC 3196
Business hours:
8:30am-5:00pm Mon-Fri
(Excluding Public holidays)
Delivery and Shipping
Delivery and Shipping
- Shipping costs are calculated in the checkout.
- Free standard shipping for all orders over $350 via Australia Post
(Only available to Australian residents) - Express shipping is available and calculated in the checkout
- International shipping also available
Australian Hassle Free Warranty
Australian Hassle Free Warranty
All CCT Stage1 & Stage2 turbochargers come with a 24 Month Warranty and are backed by our Lifetime Rebuild Guarantee.
CCT Stage 1 Upgrade Hi-Flow Turbo Charger To Suit Nissan Navara D22...
🛡️ CCT Quality Standards
Description
Description
Boost Your Navara Performance with CCT Stage 1 Plus Technology
Upgrade your Nissan Navara D22 YD25 with the ultimate performance and reliability solution. Our CCT Stage 1 Plus Turbocharger is engineered right here in Melbourne, Australia, specifically for the harsh conditions of the AU 4x4 market.
🚀 Key Performance Highlights
- Performance Design MFS Billet Compressor Wheel: this upgraded billet design delivers increased airflow, faster spool response, and improved efficiency while maintaining factory-compatible tuning requirements.
- Increased Boost Capacity: Safe and reliable operation up to 18 PSI (Factory is ~14 PSI).
- Australian Built & Calibrated: Each unit is high-speed VSR balanced and air-flow calibrated in-house in Melbourne.
- Direct Bolt-On: 100% fitment compatibility with no tuning or modifications required.
🛠️ Turbocharger Specifications
| Turbo Model | VN4 |
| Part Number | VB420119, VA420125, VA420119 |
| OEM Part Number | 14411-VM01A, 14411VM01A, 14411MB40B, 14411-MB40B, 14411MB40C, 144121-MB40C |
| Cooling Type | Water and Oil Cooled |
| Actuator | Actuator Included |
| Gaskets | Free Gasket Set Included |
🚐 Vehicle Fitment Guide ▼
| Vehicle | Year Range | Engine | Fitment Note |
|---|---|---|---|
| Nissan Cabstar F24 | 2007-2019 | YD25 2.5L | Need to check REGO or VIN for this model, some grey imports have a different turbo. |
| Nissan Navara D22 | 2007-2015 | YD25 2.5L |
🛡️ CCT Performance Upgrade Matrix ▼
| Technical Specs | OEM Standard | CCT Stage 1 |
|---|---|---|
| Compressor Wheel | Standard Cast Aluminum | Slim Hub, High Blades Performance Design Billet |
| Turbine Wheel | Factory Spec | Factory Spec |
| Thrust Bearing | Journal Bearing | Journal Bearing |
| Max Safe Boost | Up to 14 PSI | Up to 18 PSI |
❓ Frequently Asked Questions ▼
Frequently Asked Questions - CCT Stage 1 Performance
The Stage 1 features a Slim Hub, High-Blade Performance Design Billet Wheel. This lightweight wheel moves a higher volume of air more efficiently than the bulky factory cast wheel, reducing lag and increasing potential output.
No. We pre-set the actuator to factory boost levels. While the Stage 1 is engineered to handle up to 18 PSI safely, it is up to the owner or tuner to adjust the boost if they wish to unlock the extra performance.
If you are running it at factory boost, no tune is required. However, to safely reach and sustain the higher 18 PSI limit, a professional ECU remap is recommended to optimize fuel timing and air-fuel ratios.
Yes. The Slim Hub Billet design reduces rotational mass, allowing the turbo to spool faster. This provides better low-end torque, which is essential for towing trailers or caravans up steep grades.
By using a smaller center hub (Slim Hub) and taller blades, the turbo can draw in significantly more air than a standard unit. This results in sharper throttle response and better top-end flow.
Yes, 100%. It is a factory-fit replacement that uses all your original mounting points, oil lines, and air intakes. No manifold modifications are needed.
The YD25 is a robust engine. 18 PSI is considered a safe performance ceiling that provides a noticeable power increase without overstressing the internal components of a healthy engine.
Yes, every CCT Stage 1 Turbo comes with a full, high-quality gasket kit to ensure a professional, leak-free installation.
Fitment can vary on imports. We strongly recommend providing your VIN or REGO before purchase so we can verify the turbo's configuration for your specific model.
You receive our 24-Month Australian Warranty and access to our exclusive Life-Time Cost Price Repair Service if the turbo is ever damaged in the future.
Please confirm part numbers prior to ordering.
If you are unsure, feel free to contact us.
