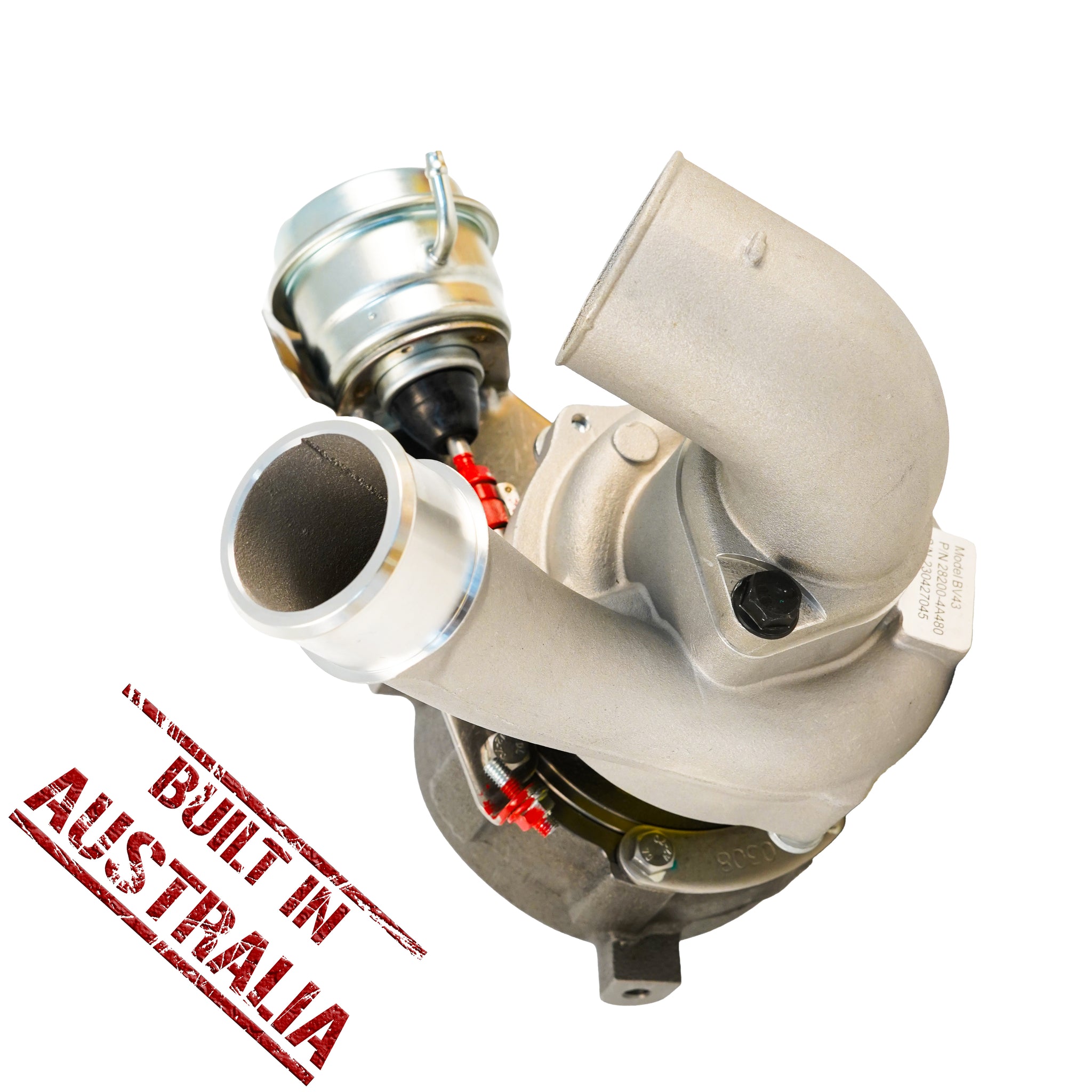

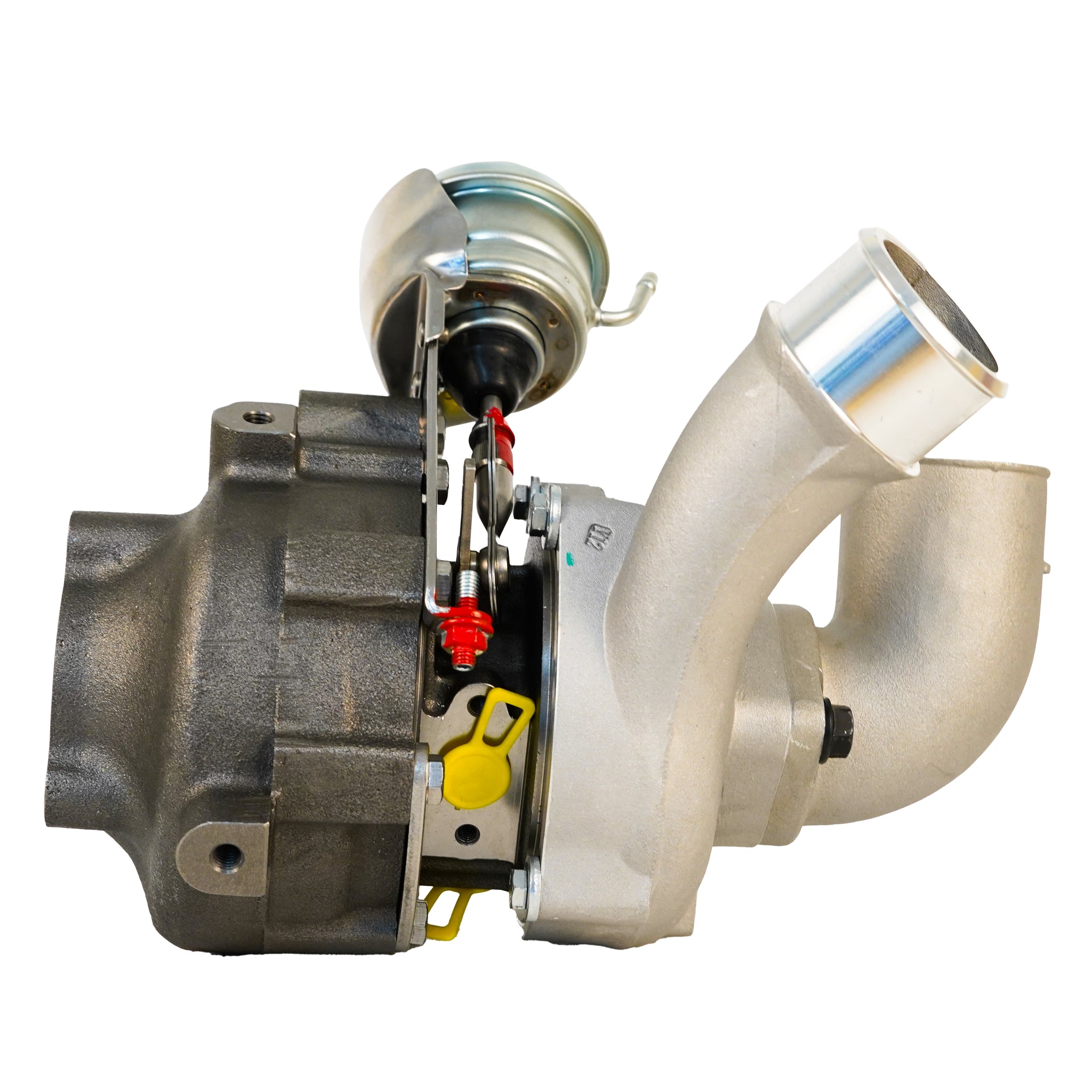

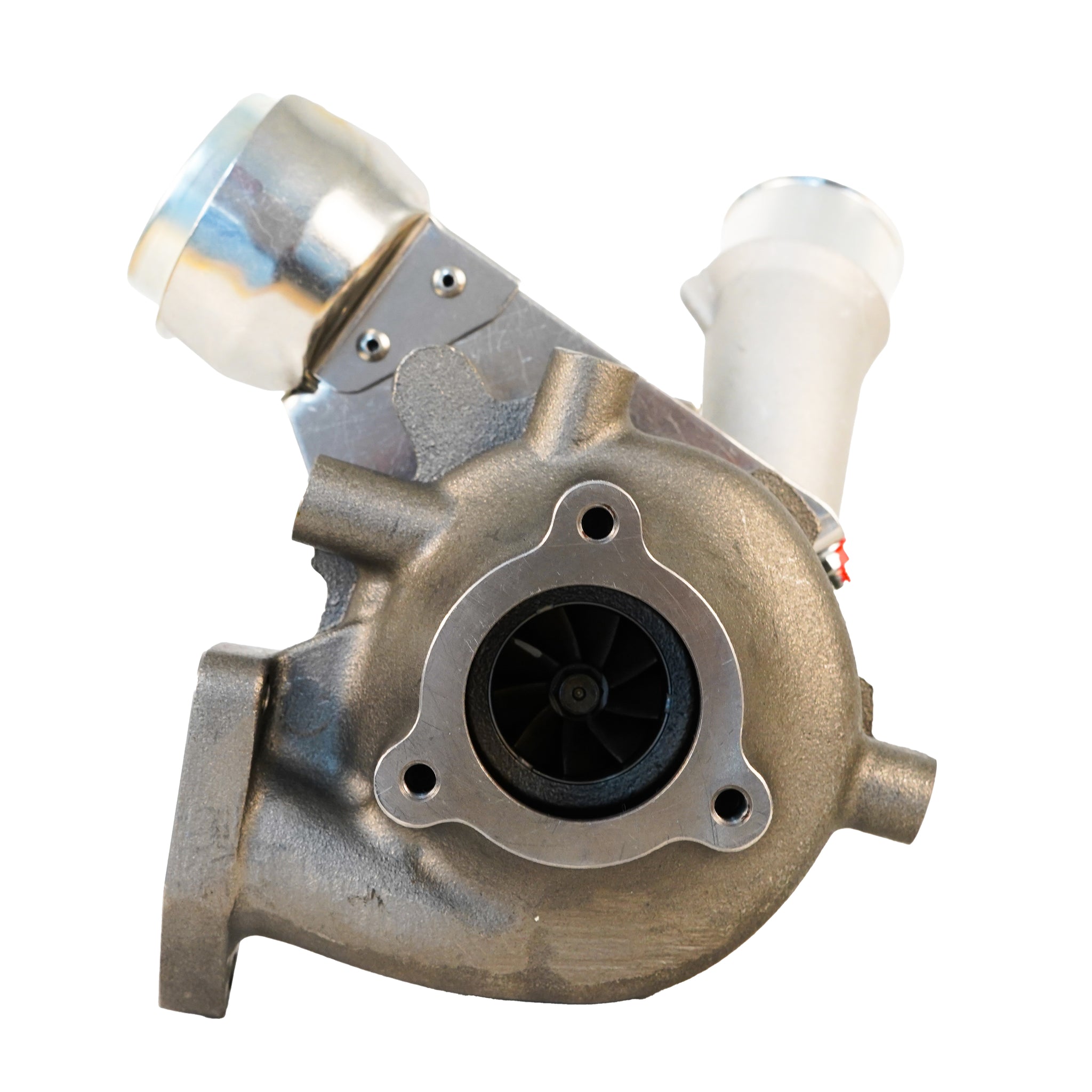

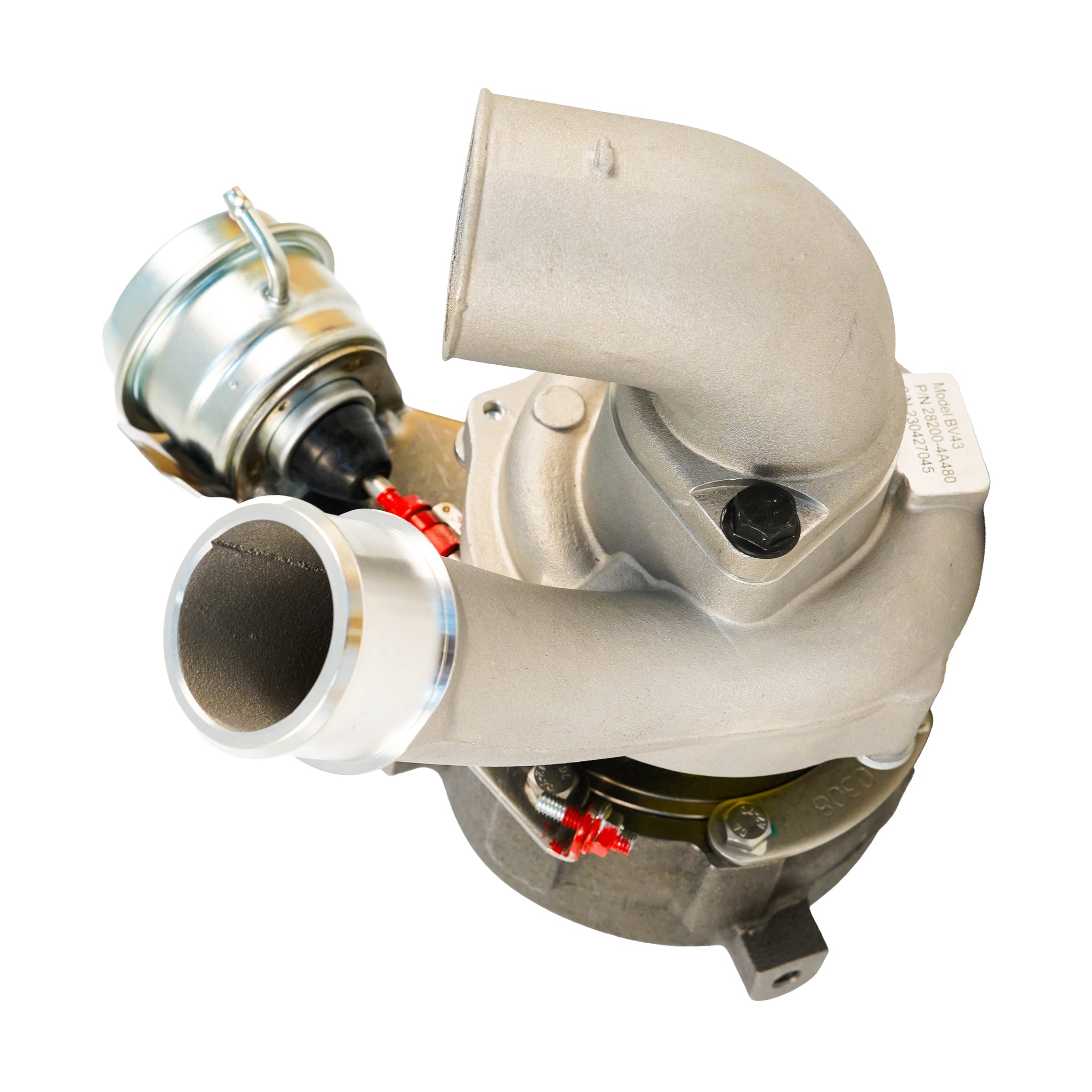

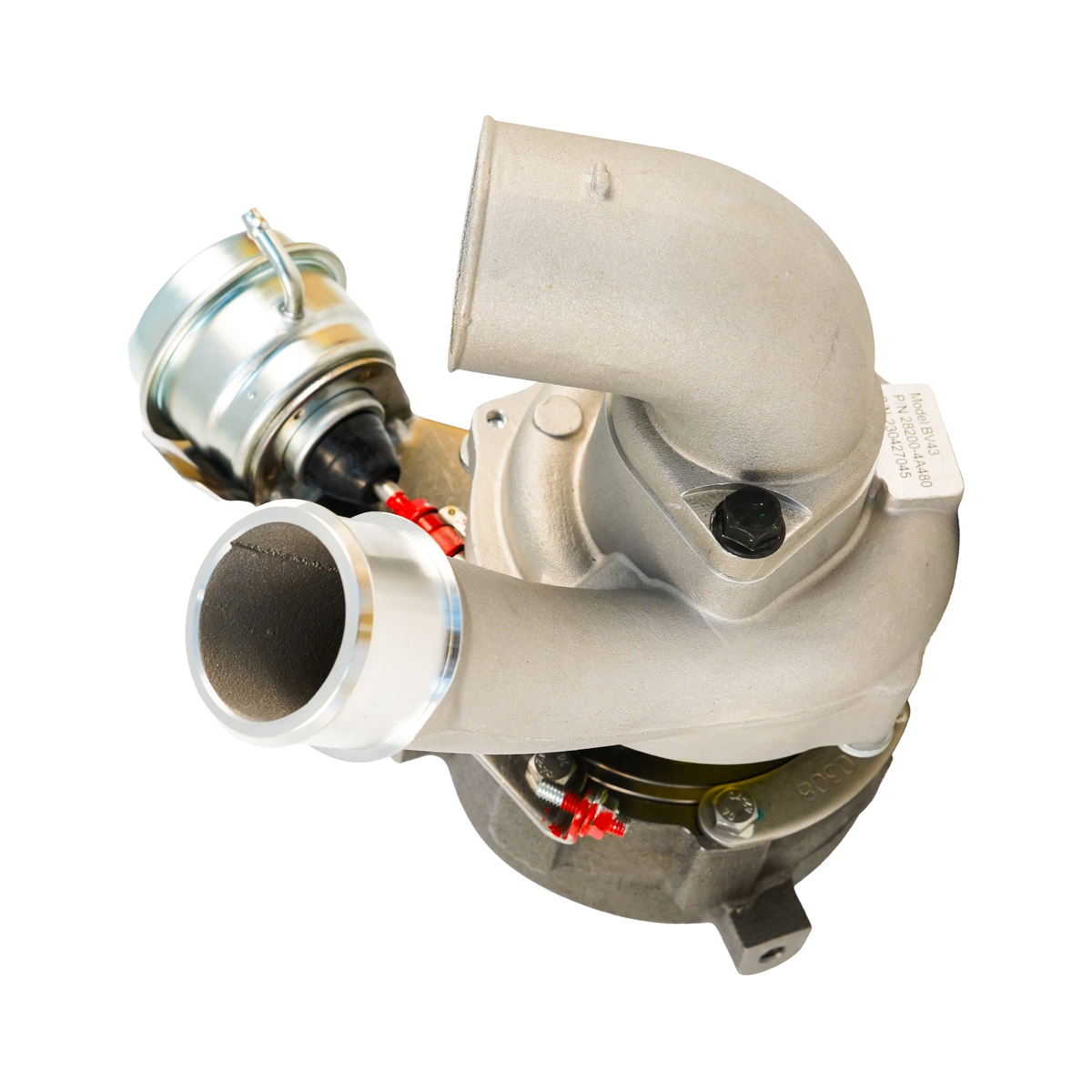

𝐒𝐓𝐀𝐆𝐄 𝟏 CCT Upgrade Hi-Flow Turbo charger To Suit Hyundai iLoad/iMax D4CB 4A480
𝐒𝐓𝐀𝐆𝐄 𝟏 CCT Upgrade Hi-Flow Turbo charger To Suit Hyundai iLoad/iMax D4CB 4A480 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Local Pickup Available
Local Pickup Available
Address:
Factory 1, 107 Wells Road, Chelsea Heights VIC 3196
Business hours:
8:30am-5:00pm Mon-Fri
(Excluding Public holidays)
Delivery and Shipping
Delivery and Shipping
- Shipping costs are calculated in the checkout.
- Free standard shipping for all orders over $350 via Australia Post
(Only available to Australian residents) - Express shipping is available and calculated in the checkout
- International shipping also available
Australian Hassle Free Warranty
Australian Hassle Free Warranty
All CCT Stage1 & Stage2 turbochargers come with a 24 Month Warranty and are backed by our Lifetime Rebuild Guarantee.
𝐒𝐓𝐀𝐆𝐄 𝟏 CCT Upgrade Hi-Flow Turbo charger To Suit Hyundai iLoad/iMa...
🛡️ CCT Quality Standards
Description
Description
Boost Your Hyundai iLoad / iMax Performance with CCT Stage 1 Technology
Upgrade your Hyundai iLoad / iMax with the ultimate performance and reliability solution. Our CCT Stage 1 Turbocharger is engineered right here in Melbourne, Australia, specifically for the harsh conditions of the AU 4x4 market.
🚀 Key Performance Highlights
- Performance Design MFS Billet Compressor Wheel: Featuring a compressor wheel 2mm larger than OEM, this upgraded billet design delivers increased airflow, faster spool response, and improved efficiency while maintaining factory-compatible tuning requirements.
- Increased Boost Capacity: Safe and reliable operation up to 20 PSI (Factory is ~16 PSI).
- Australian Built & Calibrated: Each unit is high-speed VSR balanced and air-flow calibrated in-house in Melbourne.
- Direct Bolt-On: 100% fitment compatibility with no tuning or modifications required.
🛠️ Turbocharger Specifications
| Turbo Model | BV43 |
| Part Number | 53039700145, 53039880145, 53039700127, 53039880127, 53039900145, 53039900127 |
| OEM Part Number | 282004A480, 28200-4A480 |
| Cooling Type | Water and Oil Cooled |
| Actuator | Vacuum Actuator Included |
| Gaskets | Complete Free Gasket Set Included |
🚐 Vehicle Fitment Guide ▼
| Vehicle | Year Range | Engine | Fitment Note |
|---|---|---|---|
| Hyundai H1 iLoad (WBH7J) | 2007 - 2012 | D4CB 2.5L | IMPORTANT: For the 2012 model, this is a "change-over" year. Please check your REGO or VIN to confirm the correct turbo before ordering. |
| Hyundai iMax (WH81J) | 2008 - 2012 | D4CB 2.5L |
🛡️ CCT Performance Upgrade Matrix ▼
| Technical Specs | OEM Standard | CCT Stage 1 |
|---|---|---|
| Compressor Wheel | Standard Cast Aluminum | Performance Design Billet |
| Turbine Wheel | Factory Spec | Factory Spec |
| Thrust Bearing | Factory Spec | Factory Spec |
| Max Safe Boost | Up to 16 PSI | Up to 20 PSI |
❓ Frequently Asked Questions ▼
1. Will this CCT Stage 1 upgrade fit my Hyundai iLoad or iMax?
Yes. This turbocharger is specifically designed for the Hyundai H1 iLoad and iMax models equipped with the D4CB 2.5L engine produced between 2007 and 2012. If your vehicle is a 2012 model, please provide your VIN so we can verify if you need the early or late series unit before purchase.
2. What are the benefits of the CCT Stage 1 over the standard factory turbo?
The CCT Stage 1 features a high-performance MFS Billet Compressor Wheel. This results in much faster boost response (spool-up), improved mid-range torque, and significantly higher efficiency compared to standard cast-wheel units, especially under heavy load or commercial use.
3. Does this upgrade help reduce the common turbo lag on the iLoad?
Absolutely. The lightweight Billet wheel reduces rotating mass, allowing the turbo to reach full boost significantly faster than the standard cast-wheel unit. This provides immediate throttle response for safer merging and overtaking.
4. Is this a direct bolt-on replacement for the 28200-4A480 model?
Yes, it is a 100% direct factory-fit replacement. It connects seamlessly to your original manifold, oil feed lines, and exhaust system with no modifications or additional adapters required.
5. Do I need an ECU remap or tuning after installing this upgrade?
No. CCT Stage 1 is designed as an "OEM Plus" upgrade, meaning it is engineered to run safely and efficiently on your vehicle's standard factory ECU settings. It is a true "plug-and-play" performance solution.
6. What is the maximum safe boost pressure for this Stage 1 turbo?
This unit is built to safely and reliably handle boost levels up to 20 PSI (standard factory settings are usually lower), providing a reliable balance between power gains and long-term engine durability.
7. Is a gasket kit included with the purchase?

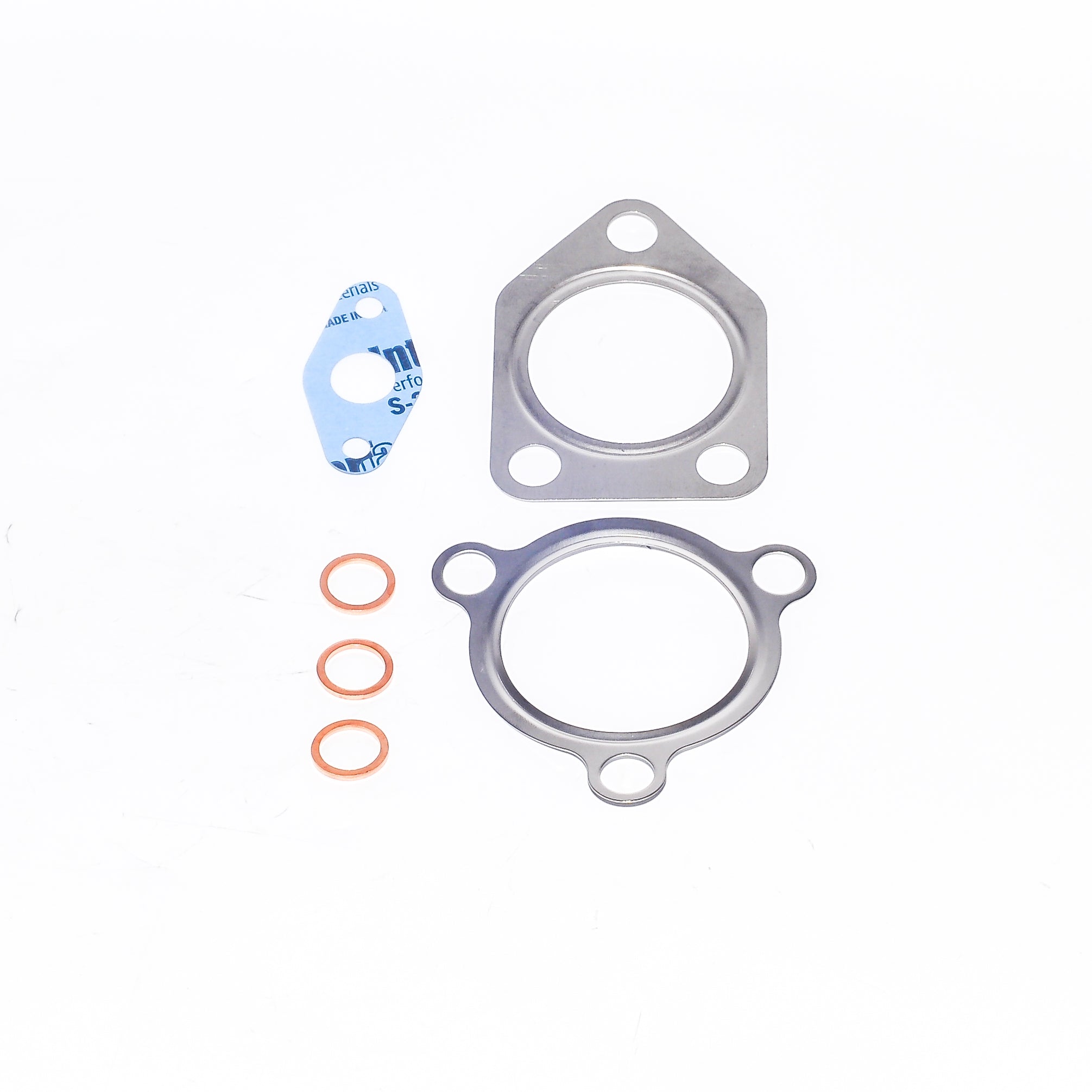

Yes, this turbo comes with a free set of gaskets as photo shows. Every seal required for a professional, leak-free installation is included in every box for your convenience.
8. Are CCT turbochargers balanced before shipping?
Yes. Every single CCT turbo undergoes high-speed VSR (Vibration Sorting Rig) dynamic balancing in our Melbourne facility. This guarantees vibration-free operation and maximizes the life of the internal components.
9. What kind of warranty support do you provide for this iLoad upgrade?
We offer an industry-leading 24-Month Australian Replacement Warranty. As we are based in Melbourne, we provide direct local technical support and a fast, hassle-free warranty process managed by our Victoria engineering team.
10. Should I replace the oil feed pipe when installing the new turbo?
Highly recommended. The D4CB engine is sensitive to oil flow. Replacing the original oil feed line with a new one ensures immediate clean lubrication to your bearings and protects your 24-month investment.
Please confirm part numbers prior to ordering.
If you are unsure, feel free to contact us.
