𝐒𝐓𝐀𝐆𝐄 𝟏 CCT Upgrade Hi-Flow 30150 Turbo Charger for Toyota Hiace 1K...
CCT Quality Standards
Product Overview
CCT Stage 1 Turbocharger Upgrade for Toyota Applications
The CCT Stage 1 Turbocharger Upgrade is engineered for Toyota Hiace KDH223, Toyota Hiace KDH221 and Toyota Hiace KDH201 applications powered by the 1KD-FTV 3.0L D-4D Diesel engine.
Designed as a responsive daily-performance upgrade, the CCT Stage 1 improves airflow and usable response while retaining near-OEM drivability, fitment and installation characteristics.
Engineering upgrades include Billet + Slim Hub + High Blades + Extended Tips, combined with 9-Blade Inconel 713C Hi-Flow Turbine Wheel and 270° Thrust Bearing . Together, these changes are designed to improve compressor efficiency, mid-range response and durability under increased load, with a listed boost capability of up to 19 PSI.
Complete technical specifications and vehicle compatibility are provided below, together with a performance comparison where available.
Turbocharger Specifications
9B009 / VA120015 / TC3VET-S0015B + 1 more
Vehicle Fitment Guide
Check the vehicle, chassis, year and engine details below before ordering.
| Vehicle | Chassis / Series | Year Range | Engine | Fitment Notes |
|---|---|---|---|---|
| ToyotaHiace Toyota Hiace KHD223 1KD-FTV 30150 | KDH223 KDH223R | 2006–2019 | 1KD-FTV 3.0L D-4D Diesel | Confirm part numbers before ordering. |
| ToyotaHiace Toyota Hiace KHD221 1KD-FTV 30150 | KDH221 KDH221R | 2006–2019 | 1KD-FTV 3.0L D-4D Diesel | Confirm part numbers before ordering. |
| ToyotaHiace Toyota Hiace KHD201 1KD-FTV 30150 | KDH201 KDH201R | 2006–2019 | 1KD-FTV 3.0L D-4D Diesel | Confirm part numbers before ordering. |
CCT Performance Upgrade Comparison
Compare the available CCT turbo upgrade stages for this turbo family. Select a stage heading to view the matching product.
| Technical Specification | Standard Turbo OEM Replacement | Stage 1 Daily PerformanceCurrent |
|---|---|---|
| Compressor Wheel | Factory Cast Compressor Wheel | Billet + Slim Hub + High Blades + Extended Tips |
| Turbine Wheel | Factory Turbine Wheel | 9-Blade Inconel 713C Hi-Flow Turbine Wheel |
| Thrust Bearing | 270° Thrust Bearing | 270° Thrust Bearing |
| Recommended Maximum Boost | Up to 14 PSI | Up to 19 PSI |
Boost figures are general capability references. Final boost targets should be set to suit the engine condition, fuel system, supporting modifications and ECU calibration.
Frequently Asked Questions
Will this turbo fit my vehicle?
This turbo is listed for Toyota Hiace KDH223, Toyota Hiace KDH221 and Toyota Hiace KDH201 applications. Confirm the full chassis, year, engine and part-number details in the Vehicle Fitment Guide before ordering.
What OEM turbo numbers does this replace?
The primary OEM reference is 17201-30180. Compatible alternative references include 17201-30181 / 17201-30150.
Is this a direct bolt-on replacement?
Yes. This turbo is supplied as a direct bolt-on replacement for the listed applications, using the factory mounting locations and connections. Correct installation procedures and root-cause checks should still be completed before fitting.
What is included with the turbo?

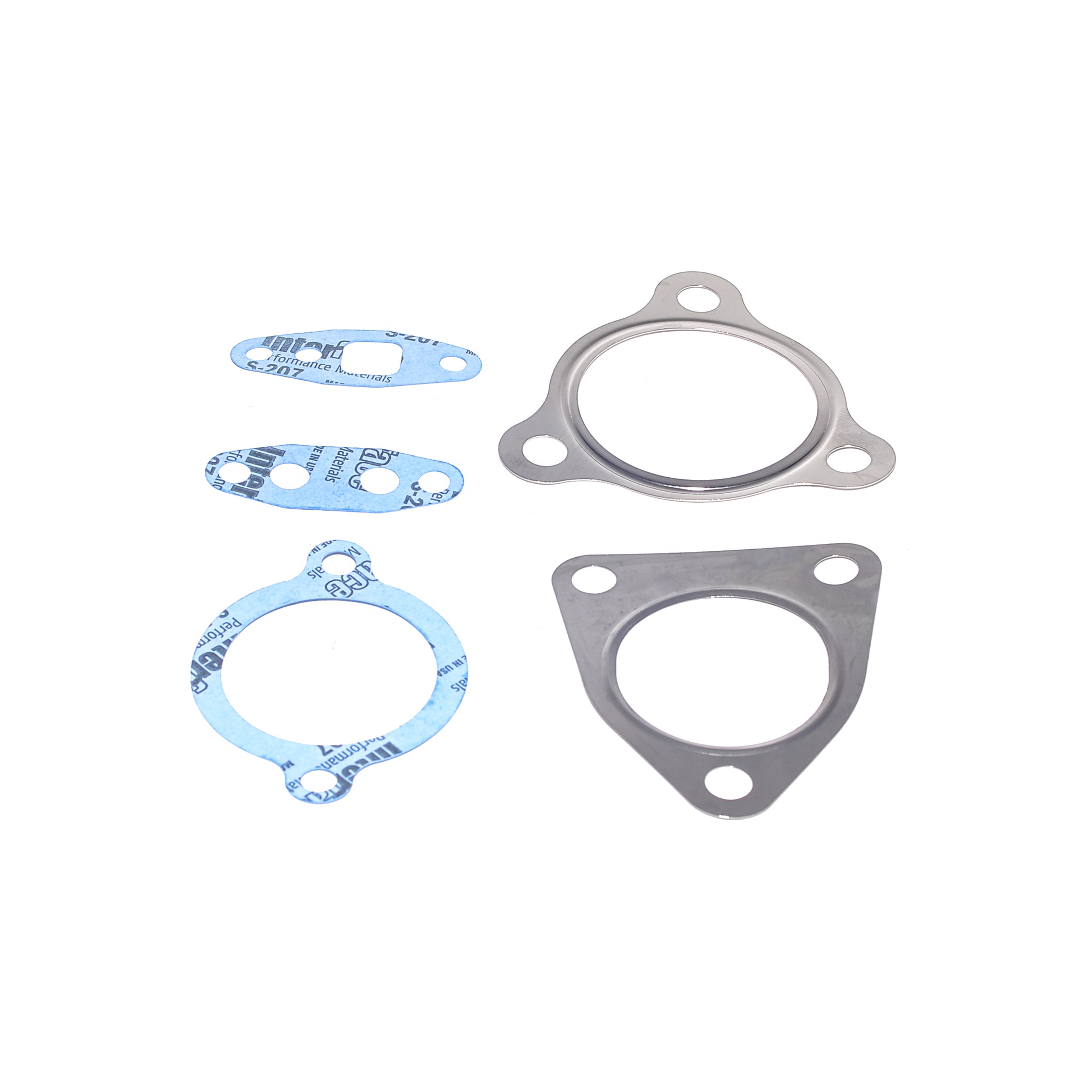

The package includes the complete turbocharger assembly, the matching actuator and an installation gasket kit.
What engineering specifications does this Stage 1 turbo use?
Compressor wheel: Billet + Slim Hub + High Blades + Extended Tips. Turbine wheel: 9-Blade Inconel 713C Hi-Flow Turbine Wheel. Thrust bearing: 270° Thrust Bearing.
What boost level is this turbo designed to support?
This Stage 1 turbo is designed to support up to 19 PSI. Final boost targets must suit the engine condition, fuel system, supporting modifications and ECU calibration.
Does this turbo include an actuator?
Yes. A matching actuator is included with the supplied unit. Actuator type: Electronic Actuator.
Is ECU tuning required?
ECU tuning is not always required for installation, although a suitable calibration can help optimise the additional airflow and performance.
Which CCT turbo stage should I choose?
Stage 1 is suited to drivers wanting a responsive daily performance upgrade while retaining near-OEM drivability.
Use the CCT Performance Upgrade Comparison on this page to compare the available stages for this turbo family.
What warranty and technical support are included?
CCT turbochargers are backed by a 24-month Australian warranty, local technical support and post-warranty rebuild assistance subject to inspection, parts availability and warranty terms.
