CCT Stage 2 High-Flow Turbo Charger for Mazda Bravo B2500 / Ford Co...
CCT Quality Standards
Product Overview

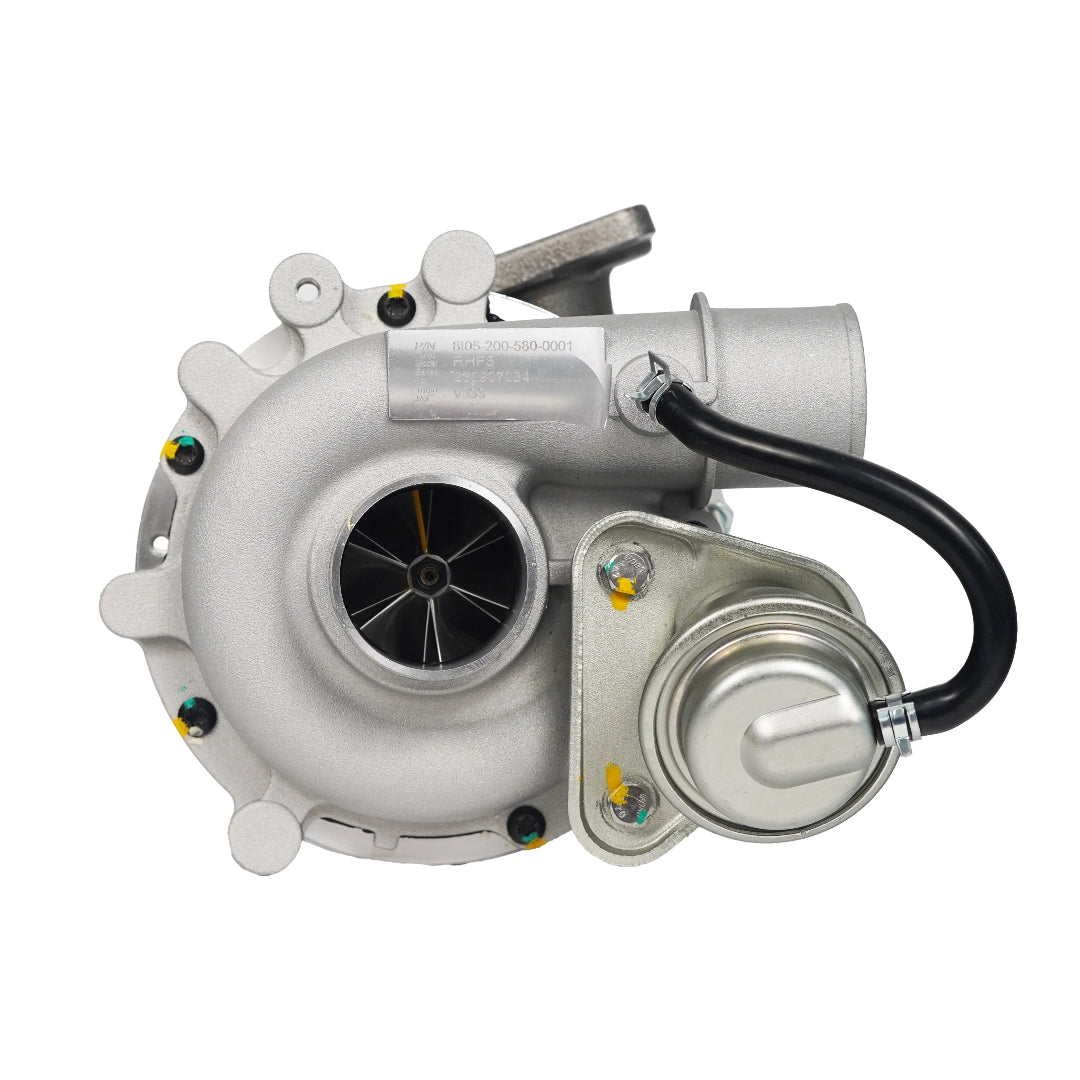

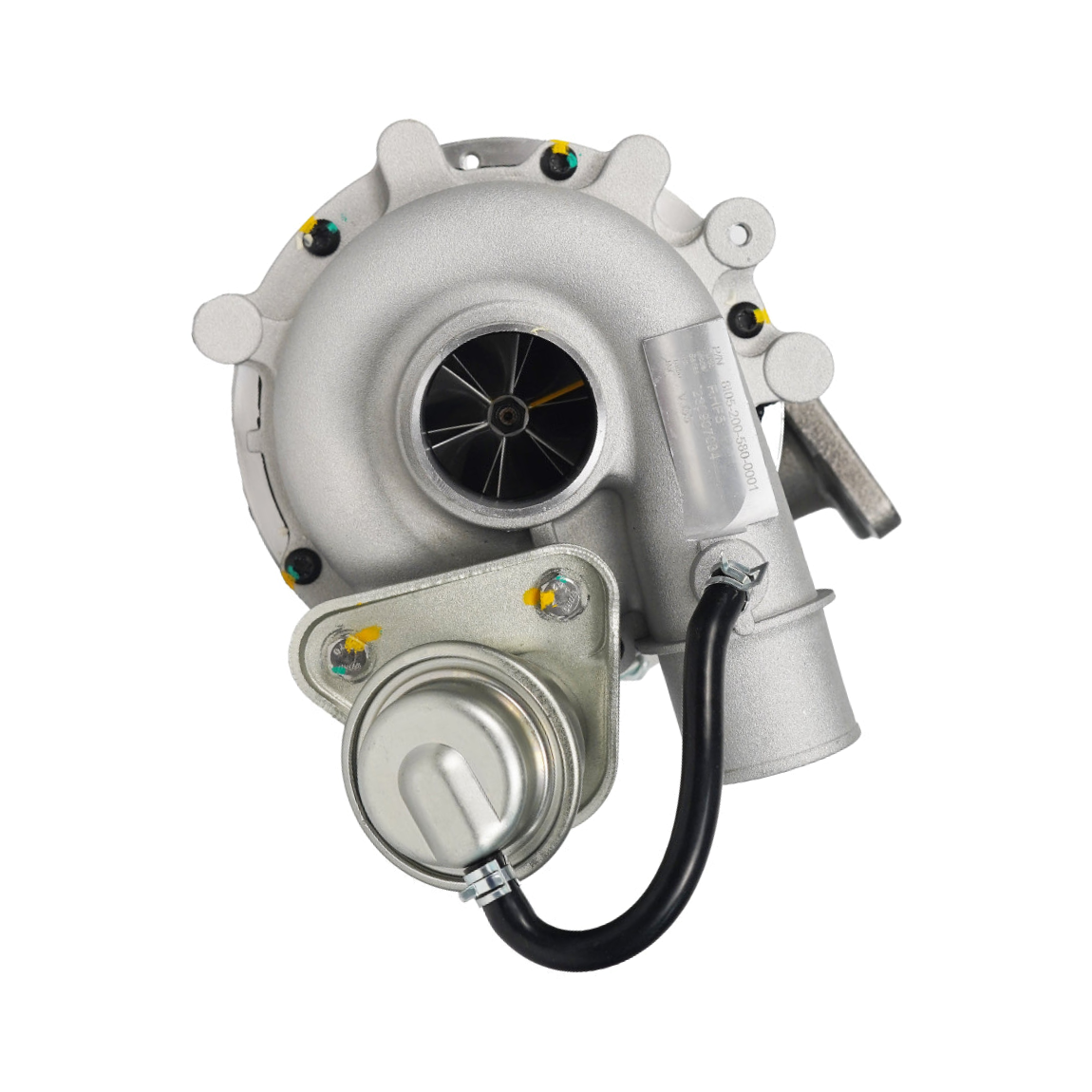

CCT Stage 2 Turbocharger Upgrade for Compatible Vehicle Applications
The CCT Stage 2 Turbocharger Upgrade is engineered for Ford Courier PH, Ford Courier PG, Ford Courier PE and other compatible applications powered by the WLAT 2.5L SOHC Common Rail Injection (86kw) engine.
Developed for higher-flow performance builds, the CCT Stage 2 is intended for applications using supporting ECU calibration and suitable engine modifications where increased airflow and greater peak power potential are required.
Engineering upgrades include +4mm Billet + Slim Hub + High Blades + Extended Tips, combined with Factory Turbine Wheel and 360° Thrust Bearing . Together, these changes are designed to improve compressor efficiency, mid-range response and durability under increased load, with a listed boost capability of up to 16 PSI.
Complete technical specifications, vehicle compatibility and performance comparison are provided below.
Turbocharger Specifications
WL84 / WL85 / WL85A + 3 more
VJ26 / F51CAT-S0089B / VC430089 + 6 more
Vehicle Fitment Guide
Check the vehicle, chassis, year and engine details below before ordering.
| Vehicle | Chassis / Series | Year Range | Engine | Fitment Notes |
|---|---|---|---|---|
| FordCourier Ford Courier PH WLAT (2004-2006) | PH | 2004–2006 | WLAT 2.5L SOHC Common Rail Injection (86kw) | Confirm part numbers before ordering. |
| FordCourier Ford Courier PG WLAT (2002-2004) | PG | 2002–2004 | WLAT 2.5L SOHC Common Rail Injection (86kw) | Confirm part numbers before ordering. |
| FordCourier Ford Courier PE WLAT (1999-2002) | PE | 1999–2002 | WLAT 2.5L SOHC Common Rail Injection (86kw) | Confirm part numbers before ordering. |
| MazdaBravo Mazda Bravo UN WLAT (1999-2006) | UN UNY0W | 1999–2006 | WLAT 2.5L SOHC Common Rail Injection (86kw) | Confirm part numbers before ordering. |
| MazdaB2500 Mazda B2500 UN WLAT (1999-2006) | UN UNY0W | 1999–2006 | WLAT 2.5L SOHC Common Rail Injection (86kw) | Confirm part numbers before ordering. |
CCT Performance Upgrade Comparison
Compare the available CCT turbo upgrade stages for this turbo family. Select a stage heading to view the matching product.
| Technical Specification | Standard Turbo OEM Replacement | Stage 1 Daily Performance | Stage 2 High-Flow PerformanceCurrent |
|---|---|---|---|
| Compressor Wheel | Factory Cast Compressor Wheel | Billet + Slim Hub + High Blades + Extended Tips | +4mm Billet + Slim Hub + High Blades + Extended Tips |
| Turbine Wheel | Factory Turbine Wheel | Factory Turbine Wheel | Factory Turbine Wheel |
| Thrust Bearing | 360° Thrust Bearing | 360° Thrust Bearing | 360° Thrust Bearing |
| Recommended Maximum Boost | Up to 10 PSI | Up to 16 PSI | Up to 16 PSI |
Boost figures are general capability references. Final boost targets should be set to suit the engine condition, fuel system, supporting modifications and ECU calibration.
Frequently Asked Questions
Will this turbo fit my vehicle?
This turbo fits multiple compatible vehicle applications. Refer to the Vehicle Fitment Guide below and confirm the chassis code, production year, engine code and existing turbo part number before ordering.
What OEM turbo numbers does this replace?
The primary OEM reference isWL84 .Compatible alternative references includeWL84 / WL85 / WL85A / WL84A / WL84B / WL85C .
Is this a direct bolt-on replacement?
Yes. This turbo is supplied as a direct bolt-on replacement for the listed applications, using the factory mounting locations and connections. Correct installation procedures and root-cause checks should still be completed before fitting.
What is included with the turbo?
The package includes the complete turbocharger assembly, the matching actuator and an installation gasket kit.
What engineering specification does this Stage 2 use?
Compressor wheel: +4mm Billet + Slim Hub + High Blades + Extended Tips.Turbine wheel: Factory Turbine Wheel.Thrust bearing: 360° Thrust Bearing.
What boost level is this turbo designed to support?
The listed reference capability for this Stage 2 is up to 16 PSI. Final boost targets must suit the engine condition, fuel system, supporting modifications and ECU calibration.
Does this turbo include an actuator?
Yes.The supplied unit includes aPneumatic Wastegate Actuator .
Is ECU tuning required?
ECU tuning and suitable supporting modifications are recommended to achieve the intended higher-flow performance safely.
Which CCT turbo stage should I choose?
Stage 2 is intended for higher-flow performance builds with supporting modifications and suitable ECU calibration.
Use the CCT Performance Upgrade Comparison on this page to compare the available stages for this turbo family.
What warranty and technical support are included?
CCT turbochargers are backed by a 24-month Australian warranty, local technical support and post-warranty rebuild assistance subject to inspection, parts availability and warranty terms.
