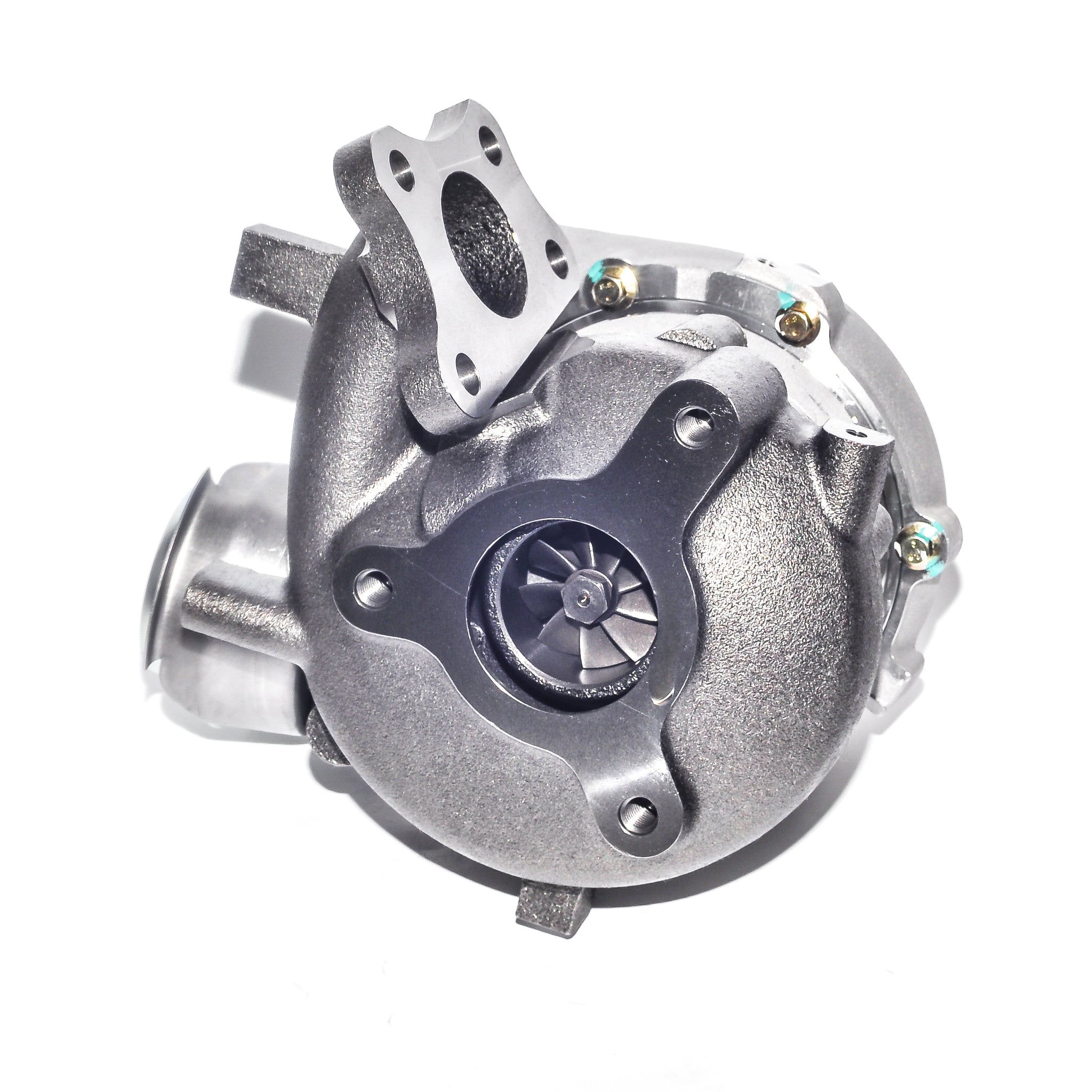

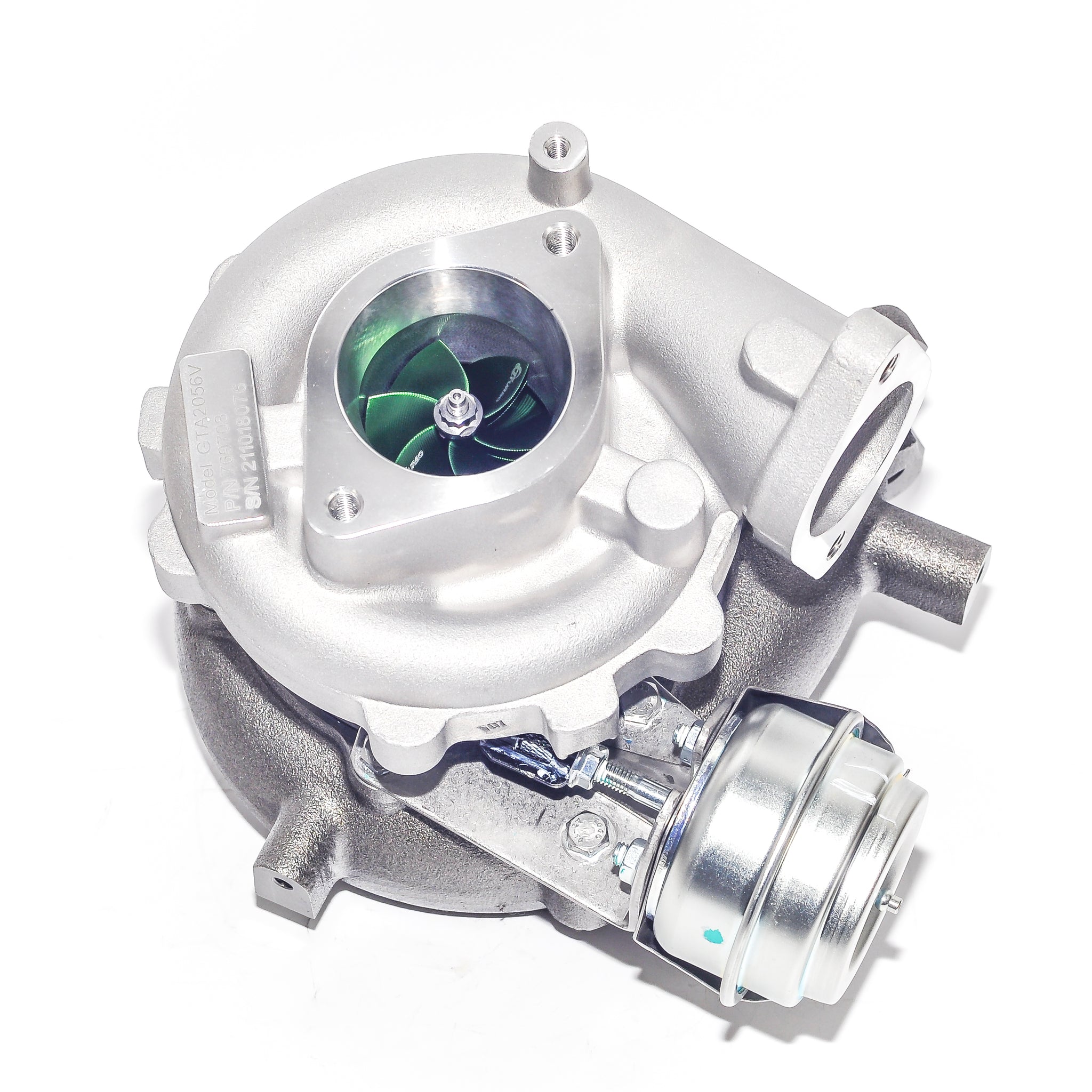

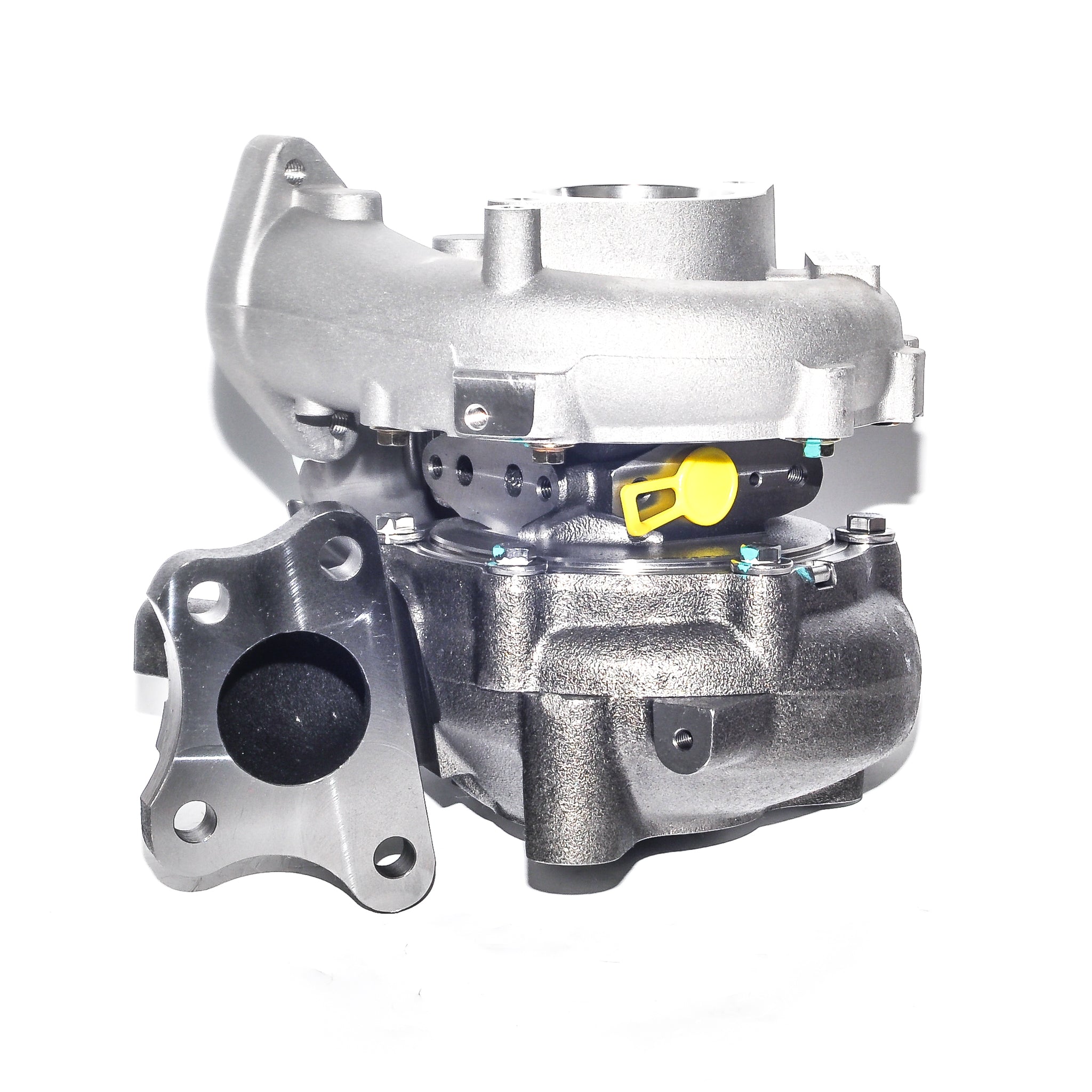

𝐒𝐓𝐀𝐆𝐄 𝟐 CCT Upgrade Hi-Flow Turbo Charger To Suit Nissan Navara D40 / Pathfinder R51 4-Bolt Flange
𝐒𝐓𝐀𝐆𝐄 𝟐 CCT Upgrade Hi-Flow Turbo Charger To Suit Nissan Navara D40 / Pathfinder R51 4-Bolt Flange is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Local Pickup Available
Local Pickup Available
Address:
Factory 1, 107 Wells Road, Chelsea Heights VIC 3196
Business hours:
8:30am-5:00pm Mon-Fri
(Excluding Public holidays)
Delivery and Shipping
Delivery and Shipping
- Shipping costs are calculated in the checkout.
- Free standard shipping for all orders over $350 via Australia Post
(Only available to Australian residents) - Express shipping is available and calculated in the checkout
- International shipping also available
Australian Hassle Free Warranty
Australian Hassle Free Warranty
All CCT Stage1 & Stage2 turbochargers come with a 24 Month Warranty and are backed by our Lifetime Rebuild Guarantee.
𝐒𝐓𝐀𝐆𝐄 𝟐 CCT Upgrade Hi-Flow Turbo Charger To Suit Nissan Navara D40...
🛡️ CCT Quality Standards
Description
Description
Practical Power Meets Daily Reliability: CCT Stage 2 Technology
Enhance your Nissan Navara D40 without compromising on daily driveability. Precision-engineered in Melbourne, Australia, our CCT Stage 2 Turbocharger is built with a focus on delivering responsive, usable power under maximum reliability. It offers the perfect balance of performance and everyday durability for towing, highway driving, and off-road use.
🚀 Key Performance Highlights
- Performance Design MFS Billet Compressor Wheel: Larger and more efficient than Stage 1, CNC-machined to optimize air induction for responsive, real-world power delivery.
- Increased Boost Capacity: Safe and reliable operation up to 24 PSI (Factory is ~16 PSI).
- Australian Built & Calibrated: Each unit is high-speed VSR balanced and air-flow calibrated in-house in Melbourne.
- Direct Bolt-On: 100% fitment compatibility with no tuning or modifications required.
🛠️ Turbocharger Specifications
| Turbo Model | GT2056V |
| Part Number | 769708-0001, 769708-0002, 769708-0003, 769708-5004, 769708-1, 769708-2, 769708-3, 769708-4, 769708-5001, 769708-5002, 769708-5003, 769708-5004, 769708-5001S, 769708-5002S, 769708-5003S, 769708-5004S, 769708-5001W, 767720-0001, 767720-5001S, 767720-5001, 767720-1, 767720-0002, 767720-5002S, 767720-5002, 767720-2, 767720-0003, 767720-5003S, 767720-5003, 767720-3, 767720-0004, 767720-5004, 767720-4 |
| OEM Part Number | 14411EC00B, 14411-EC00B, 14411EC00C, 14411-EC00C, 14411EC00E, 14411-EC00E, JIC02166I, 14411EB70A, 14411EB70B, 14411EB70C, 14411EB70D, 14411EB71A, 14411EB71B, 14411EB71C, 14411EB71D, 14411-EB70A, 14411-EB70B, 14411-EB70C, 14411-EB70D, 14411-EB71A, 14411-EB71B, 14411-EB71C, 14411-EB71D |
| Cooling Type | Water and Oil Cooled |
| Actuator | Vacuum Actuator Included |
| Gaskets | Free Gasket Set Included |
🚐 Vehicle Fitment Guide ▼
| Vehicle | Year Range | Engine | Fitment Note |
|---|---|---|---|
| Nissan Navara D40 128kw | 2007 - 2015 | YD25 2.5L | IMPORTANT: This turbo will be the correct fit for Navara D40 or Pathfinder R51 IF your old turbo has a 4-bolt turbine to exhaust manifold flange AND uses a vacuum actuator. Please verify before ordering. |
| Nissan Pathfinder R51 128kw | 2007 - 2013 | YD25 2.5L | |
| Nissan Navara RX, ST-X D40 126kw | 2008 - 2015 | YD25 2.5L |
🛡️ CCT Performance Upgrade Matrix ▼
| Technical Specs | OEM Standard | CCT Stage 1 | CCT Stage 1 Plus | CCT Stage 2 |
|---|---|---|---|---|
| Compressor Wheel | Standard Cast Aluminum | Slim Hub, High Blades Performance Design Billet | 2mm Bigger Performance Design Billet | 4mm Bigger Performance Design Billet |
| Turbine Wheel | 9 Blades | 9 Blades | 9 Blades | 9 Blades |
| Thrust Bearing | Factory Bearing | Factory Bearing | 360 Degree HD Thrust Bearing | 360 Degree HD Thrust Bearing |
| Max Safe Boost | Up to 16 PSI | Up to 21 PSI | Up to 24 PSI | Up to 24 PSI |
❓ Frequently Asked Questions ▼
1. How do I know if this is the correct turbo for my Navara D40?
The easiest way to verify is to check your old turbo's exhaust manifold flange. This specific unit (769708) is for the 4-bolt flange version. If yours has a 3-bolt flange, this will not fit. Also, ensure your current turbo uses a vacuum-style actuator, not an electronic one.
2. Does this turbo fit the Spanish built (VSK) or Thai built (MNT) models?
Always check bolt flange and actuator type or send us your VIN number regardless of the build location to ensure 100% compatibility.
3. What is the benefit of the CCT Billet Wheel upgrade for my YD25 engine?
The YD25 is known for turbo lag. Our Performance Design MFS Billet Wheel is lighter and has a more aggressive aerodynamic profile. This allows for much faster spool-up, providing immediate throttle response and improved low-end torque for towing.
4. Is this a direct bolt-on replacement, or do I need to tune my car?
It is a 100% direct bolt-on. All mounting points for oil lines, coolant, and exhaust are identical to the factory unit. No ECU tuning is required for immediate power gains.
5. Does the turbo come with the vacuum actuator pre-installed and calibrated?
Yes, it comes fully assembled with a brand new, pre-calibrated vacuum actuator. It is ready to install straight out of the box with no manual adjustment needed.
6. What is the maximum safe boost this Stage 1 Plus/Stage 2 turbo can handle?
Designed with our Reinforced Heavy-Duty (HD) 360° Bearing System, CCT Stage 1 handles 21 PSI, while Stage 1 Plus and Stage 2 can safely sustain 24 PSI of boost under continuous load.
7. Is a gasket kit included in the box?

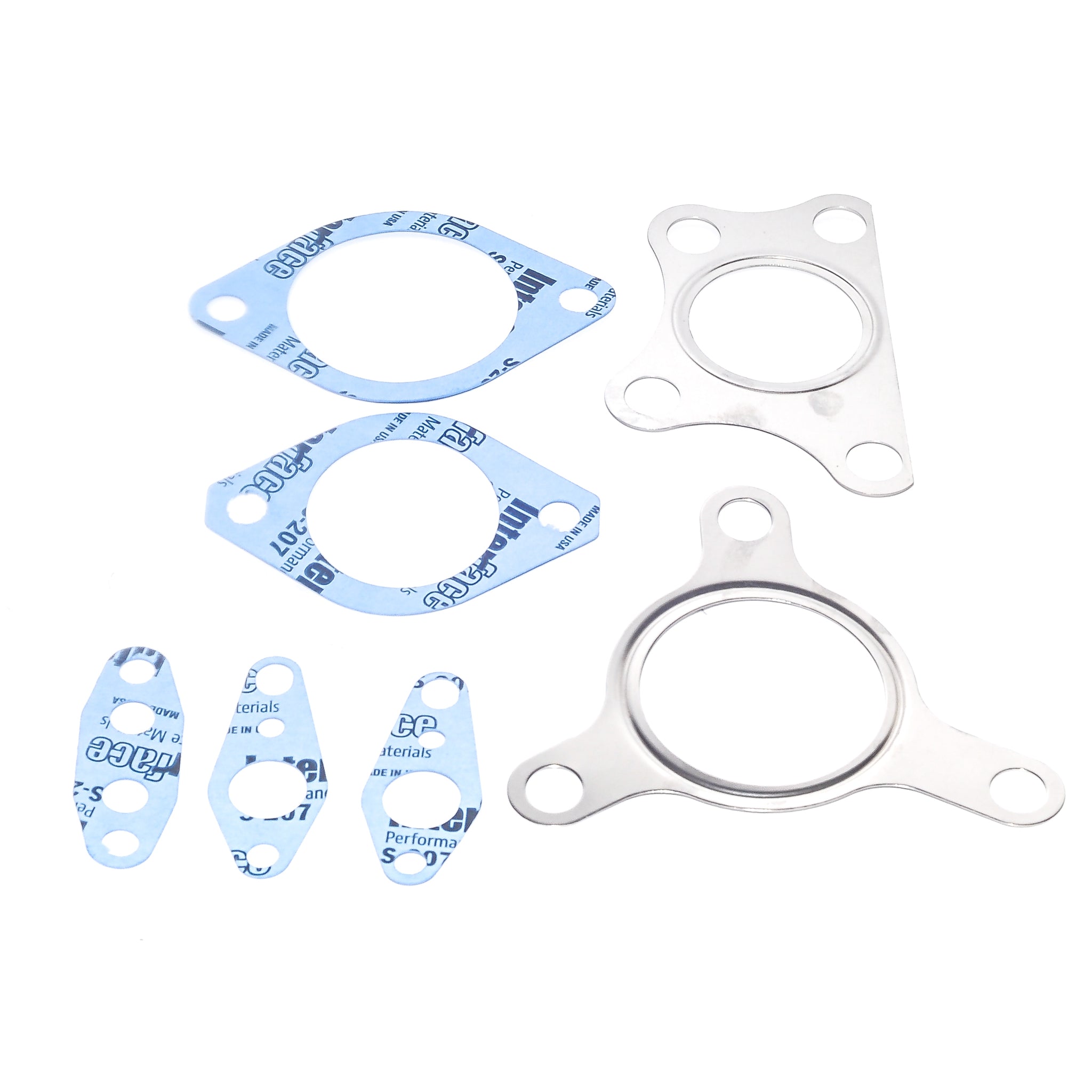

Yes, this turbo comes with a free set of gaskets as photo shows, ensuring a leak-free installation on day one.
8. Should I replace the turbo oil feed line at the same time?
Highly recommended. Carbon buildup in the factory oil feed line is a common cause of failure. A new line ensures clean lubrication and protects your investment.
9. Where are CCT turbos built and what is the warranty?
All CCT turbos are assembled, high-speed VSR balanced, and calibrated in our Melbourne facility. We provide a comprehensive 24-Month Australian Replacement Warranty.
10. Do you provide any ongoing support after installation?
Yes, being Melbourne-based, we provide direct technical support. Plus, we offer a life-time cost price repair service for all our CCT Turbos.
Please confirm part numbers prior to ordering.
If you are unsure, feel free to contact us.
