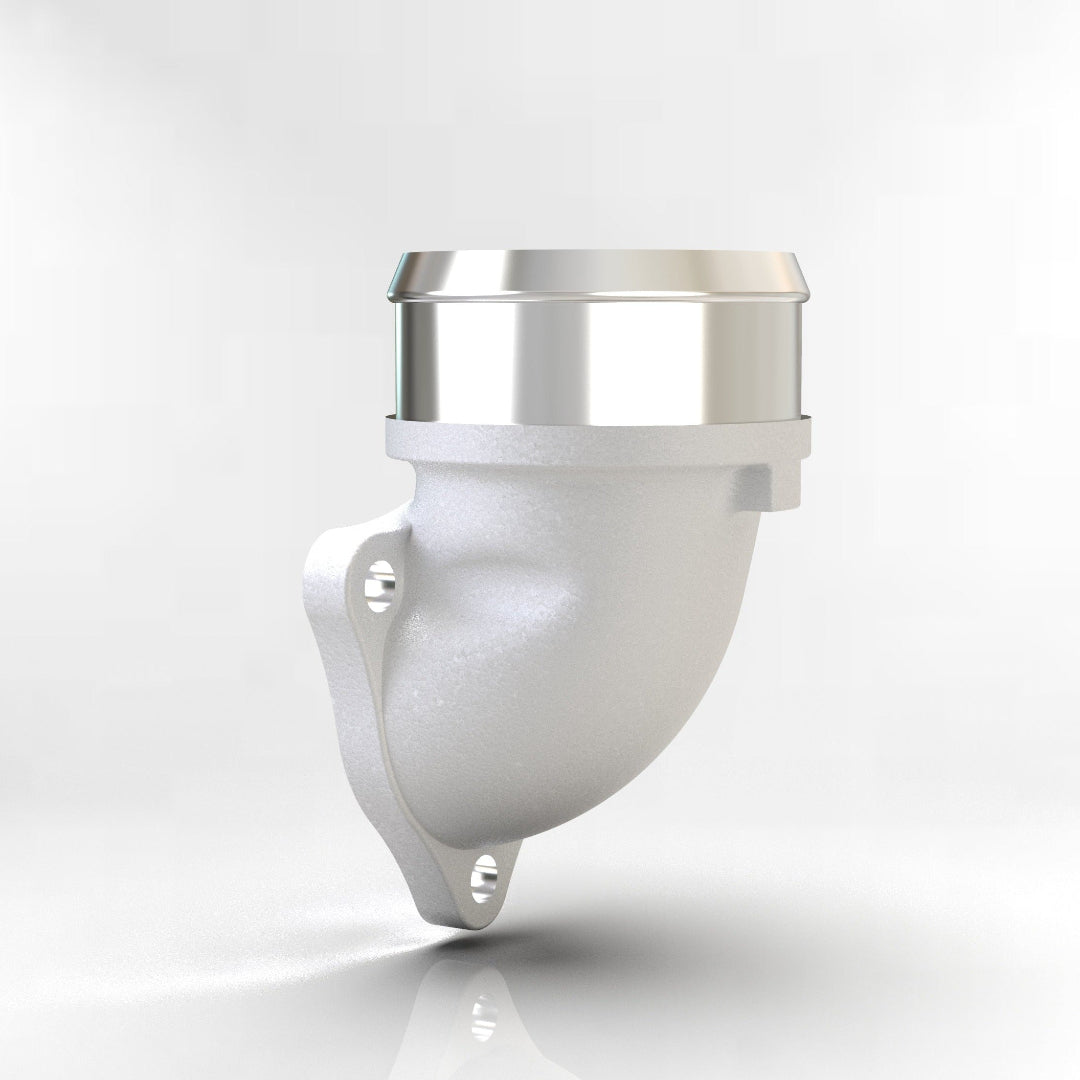

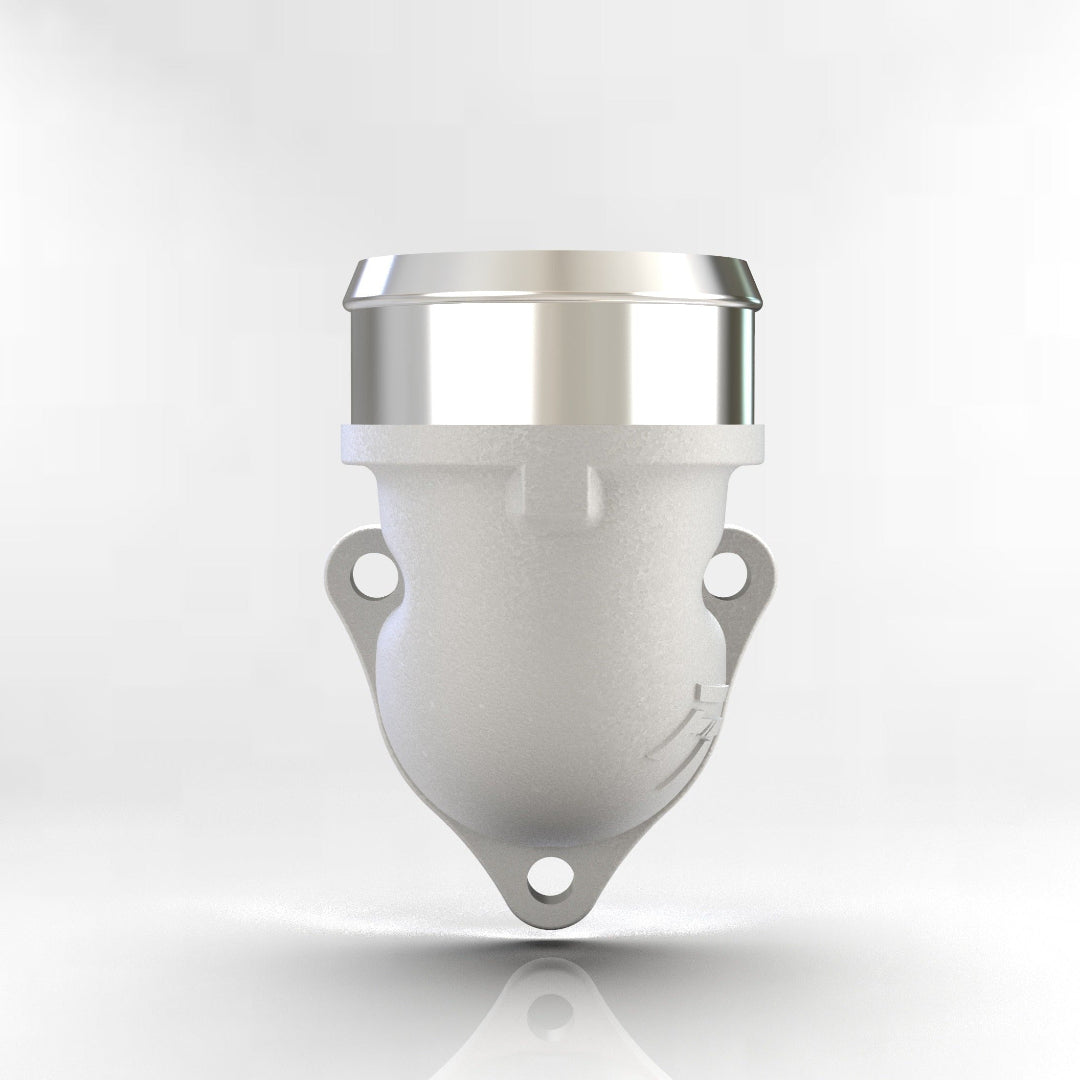

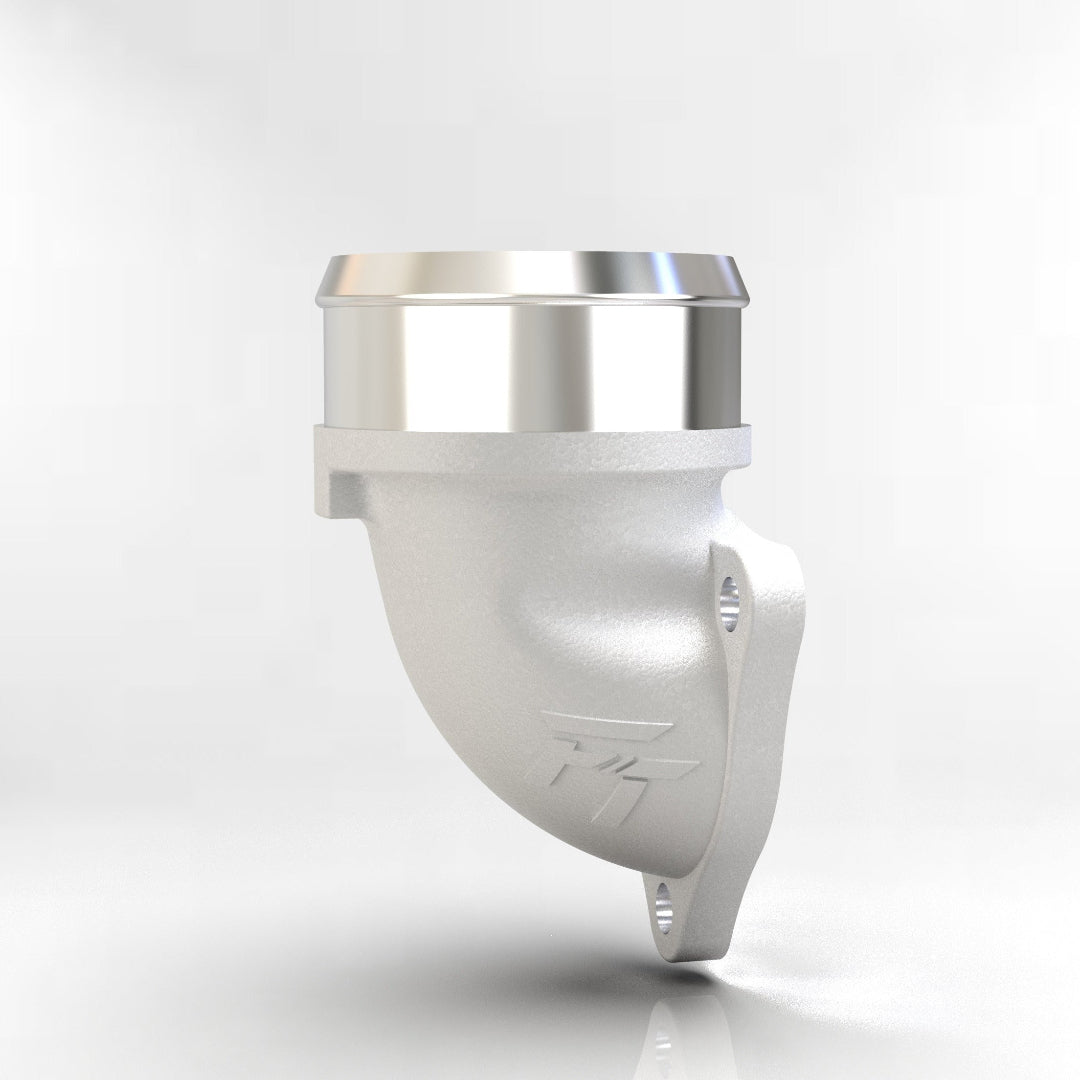

TILLIX Hi-Flow 3" Turbo Inlet Elbow for Nissan Patrol GU ZD30

TILLIX have created a 3" turbo inlet elbow for Nissan Patrol GU (Y61) with the 3.0L ZD30 turbo diesel engine. Compatible with both Di and CRD ZD30 turbo engines.

The highest flowing Nissan ZD30 turbo inlet elbow on the market.
Unlike fabricated components, there are no limits as to what can be designed and accounted for when producing quality cast products.

Tillix's custom designed, cast metal 3" air inlet elbow will suit ZD30 Di and CRD 2001 to 2016 fitted with GT2052V turbos and OEM/Factory alternators. Please note: aftermarket alternators can have clearance issues.

Ideally suited to the larger upgraded turbochargers with machined or ported compressor housings, this ZD30 turbocharger inlet elbow will fit a completely standard turbocharger and still provide a large increase in airflow to the compressor. The path of the airflow directly before the compressor wheel is the most critical in a turbocharged application.

High-flow 3-inch means less restriction!

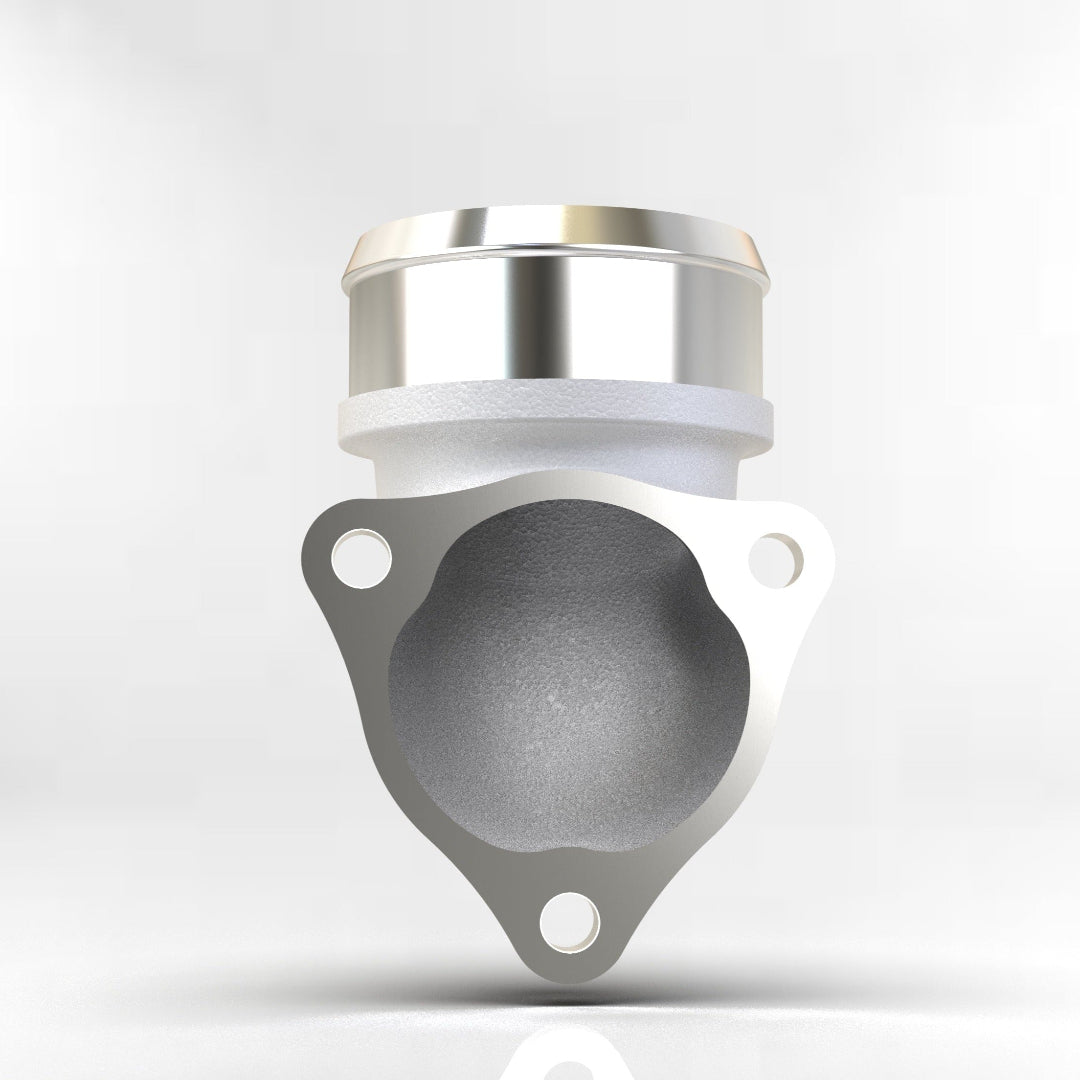

The outlet diameter at the compressor flange is 60mm, 28% larger than the factory turbo inlet size of 47mm.

Large diameter bends with the longest possible radius is the best way to ensure optimal airflow entering the turbo compressor housing.

We recommend 3″ intake pipework be used with this product to achieve peak flow and efficiency.

Demon Pro Parts make a 3" intake pipe kit that is perfect for use with this inlet elbow!

Why use a larger turbo intake elbow on a Nissan ZD30 engine?

Restriction on the air intake side of a turbocharger can cause premature failure of the thrust bearing. As the compressor tries to suck as much air into the turbo as possible it creates a load that is attempting to pull the compressor toward the compressor housing.

Having sufficient turbo intake sizing pre-turbo not only provides a performance benefit but also increases turbo longevity, especially in higher boost applications.

For this reason, we recommended that the intake pipework, airbox, and snorkel are well matched to this turbocharger air intake upgrade on applications that will be running higher boost pressure and power levels over a relatively stock vehicle.

Comes with:

- Stainless Steel Cap Screw Bolts
- Gasket

Tillix are an Aussie owned and based company that create high quality parts and complete kits.

Brand: TILLIX
SKU: TIL-ZD30-IN

Note: This application may use more than one turbocharger. Vehicle model, engine code and year alone do not confirm exact fitment. Exact fitment must be confirmed by matching the turbo part number or OEM part number. If the part number is unavailable, please provide the VIN or vehicle registration (rego) so our team can confirm the correct turbo.
