If your Toyota Hilux N70 KUN26 1KD is showing a P1251 code, it points to a problem with the turbocharger system. This specific diagnostic trouble code (DTC) often relates to the Turbocharger Stepper Motor Circuit Malfunction or an Overboost Condition. This issue can lead to reduced engine performance or limp mode, which are common concerns for Hilux owners.
Common Causes of P1251 Code on N70 Hilux KUN26 1KD

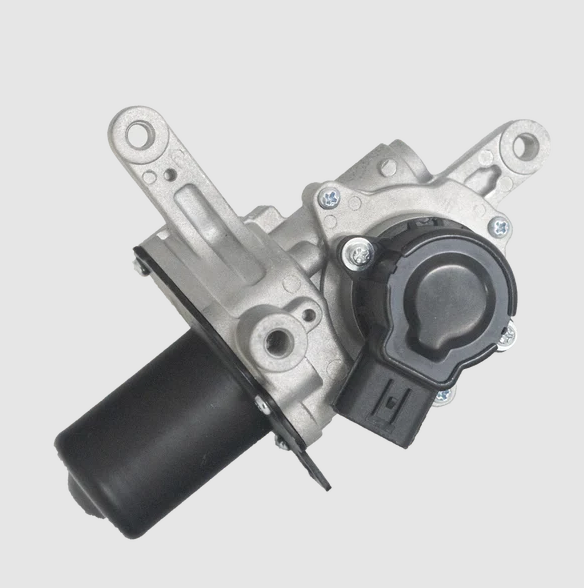

1. Turbocharger Stepper Motor Fault
The stepper motor, which adjusts the variable geometry turbocharger (VGT), may be malfunctioning or failing. The plastic gear inside tends to wear out and deteriorate over time.
2. Damaged Wiring or Connections
Faulty wiring or loose connectors in the turbocharger stepper motor circuit can trigger this error code.
3. Excessive Carbon Deposits
Carbon build-up in the turbo vanes or exhaust system can prevent smooth operation, causing overboost or underboost issues.
4. Faulty Sensors or ECU Issue
Problems with the manifold absolute pressure (MAP) sensor, boost pressure sensor, or engine control unit (ECU) can lead to improper turbo operation.
5. Turbo VNT
The Variable Nozzle Turbo (VNT) can get damaged due to excessive heat and back pressure inside the turbo turbine housing. To check for damage, disconnect the lever connecting the turbo arm to the actuator, then manually move the arm. If the arm feels notchy or stuck during movement, it’s highly likely that the VNT inside is damaged.
Symptoms of P1251 Code on Toyota Hilux N70 KUN26 1KD
· Reduced Power: The vehicle may go into limp mode, reducing engine performance.
· Check Engine Light (CEL): The dashboard warning light will illuminate.
· Poor Acceleration: A noticeable drop in turbo boost and sluggish performance.
How to Fix the P1251 Code on Toyota Hilux N70 KUN26 1KD
1. Inspect Wiring and Connections
Check the turbocharger stepper motor wiring and connectors for damage or corrosion. Repair or replace as necessary.
2. Clean or Replace Turbo Actuator
If the actuator is stuck, clean it (WD40) to remove carbon deposits or replace it if faulty.
3. Test the Turbocharger Stepper Motor
Use a diagnostic tool to test the stepper motor. Replace it if it fails functionality tests.
4. Inspect and Clean Turbo Vanes
Carbon build-up in the variable geometry turbo vanes can cause sticking. Clean the turbocharger thoroughly to restore proper movement.
5. Inspect and Replace Sensors if Necessary
Verify the operation of the MAP sensor and boost pressure sensor. Replace faulty sensors to ensure accurate turbo control.
6. Replace the Turbocharger
In severe cases where the turbocharger is damaged or excessively worn, replacement may be necessary.
Professional Assistance for Toyota Hilux N70 KUN26 1KD
If troubleshooting doesn't resolve the P1251 code or if you're unsure of the problem, it’s best to consult a professional mechanic or Toyota specialist. They can perform advanced diagnostics to identify and fix the root cause efficiently.
By addressing the P1251 error promptly, you can restore the performance of your Toyota Hilux N70 KUN26 1KD and prevent further damage to your turbocharger system.
