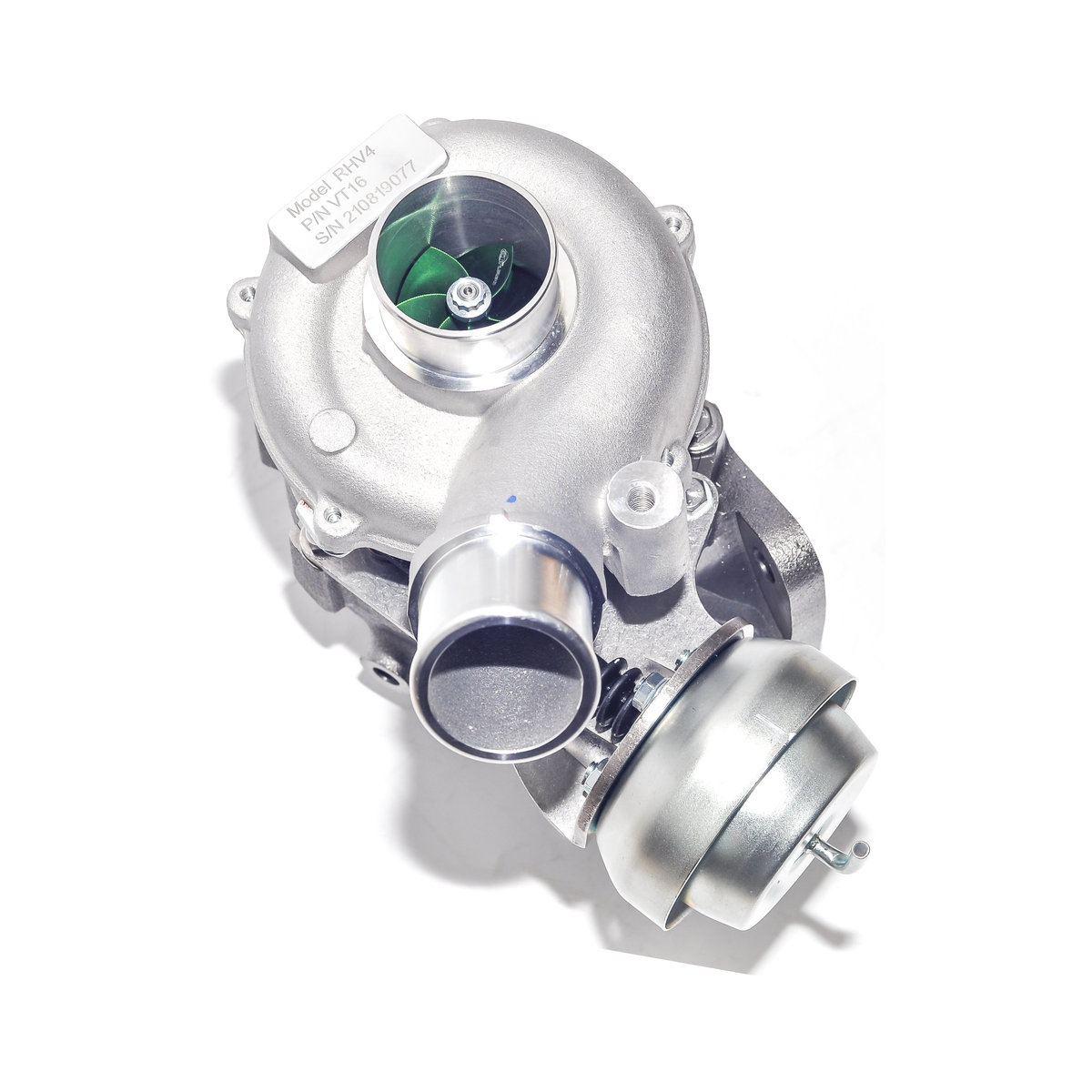

CCT Stage 2 Hi-Flow Billet Turbo for Mitsubishi Triton MN Challenger PB PC 2.5L (1515A170 / VT16)
Pickup available at CCT Turbo
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
Address:
Factory 1, 107 Wells Road, Chelsea Heights VIC 3196
Business hours:
8:30am-5:00pm Mon-Fri
(Excluding Public holidays)
Delivery and Shipping
Delivery and Shipping
- Shipping costs are calculated in the checkout.
- Free standard shipping for all orders over $350 via Australia Post
(Only available to Australian residents) - Express shipping is available and calculated in the checkout
- International shipping also available
Australian Hassle Free Warranty
Australian Hassle Free Warranty
All CCT Stage1 & Stage2 turbochargers come with a 24 Month Warranty and are backed by our Lifetime Rebuild Guarantee.
CCT Stage 2 Hi-Flow Billet Turbo for Mitsubishi Triton MN Challenge...
CCT Quality Standards
Product Overview
CCT Stage 2 Turbocharger Upgrade for Mitsubishi Applications
The CCT Stage 2 Turbocharger Upgrade is engineered for Mitsubishi Triton MN, Mitsubishi Challenger PC and Mitsubishi Challenger PB applications powered by the 4D56T 2.5L DOHC Common Rail Injection (131kw) engine.
Developed for higher-flow performance builds, the CCT Stage 2 is intended for applications using supporting ECU calibration and suitable engine modifications where increased airflow and greater peak power potential are required.
Engineering upgrades include +4mm Billet + Slim Hub + High Blades + Extended Tips, combined with Factory Turbine Wheel and 360° Thrust Bearing . Together, these changes are designed to improve compressor efficiency, mid-range response and durability under increased load, with a listed boost capability of up to 25 PSI.
Complete technical specifications and vehicle compatibility are provided below, together with a performance comparison where available.
Turbocharger Specifications
VT16 / V41VAT-S0022B / V41VATS0022B + 1 more
Vehicle Fitment Guide
Check the vehicle, chassis, year and engine details below before ordering.
| Vehicle | Chassis / Series | Year Range | Engine | Fitment Notes |
|---|---|---|---|---|
| MitsubishiTriton Mitsubishi Triton MN 4D56 (2009-2015) | MN KB4 | 2009–2015 | 4D56T 2.5L DOHC Common Rail Injection (131kw) | Confirm part numbers before ordering. |
| MitsubishiChallenger Mitsubishi Challenger PC 4D56 (2013-2015) | PC KH4 | 2013–2015 | 4D56T 2.5L DOHC Common Rail Injection (131kw) | Confirm part numbers before ordering. |
| MitsubishiChallenger Mitsubishi Challenger PB 4D56 (2009-2013) | PB KH4 | 2009–2013 | 4D56T 2.5L DOHC Common Rail Injection (131kw) | Confirm part numbers before ordering. |
CCT Performance Upgrade Comparison
Compare the available CCT turbo upgrade stages for this turbo family. Select a stage heading to view the matching product.
| Technical Specification | Standard Turbo OEM Replacement | Stage 1 Daily Performance | Stage 2 High-Flow PerformanceCurrent |
|---|---|---|---|
| Compressor Wheel | Factory Cast Compressor Wheel | Billet + Slim Hub + High Blades + Extended Tips | +4mm Billet + Slim Hub + High Blades + Extended Tips |
| Turbine Wheel | Factory Turbine Wheel | Factory Turbine Wheel | Factory Turbine Wheel |
| Thrust Bearing | 360° Thrust Bearing | 360° Thrust Bearing | 360° Thrust Bearing |
| Recommended Maximum Boost | Up to 16 PSI | Up to 20 PSI | Up to 25 PSI |
Boost figures are general capability references. Final boost targets should be set to suit the engine condition, fuel system, supporting modifications and ECU calibration.
Frequently Asked Questions
Will this turbo fit my vehicle?
This turbo is listed for Mitsubishi Triton MN, Mitsubishi Challenger PC and Mitsubishi Challenger PB applications. Confirm the full chassis, year, engine and part-number details in the Vehicle Fitment Guide before ordering.
What OEM turbo numbers does this replace?
The primary OEM reference is 1515A170. Compatible alternative references include .
Is this a direct bolt-on replacement?
Yes. This turbo is supplied as a direct bolt-on replacement for the listed applications, using the factory mounting locations and connections. Correct installation procedures and root-cause checks should still be completed before fitting.
What is included with the turbo?
The package includes the complete turbocharger assembly, the matching actuator and an installation gasket kit.
What engineering specifications does this Stage 2 turbo use?
Compressor wheel: +4mm Billet + Slim Hub + High Blades + Extended Tips. Turbine wheel: Factory Turbine Wheel. Thrust bearing: 360° Thrust Bearing.
What boost level is this turbo designed to support?
This Stage 2 turbo is designed to support up to 25 PSI. Final boost targets must suit the engine condition, fuel system, supporting modifications and ECU calibration.
Does this turbo include an actuator?
Yes. A matching actuator is included with the supplied unit. Actuator type: Vacuum Actuator.
Is ECU tuning required?
ECU tuning and suitable supporting modifications are recommended to achieve the intended higher-flow performance safely.
Which CCT turbo stage should I choose?
Stage 2 is intended for higher-flow performance builds with supporting modifications and suitable ECU calibration.
Use the CCT Performance Upgrade Comparison on this page to compare the available stages for this turbo family.
What warranty and technical support are included?
CCT turbochargers are backed by a 24-month Australian warranty, local technical support and post-warranty rebuild assistance subject to inspection, parts availability and warranty terms.
