CCT Stage 1 High-Flow Turbocharger To Suit Ford Ranger & Mazda ...
CCT Quality Standards
Product Overview
CCT Stage 1 Turbocharger Upgrade for Compatible Vehicle Applications
The CCT Stage 1 Turbocharger Upgrade is engineered for Ford Ranger PK, Ford Ranger PJ and Mazda BT-50 UN applications powered by the WEAT 3.0L DOHC Direct Injection (115kw) engine.
Designed as a responsive daily-performance upgrade, the CCT Stage 1 improves airflow and usable response while retaining near-OEM drivability, fitment and installation characteristics.
Engineering upgrades include Billet + Slim Hub + High Blades + Extended Tips, combined with Factory Turbine Wheel and 360° Thrust Bearing . Together, these changes are designed to improve compressor efficiency, mid-range response and durability under increased load, with a listed boost capability of up to 18 PSI.
Complete technical specifications and vehicle compatibility are provided below, together with a performance comparison where available.
Turbocharger Specifications
VAD20011 / VCD20011 / VDD2011 + 13 more
Vehicle Fitment Guide
Check the vehicle, chassis, year and engine details below before ordering.
| Vehicle | Chassis / Series | Year Range | Engine | Fitment Notes |
|---|---|---|---|---|
| FordRanger Ford Ranger PK WEAT (2009-2011) | PK S2E9 | 2009–2011 | WEAT 3.0L DOHC Direct Injection (115kw) | Confirm part numbers before ordering. |
| FordRanger Ford Ranger PK WEAT (2009-2011) | PK S1E9 | 2009–2011 | WEAT 3.0L DOHC Direct Injection (115kw) | Confirm part numbers before ordering. |
| FordRanger Ford Ranger PJ WEAT (2006-2009) | PJ SFE9 | 2006–2009 | WEAT 3.0L DOHC Direct Injection (115kw) | Confirm part numbers before ordering. |
| FordRanger Ford Ranger PJ WEAT (2006-2009) | PJ SEE9 | 2006–2009 | WEAT 3.0L DOHC Direct Injection (115kw) | Confirm part numbers before ordering. |
| FordRanger Ford Ranger PJ WEAT (2006-2009) | PJ SAE9 | 2006–2009 | WEAT 3.0L DOHC Direct Injection (115kw) | Confirm part numbers before ordering. |
| FordRanger Ford Ranger PJ WEAT (2006-2009) | PJ S2E9 | 2006–2009 | WEAT 3.0L DOHC Direct Injection (115kw) | Confirm part numbers before ordering. |
| FordRanger Ford Ranger PJ WEAT (2006-2009) | PJ S1E9 | 2006–2009 | WEAT 3.0L DOHC Direct Injection (115kw) | Confirm part numbers before ordering. |
| MazdaBT-50 Mazda BT-50 UN WEAT (2006-2011) | UN UNY0E | 2006–2011 | WEAT 3.0L DOHC Direct Injection (115kw) | |
| FordRanger Ford Ranger PK WEAT (2009-2011) | PK SFE9 | 2009–2011 | WEAT 3.0L DOHC Direct Injection (115kw) | Confirm part numbers before ordering. |
| FordRanger Ford Ranger PK WEAT (2009-2011) | PK SEE9 | 2009–2011 | WEAT 3.0L DOHC Direct Injection (115kw) | Confirm part numbers before ordering. |
| FordRanger Ford Ranger PK WEAT (2009-2011) | PK SAE9 | 2009–2011 | WEAT 3.0L DOHC Direct Injection (115kw) | Confirm part numbers before ordering. |
| FordRanger Ford Ranger PK WLAT (2009-2011) | PK SBE1 | 2009–2011 | WLAT 2.5L DOHC Common Rail Injection (105kw) | Confirm part numbers before ordering. |
| FordRanger Ford Ranger PK WLAT (2009-2011) | PK SAE1 | 2009–2011 | WLAT 2.5L DOHC Common Rail Injection (105kw) | Confirm part numbers before ordering. |
| FordRanger Ford Ranger PJ WLAT (2006-2009) | PJ SBE1 | 2006–2009 | WLAT 2.5L DOHC Common Rail Injection (105kw) | Confirm part numbers before ordering. |
| FordRanger Ford Ranger PJ WLAT (2006-2009) | PJ SAE1 | 2006–2009 | WLAT 2.5L DOHC Common Rail Injection (105kw) | Confirm part numbers before ordering. |
| MazdaBT-50 Mazda BT-50 UN WLAT (2006-2011) | UN UNY0W | 2006–2011 | WLAT 2.5L DOHC Common Rail Injection (105kw) |
CCT Performance Upgrade Comparison
Compare the available CCT turbo upgrade stages for this turbo family. Select a stage heading to view the matching product.
| Technical Specification | Standard Turbo OEM Replacement | Stage 1 Daily PerformanceCurrent |
|---|---|---|
| Compressor Wheel | Factory Cast Compressor Wheel | Billet + Slim Hub + High Blades + Extended Tips |
| Turbine Wheel | Factory Turbine Wheel | Factory Turbine Wheel |
| Thrust Bearing | 360° Thrust Bearing | 360° Thrust Bearing |
| Recommended Maximum Boost | Up to 13 PSI | Up to 18 PSI |
Boost figures are general capability references. Final boost targets should be set to suit the engine condition, fuel system, supporting modifications and ECU calibration.
Frequently Asked Questions
Will this turbo fit my vehicle?
This turbo is listed forFord Ranger PK , Ford Ranger PJ and Mazda BT-50 UN applications. Confirm the full chassis, year, engine and part-number details in the Vehicle Fitment Guide before ordering.
What OEM turbo numbers does this replace?
The primary OEM reference isWE0113700F .Compatible alternative references includeWEO113700F / WE01-13700F .
Is this a direct bolt-on replacement?
Yes. This turbo is supplied as a direct bolt-on replacement for the listed applications, using the factory mounting locations and connections. Correct installation procedures and root-cause checks should still be completed before fitting.
What is included with the turbo?

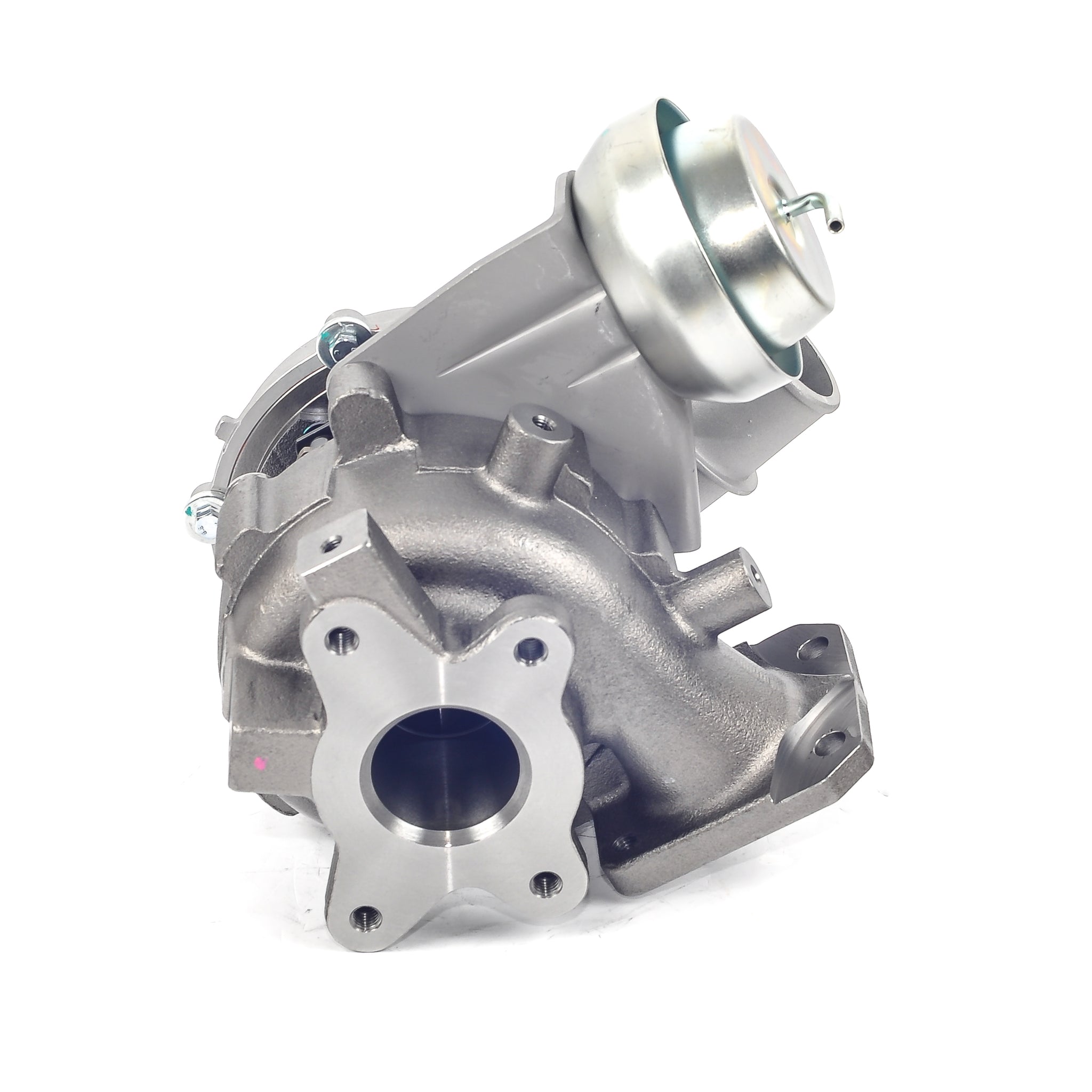

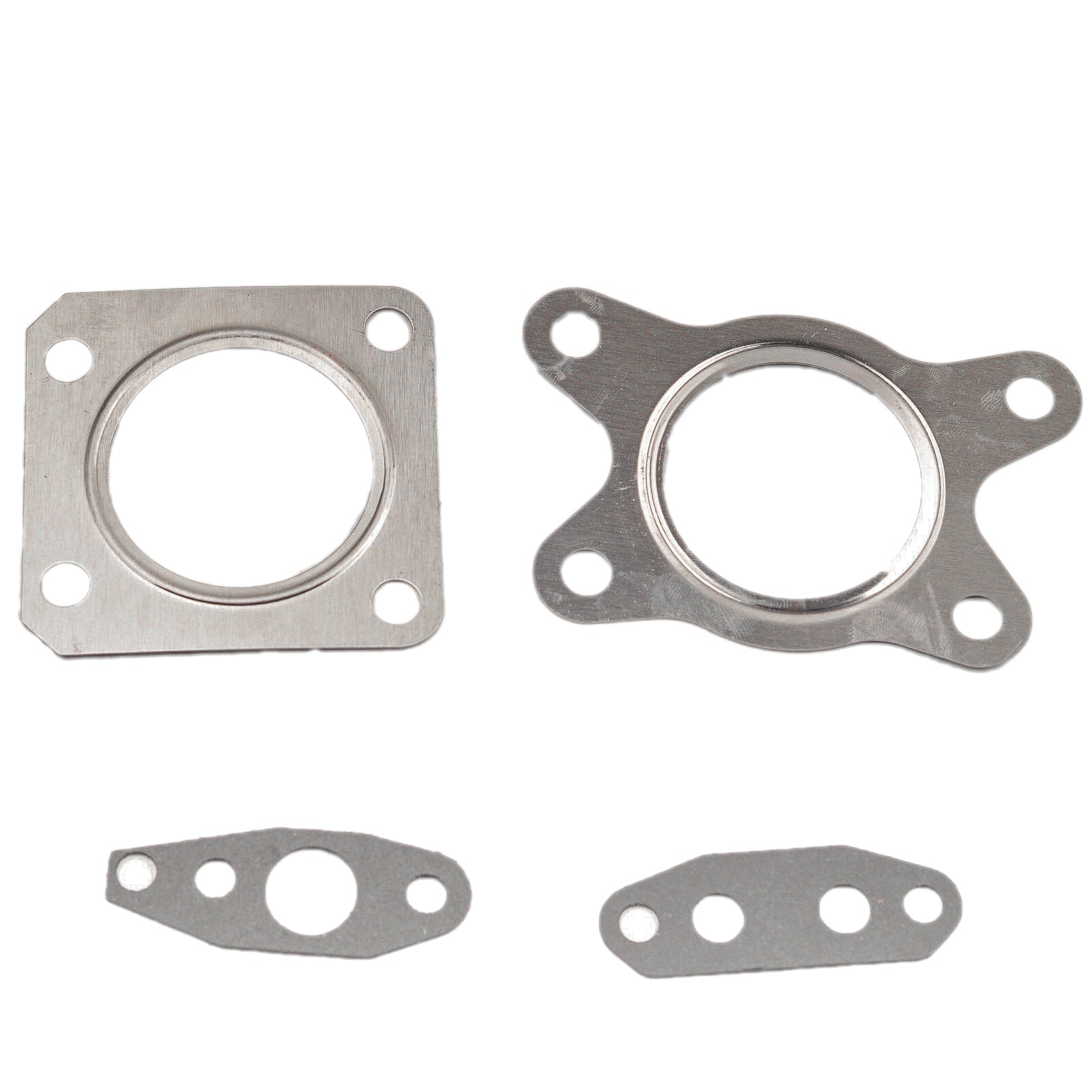

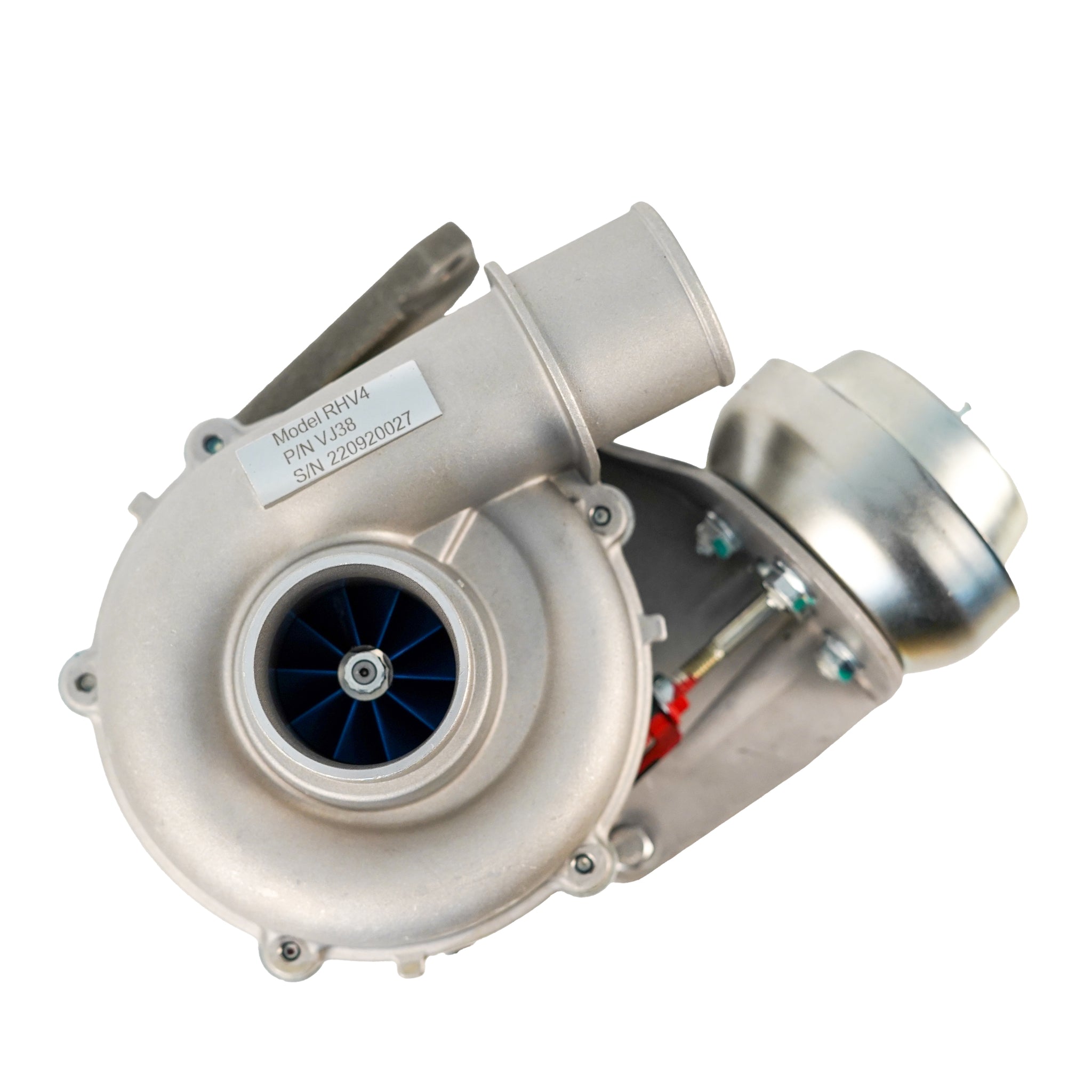

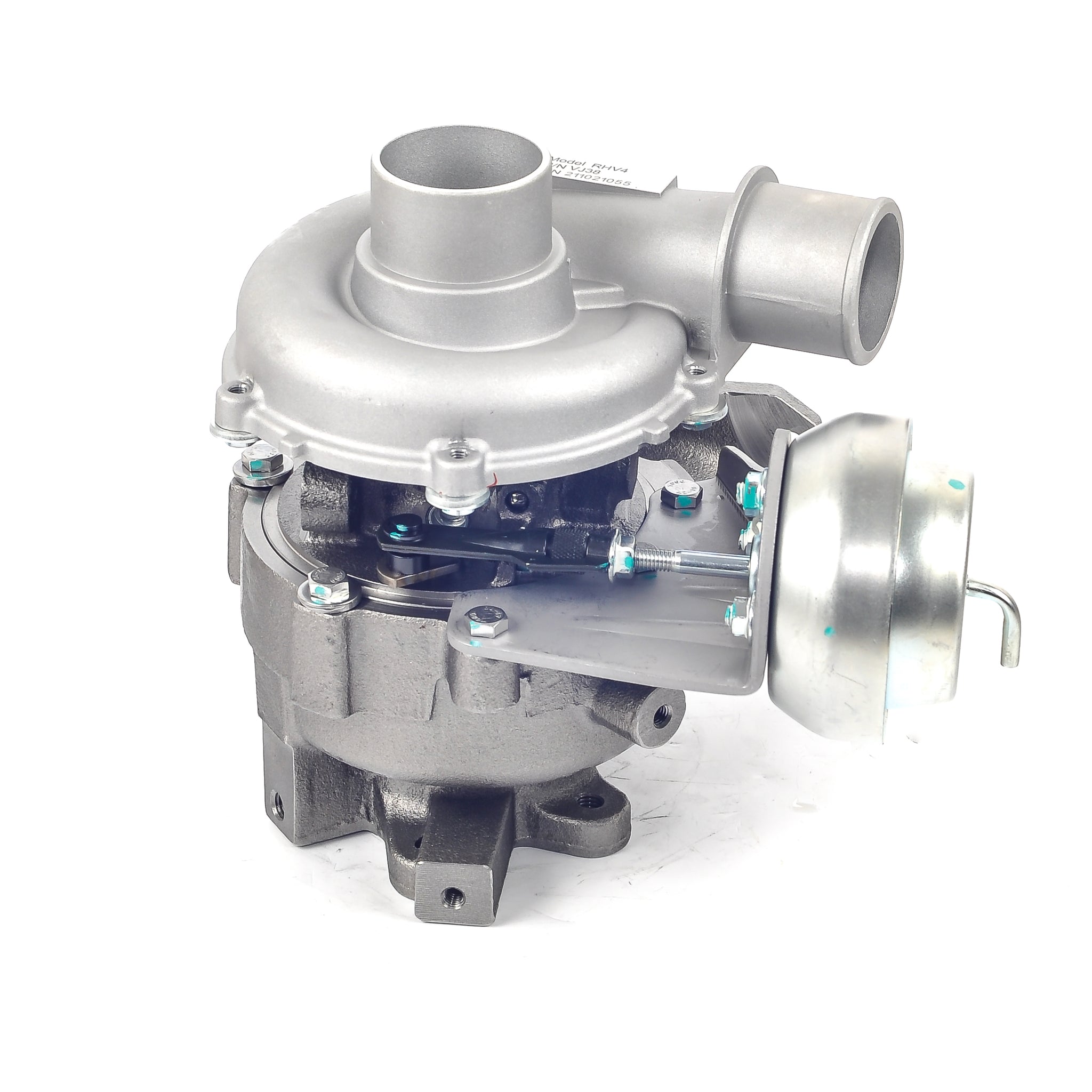

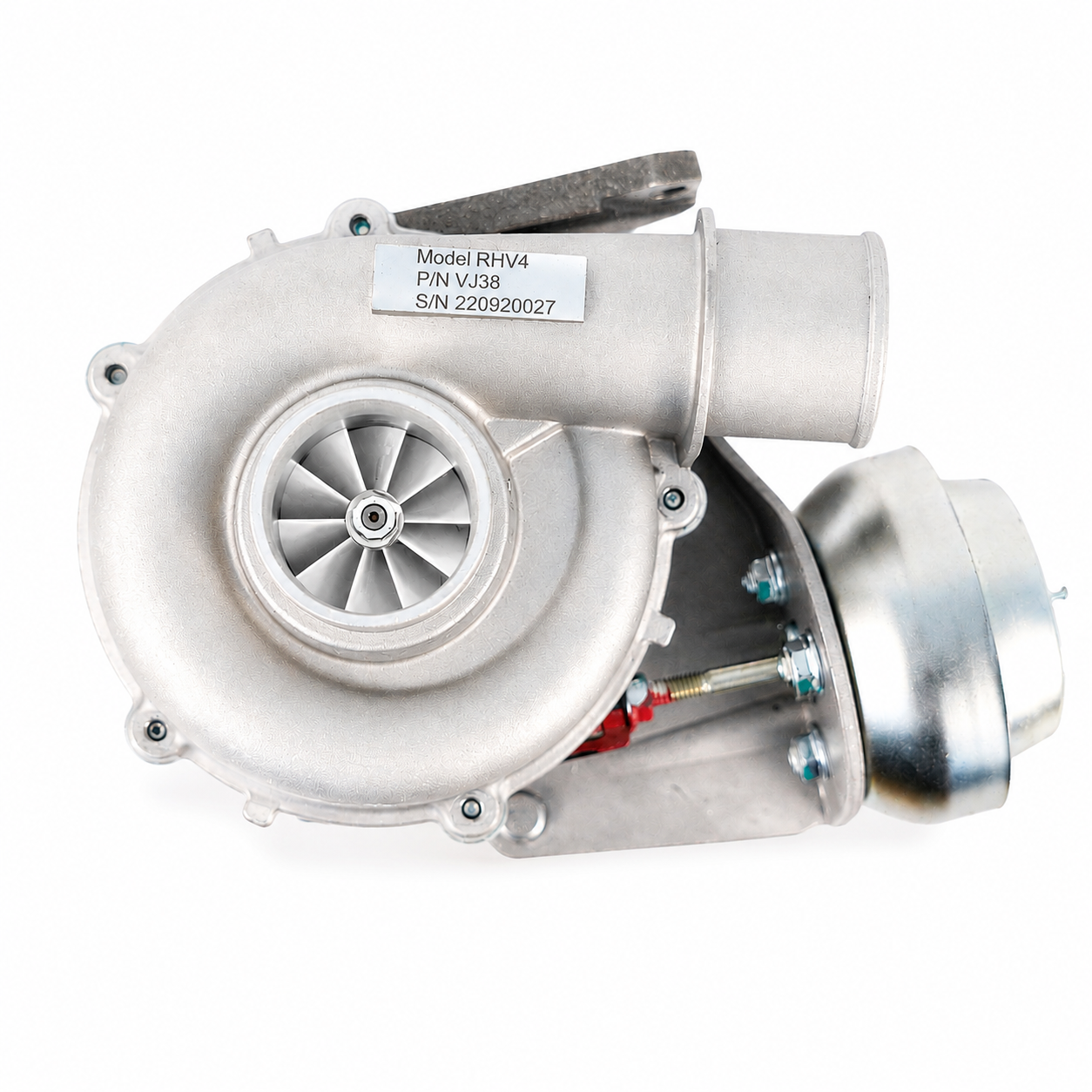

The package includes the complete turbocharger assembly, the matching actuator and an installation gasket kit.
What engineering specification does this Stage 1 use?
Compressor wheel: Billet + Slim Hub + High Blades + Extended Tips.Turbine wheel: Factory Turbine Wheel.Thrust bearing: 360° Thrust Bearing.
What boost level is this turbo designed to support?
The listed reference capability for this Stage 1 is up to 18 PSI. Final boost targets must suit the engine condition, fuel system, supporting modifications and ECU calibration.
Does this turbo include an actuator?
Yes. The supplied unit includes Vacuum Actuator.
Is ECU tuning required?
ECU tuning is not always required for installation, although a suitable calibration can help optimise the additional airflow and performance.
Which CCT turbo stage should I choose?
Stage 1 is suited to drivers wanting a responsive daily performance upgrade while retaining near-OEM drivability.
Use the CCT Performance Upgrade Comparison on this page to compare the available stages for this turbo family.
What warranty and technical support are included?
CCT turbochargers are backed by a 24-month Australian warranty, local technical support and post-warranty rebuild assistance subject to inspection, parts availability and warranty terms.
