CCT Stage1 High-Flow Upgrade Turbo for Toyota Hilux / Prado / Surf...
CCT Quality Standards
Product Overview
CCT Stage 1 Turbocharger Upgrade for Toyota Applications
The CCT Stage 1 Turbocharger Upgrade is engineered for Toyota 4Runner KZN185, Toyota 4Runner KZN130, Toyota Landcruiser Prado KZJ120 and other compatible Toyota applications powered by the 1KZTE 3.0L SOHC Electronic Fuel Injection (85kw) engine.
Designed as a responsive daily-performance upgrade, the CCT Stage 1 improves airflow and usable response while retaining near-OEM drivability, fitment and installation characteristics.
Engineering upgrades include Billet + Slim Hub + High Blades + Extended Tips, combined with Factory Turbine Wheel and 360° Thrust Bearing . Together, these changes are designed to improve compressor efficiency, mid-range response and durability under increased load, with a listed boost capability of up to 13 PSI.
Complete technical specifications, vehicle compatibility and performance comparison are provided below.
Turbocharger Specifications
Vehicle Fitment Guide
Check the vehicle, chassis, year and engine details below before ordering.
| Vehicle | Chassis / Series | Year Range | Engine | Fitment Notes |
|---|---|---|---|---|
| Toyota4Runner Toyota 4Runner KZN185 1KZTE (1995-2000) | KZN185 KZN185R | 1995–2000 | 1KZTE 3.0L SOHC Electronic Fuel Injection (85kw) | Confirm part numbers before ordering. |
| Toyota4Runner Toyota 4Runner KZN130 1KZTE (1993-1995) | KZN130 KZN130R | 1993–1995 | 1KZTE 3.0L SOHC Electronic Fuel Injection (85kw) | Confirm part numbers before ordering. |
| ToyotaLandcruiser Prado Toyota Landcruiser Prado KZJ120 1KZTE (2003-2006) | KZJ120 KZJ120R | 2003–2006 | 1KZTE 3.0L SOHC Electronic Fuel Injection (96kw) | Confirm part numbers before ordering. |
| ToyotaLandcruiser Prado Toyota Landcruiser Prado KZJ95 1KZTE (2000-2003) | KZJ95 KZJ95R | 2000–2003 | 1KZTE 3.0L SOHC Electronic Fuel Injection (96kw) | Confirm part numbers before ordering. |
| ToyotaLandcruiser Prado Toyota Landcruiser Prado KZJ95 1KZTE (1996-2000) | KZJ95 KZJ95R | 1996–2000 | 1KZTE 3.0L SOHC Electronic Fuel Injection (104kw) | Confirm part numbers before ordering. |
| ToyotaLandcruiser Prado Toyota Landcruiser Prado KZJ95 1KZTE (1996-2000) | KZJ95 KZJ95R | 1996–2000 | 1KZTE 3.0L SOHC Electronic Fuel Injection (91kw) | Confirm part numbers before ordering. |
| ToyotaLandcruiser Prado Toyota Landcruiser Prado KZJ90 1KZTE (1996-2000) | KZJ90 KZJ90R | 1996–2000 | 1KZTE 3.0L SOHC Electronic Fuel Injection (104kw) | Confirm part numbers before ordering. |
| ToyotaLandcruiser Prado Toyota Landcruiser Prado KZJ78 1KZTE (1993-1996) | KZJ78 KZJ78R | 1993–1996 | 1KZTE 3.0L SOHC Electronic Fuel Injection (85kw) | Confirm part numbers before ordering. |
| ToyotaLandcruiser Prado Toyota Landcruiser Prado KZJ71 1KZTE (1993-1996) | KZJ71 KZJ71R | 1993–1996 | 1KZTE 3.0L SOHC Electronic Fuel Injection (85kw) | Confirm part numbers before ordering. |
| ToyotaHilux Surf Toyota Hilux Surf KZN185 1KZTE (1995-2000) | KZN185 KZN185R | 1995–2000 | 1KZTE 3.0L SOHC Electronic Fuel Injection (85kw) | Confirm part numbers before ordering. |
| ToyotaHilux Surf Toyota Hilux Surf KZN130 1KZTE (1993-1995) | KZN130 KZN130R | 1993–1995 | 1KZTE 3.0L SOHC Electronic Fuel Injection (85kw) | Confirm part numbers before ordering. |
| ToyotaHilux Toyota Hilux KZN165 1KZTE 1KZTE (1999-2005) | KZN165R KZN165 | 1999–2005 | 1KZTE 3.0L SOHC Electronic Fuel Injection (85kw) | Confirm part numbers before ordering. |
CCT Performance Upgrade Comparison
Compare the available CCT turbo upgrade stages for this turbo family. Select a stage heading to view the matching product.
| Technical Specification | Standard Turbo OEM Replacement | Stage 1 Daily PerformanceCurrent | Stage 2 High-Flow Performance |
|---|---|---|---|
| Compressor Wheel | Factory Cast Compressor Wheel | Billet + Slim Hub + High Blades + Extended Tips | +4mm Billet + Slim Hub + High Blades + Extended Tips |
| Turbine Wheel | Factory Turbine Wheel | Factory Turbine Wheel | 9-Blade Inconel 713C Hi-Flow Turbine Wheel |
| Thrust Bearing | 360° Thrust Bearing | 360° Thrust Bearing | Enhanced 360° Thrust Bearing |
| Recommended Maximum Boost | Up to 10 PSI | Up to 13 PSI | Up to 15 PSI |
Boost figures are general capability references. Final boost targets should be set to suit the engine condition, fuel system, supporting modifications and ECU calibration.
Frequently Asked Questions
Will this turbo fit my vehicle?
This turbo fits multiple compatible vehicle applications. Refer to the Vehicle Fitment Guide below and confirm the chassis code, production year, engine code and existing turbo part number before ordering.
What OEM turbo numbers does this replace?
The primary OEM reference is17201-67040 .Compatible alternative references include17201-67010 / 17201-67020 / 17201-67040 .
Is this a direct bolt-on replacement?
Yes. This turbo is supplied as a direct bolt-on replacement for the listed applications, using the factory mounting locations and connections. Correct installation procedures and root-cause checks should still be completed before fitting.
What is included with the turbo?

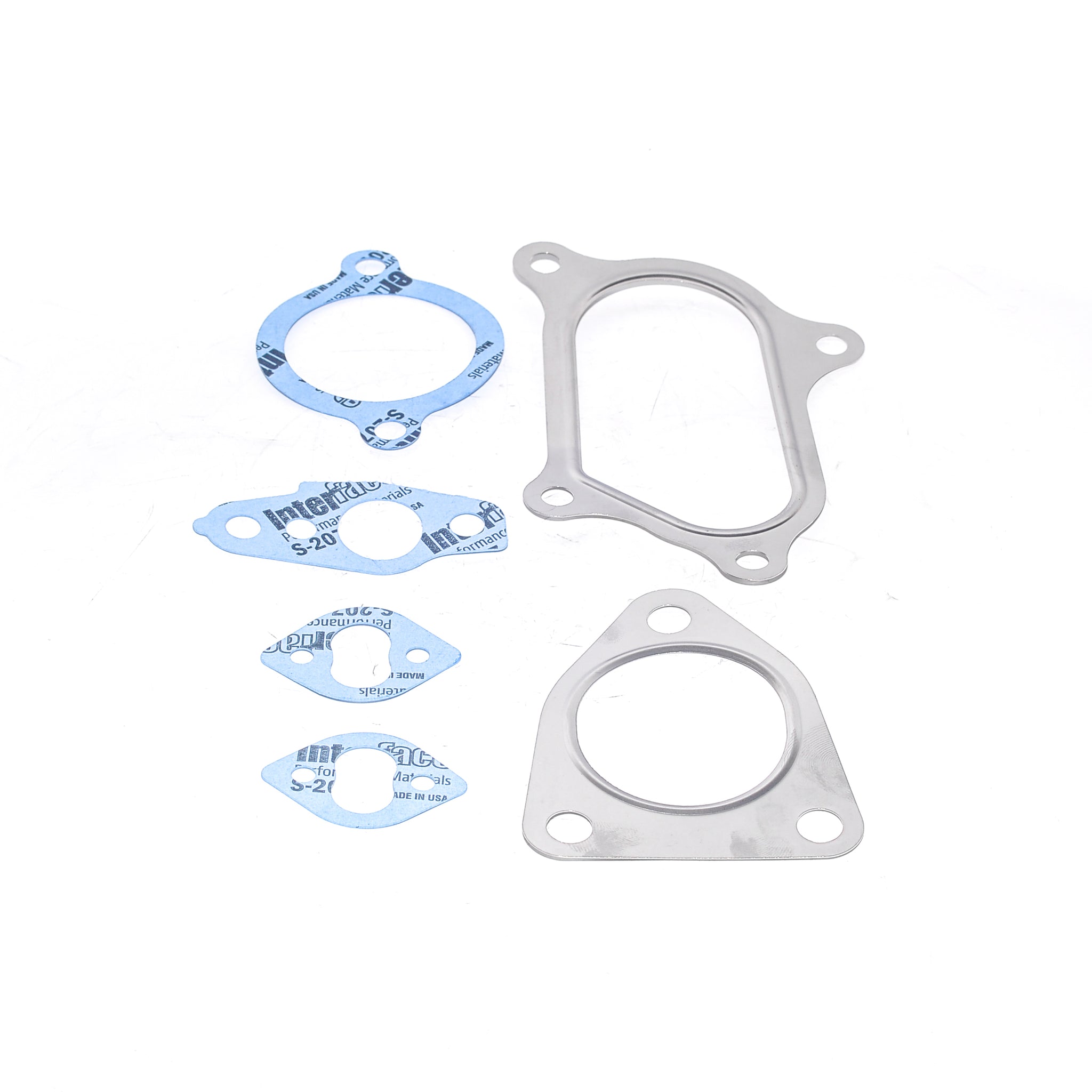

The package includes the complete turbocharger assembly, the matching actuator and an installation gasket kit.
What engineering specification does this Stage 1 use?
Compressor wheel: Billet + Slim Hub + High Blades + Extended Tips.Turbine wheel: Factory Turbine Wheel.Thrust bearing: 360° Thrust Bearing.
What boost level is this turbo designed to support?
The listed reference capability for this Stage 1 is up to 13 PSI. Final boost targets must suit the engine condition, fuel system, supporting modifications and ECU calibration.
Does this turbo include an actuator?
Yes.The supplied unit includes aPneumatic Wastegate Actuator .
Is ECU tuning required?
ECU tuning is not always required for installation, although a suitable calibration can help optimise the additional airflow and performance.
Which CCT turbo stage should I choose?
Stage 1 is suited to drivers wanting a responsive daily performance upgrade while retaining near-OEM drivability.
Use the CCT Performance Upgrade Comparison on this page to compare the available stages for this turbo family.
What warranty and technical support are included?
CCT turbochargers are backed by a 24-month Australian warranty, local technical support and post-warranty rebuild assistance subject to inspection, parts availability and warranty terms.
