Product Overview
CCT Stage 1 Plus Turbocharger Upgrade for Nissan Patrol GU ZD30 (1999–2017)
The CCT Stage 1 Plus Turbocharger Upgrade is engineered for the Nissan Patrol GU (Y61), built between 1999 and 2017, and powered by the ZD30 3.0L DI engine.
Positioned between a factory replacement and a full high-flow turbocharger, the CCT Stage 1 Plus is designed for stronger towing performance, improved throttle response and increased airflow while retaining OEM-style drivability and dependable road manners.
Engineering upgrades include +2mm Billet + Slim Hub + High Blades + Extended Tips, combined with Factory Turbine Wheel and Enhanced 360° Thrust Bearing . Together, these changes are designed to improve compressor efficiency, mid-range response and durability under increased load, with a listed boost capability of up to 24 PSI.
Complete technical specifications and vehicle compatibility are provided below, together with a performance comparison where available.
Turbocharger Specifications
11441-V040A / 14411-VC100 / 14411-VC200 + 3 more
705954-0008 / 705954-5008 / 705954-5008S + 36 more
Vehicle Fitment Guide
Check the vehicle, chassis, year and engine details below before ordering.
| Vehicle | Chassis / Series | Year Range | Engine | Fitment Notes |
|---|---|---|---|---|
| NissanPatrol Nissan Patrol GU Y61 ZD30 DI (1999-2003) | GU Y61 | 1999–2003 | ZD30 3.0L DI | |
| NissanPatrol Nissan Patrol GU Y61 ZD30 DI (2004-2006) | GU Y61 | 2004–2006 | ZD30 3.0L DI | Confirm part numbers before ordering. |
| NissanPatrol Nissan Patrol GU Y61 ZD30 CRD (2007-2017) | GU Y61 | 2007–2017 | ZD30 3.0L CRD | Confirm part numbers before ordering. |
CCT Performance Upgrade Comparison
Compare the available CCT turbo upgrade stages for this turbo family. Select a stage heading to view the matching product.
| Technical Specification | Standard Turbo OEM Replacement | Stage 1 Plus Towing & TouringCurrent | Stage 2 High-Flow Performance |
|---|---|---|---|
| Compressor Wheel | Factory Cast Compressor Wheel | +2mm Billet + Slim Hub + High Blades + Extended Tips | +4mm Billet + Slim Hub + High Blades + Extended Tips |
| Turbine Wheel | Factory Turbine Wheel | Factory Turbine Wheel | Factory Turbine Wheel |
| Thrust Bearing | 360° Thrust Bearing | Enhanced 360° Thrust Bearing | Enhanced 360° Thrust Bearing |
| Recommended Maximum Boost | Up to 14 PSI | Up to 24 PSI | Up to 24 PSI |
Boost figures are general capability references. Final boost targets should be set to suit the engine condition, fuel system, supporting modifications and ECU calibration.
Frequently Asked Questions
Will this turbo fit my vehicle?
This turbo is listed for Nissan Patrol GU applications shown in the Vehicle Fitment Guide below. Confirm the chassis code, engine code, production year and existing turbo part number before ordering.
What OEM turbo numbers does this replace?
The primary OEM reference is 14411-VS40A. Compatible alternative references include 11441-V040A / 14411-VC100 / 14411-VC200 / 14411-2X90A / 14411-2X900 / 14411-VB100.
Is this a direct bolt-on replacement?
Yes. This turbo is supplied as a direct bolt-on replacement for the listed applications, using the factory mounting locations and connections. Correct installation procedures and root-cause checks should still be completed before fitting.
What is included with the turbo?

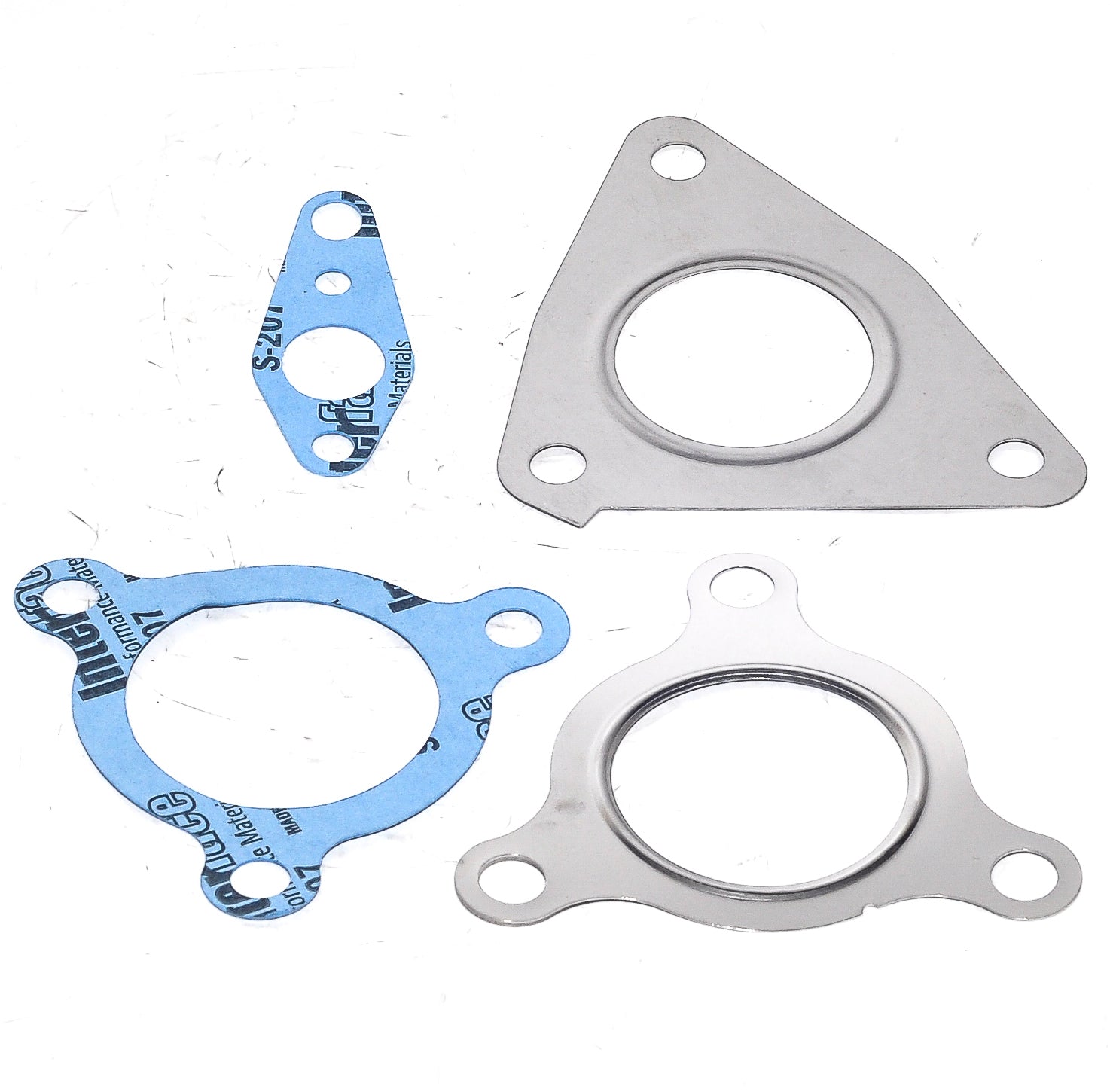

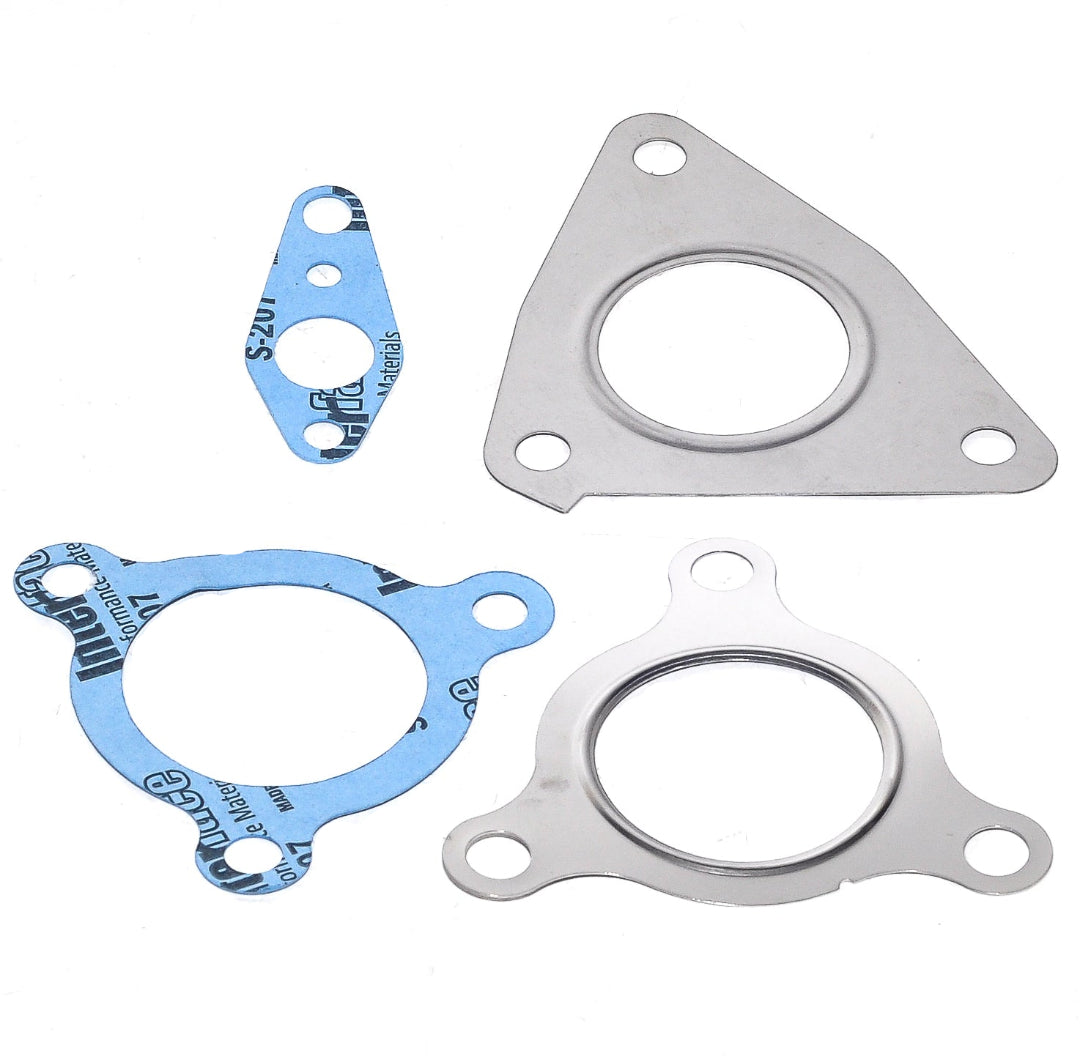

The package includes the complete turbocharger assembly, the matching actuator and an installation gasket kit.
What engineering specifications does this Stage 1 Plus turbo use?
Compressor wheel: +2mm Billet + Slim Hub + High Blades + Extended Tips. Turbine wheel: Factory Turbine Wheel. Thrust bearing: Enhanced 360° Thrust Bearing.
What boost level is this turbo designed to support?
This Stage 1 Plus turbo is designed to support up to 24 PSI. Final boost targets must suit the engine condition, fuel system, supporting modifications and ECU calibration.
Does this turbo include an actuator?
Yes. A matching actuator is included with the supplied unit. Actuator type: Vacuum Actuator.
Is ECU tuning required?
This turbo can be installed as a direct-fit upgrade, but ECU tuning is recommended to make full use of the increased airflow, towing performance and usable torque.
Which CCT turbo stage should I choose?
Stage 1 Plus is suited to daily driving, towing and touring applications where stronger usable torque and airflow are preferred over maximum peak flow.
Use the CCT Performance Upgrade Comparison on this page to compare the available stages for this turbo family.
What warranty and technical support are included?
CCT turbochargers are backed by a 24-month Australian warranty, local technical support and post-warranty rebuild assistance subject to inspection, parts availability and warranty terms.
