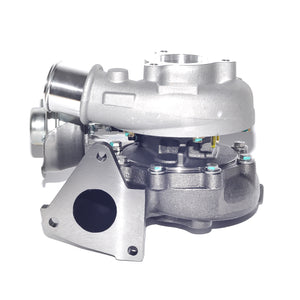

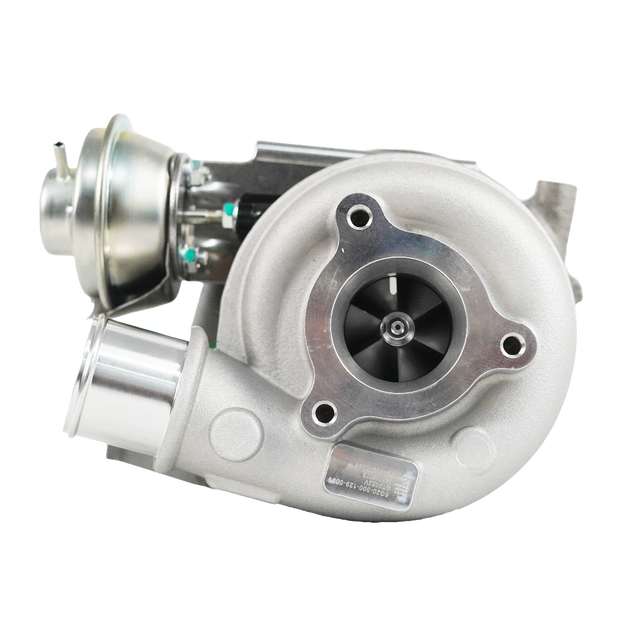

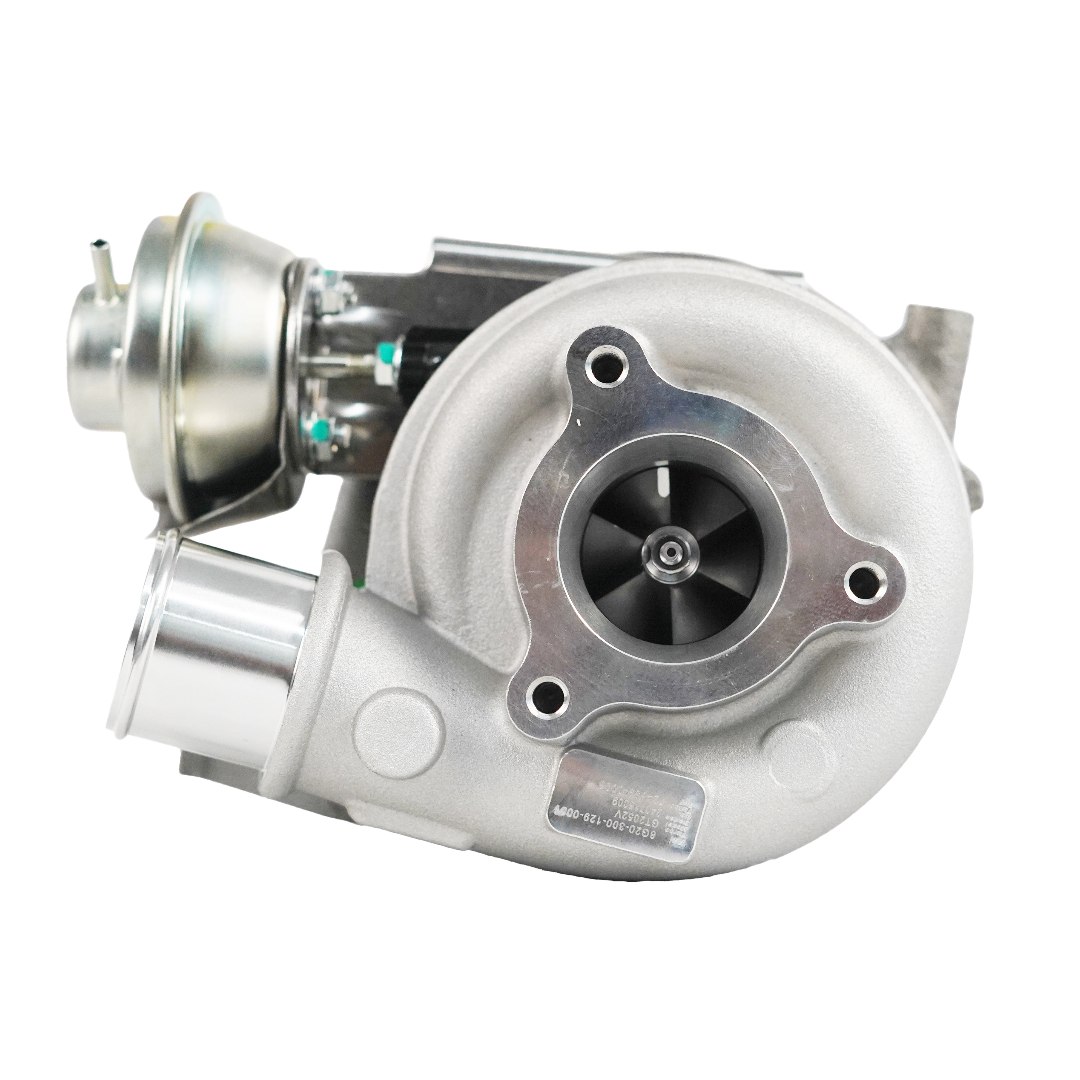

Brand New Turbo Charger for Nissan Patrol GU ZD30 3.0L 724639 / VS40A Oil Cooled Only
Brand New Turbo Charger for Nissan Patrol GU ZD30 3.0L 724639 / VS40A Oil Cooled Only is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Local Pickup Available
Local Pickup Available
Address:
Factory 1, 107 Wells Road, Chelsea Heights VIC 3196
Business hours:
8:30am-5:00pm Mon-Fri
(Excluding Public holidays)
Delivery and Shipping
Delivery and Shipping
- Shipping costs are calculated in the checkout.
- Free standard shipping for all orders over $350 via Australia Post
(Only available to Australian residents) - Express shipping is available and calculated in the checkout
- International shipping also available
Australian Supported Replacement Warranty
Australian Supported Replacement Warranty
This high-quality standard replacement turbocharger comes with a 12-Month Replacement Warranty, fully backed and processed by CCT Turbo right here in Melbourne.
While these units are produced by leading international manufacturers, we provide the ultimate layer of protection for our Australian customers. Instead of dealing with overseas factories, you get direct, local technical support and a hassle-free warranty process managed by our specialist engineering team.
Your peace of mind is guaranteed with Australian-based service and immediate local support.
Brand New Turbo Charger for Nissan Patrol GU ZD30 3.0L 724639 / VS4...
Premium Quality Standard Turbo
Balanced at extreme RPMs to ensure vibration-free longevity.
Precisely flow-calibrated to match original factory power specs.
Full Australian backed replacement warranty for absolute peace of mind.
Gaskets & seals provided for a leak-free install. (As Photo Shows)
Direct factory bolt-on replacement. No modifications required.
Direct technical assistance from our expert Melbourne team.
Description
Description
Premium Quality Replacement Turbo to Suit Nissan Patrol ZD30 3.0L
Restore your Nissan Patrol ZD30 power with our high-quality standard replacement turbocharger. Built to meet original factory specifications, this unit provides a reliable and durable solution for your engine repair. Engineered for absolute fitment precision and consistent daily performance.
🚀 Key Quality Highlights
- VSR High-Speed Balanced: Every unit is dynamically balanced at high speed (VSR) to eliminate vibration and ensure a long, reliable service life for your vehicle.
- Precisely Airflow Calibrated: Each turbo is flow-calibrated to match the original factory boost levels and power output, ensuring 100% engine compatibility.
- 12-Month Australian Warranty: Backed by a full 12-month Australian replacement warranty, with direct support and processing handled by CCT Turbo in Melbourne.
- 100% Direct Bolt-On Fitment: A true factory replacement design. All mounting points, oil feed lines, and flanges align perfectly with no modifications required.
- Proven Daily Reliability: Constructed using high-grade materials to survive the tough Australian environment, providing a perfect balance of value and durability.
🛠️ Turbocharger Specifications
| Turbo Model | GT2052V |
| Part Number | 769328-0001, 769328-1, 769328-5001 705954-0008 705954-5008S, 705954-8, 705954-5008, 705954-0009, 705954-5009S, 705954-9, 705954-5009, 705954-0011, 705954-5011S, 705954-11, 705954-5011, 705954-0013, 705954-5013S, 705954-13, 705954-5013, 705954-0015, 705954-5015S, 705954-15, 705954-5015, 705954-0016, 705954-5016S, 705954-16, 705954-5016, 705954-0017, 705954-5017S, 705954-17, 705954-5017 723739-5002S, 723739-5002, 723739-2, 723739-0002, 724639-5004S, 724639-5004, 724639-4, 724639-0004, 724639-5007S, 724639-5007, 724639-0007, 724639-7 |
| OEM Part Number | 14411-VS40A, 14411VS40A, 11441V040A, 11441-V040A, 14411VC100, 14411-VC100, 14411VC200, 14411-VC200, 144112X90A, 14411-2X90A, 144112X900, 14411-2X900 |
| Cooling Type | Oil Cooled Only |
| Actuator | Vacuum Actuator Included |
| Gaskets | Free Gasket Set Included (As Photo Shows) |
🚐 Vehicle Fitment Guide ▼
| Vehicle | Year Range | Engine | Fitment Note |
|---|---|---|---|
| Nissan Patrol GU Y61 (Early Di) | 1999 - 2003 | ZD30 3.0L Diesel | For early Di models 1999-2003, a blanking kit may be required to block the coolant flange off the engine. |
| Nissan Patrol GU Y61 (Later Di & all CRD) | 2004 - 2017 | ZD30 3.0L Diesel | Directly replace for later Di and all CRD models. 100% factory fitment, no modifications required. |
🛡️ CCT Performance Upgrade Matrix ▼
| Technical Specs | OEM Standard | CCT Stage 1 | CCT Stage 1 Plus | CCT Stage 2 |
|---|---|---|---|---|
| Compressor Wheel | Standard Cast Aluminum | Slim Hub, High Blades Performance Design Billet | 2mm Bigger Performance Design Billet | 4mm Bigger Performance Design Billet |
| Turbine Wheel | 9 Blades | 9 Blades | 9 Blades | 9 Blades |
| Thrust Bearing | Factory Bearing | 360 Degree HD Thrust Bearing | 360 Degree HD Thrust Bearing | 360 Degree HD Thrust Bearing |
| Max Safe Boost | Up to 14 PSI | Up to 21 PSI | Up to 24 PSI | Up to 24 PSI |
❓ Frequently Asked Questions ▼
1. Will this turbo fit my Patrol ZD30 Di or CRD engine?
Yes. This turbocharger is a 100% direct fit for all Nissan Patrol GU Y61 models with the ZD30 3.0L engine. Note: For early Di models (1999-2003), you will need to block off the coolant flange from the engine block, as this is an oil-cooled only turbo. Apart from this specific fitment detail, the turbo is a direct bolt-on replacement.
2. Is this a genuine Nissan turbo or a premium replacement?
This is a premium-grade aftermarket replacement turbocharger built to original factory specifications. It offers reliable, factory-level performance and durability at a much more competitive price than a genuine dealer part.
3. Does it come with the vacuum actuator pre-installed?
Yes, this turbo comes 100% complete with a brand new, pre-calibrated vacuum actuator pre-installed. It is a full assembly, meaning you don't need to reuse any parts from your old unit or perform manual calibration.
4. Are these turbochargers high-speed balanced?
Absolutely. Every unit undergoes rigorous high-speed VSR (Vibration Sorting Rig) dynamic balancing to ensure it operates smoothly without vibration, which is critical for the long-term life of your engine.
5. Do I need to perform any ECU tuning or remapping?
No. Since this is a standard replacement unit built to factory specifications, it is designed to work seamlessly with your vehicle's original ECU settings. No tuning or modifications are required.
6. What is the warranty on this ZD30 replacement turbo?
We provide a 12-Month Australian Replacement Warranty. As a Melbourne-based company, we handle all technical support and warranty claims locally for a fast, hassle-free experience.
7. Is a gasket kit included in the box?
Yes, this turbo comes with a free set of gaskets as photo shows. All essential seals required for a leak-free installation are included in every box.
8. How do I confirm if my old part number matches this one?
Please check the turbo part numbers listed in the product description. If your number matches any of them, it is a 100% guaranteed fit. If your number is not listed, please send us your VIN, and our team will verify the fitment for you.
9. Why should I choose CCT Turbo for my Patrol replacement?
CCT Turbo is a specialist Australian turbo company. We exclusively source our standard series from the top 3 global aftermarket manufacturers, ensuring significantly higher quality and precision than unknown factories.
10. Should I replace the oil feed line during installation?
Highly recommended. Carbon buildup in the original ZD30 oil feed line is a leading cause of turbo failure. Installing a new oil line ensures clean lubrication and protects your new investment.
Please confirm part numbers prior to ordering.
If you are unsure, feel free to contact us.
