Brand New Turbo Charger To Suit Nissan Navara D22 ZD30 3.0L HT12
Brand New Turbo Charger To Suit Nissan Navara D22 ZD30 3.0L HT12 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Local Pickup Available
Local Pickup Available
Address:
Factory 1, 107 Wells Road, Chelsea Heights VIC 3196
Business hours:
8:30am-5:00pm Mon-Fri
(Excluding Public holidays)
Delivery and Shipping
Delivery and Shipping
- Shipping costs are calculated in the checkout.
- Free standard shipping for all orders over $350 via Australia Post
(Only available to Australian residents) - Express shipping is available and calculated in the checkout
- International shipping also available
Australian Supported Replacement Warranty
Australian Supported Replacement Warranty
This high-quality standard replacement turbocharger comes with a 12-Month Replacement Warranty, fully backed and processed by CCT Turbo right here in Melbourne.
While these units are produced by leading international manufacturers, we provide the ultimate layer of protection for our Australian customers. Instead of dealing with overseas factories, you get direct, local technical support and a hassle-free warranty process managed by our specialist engineering team.
Your peace of mind is guaranteed with Australian-based service and immediate local support.

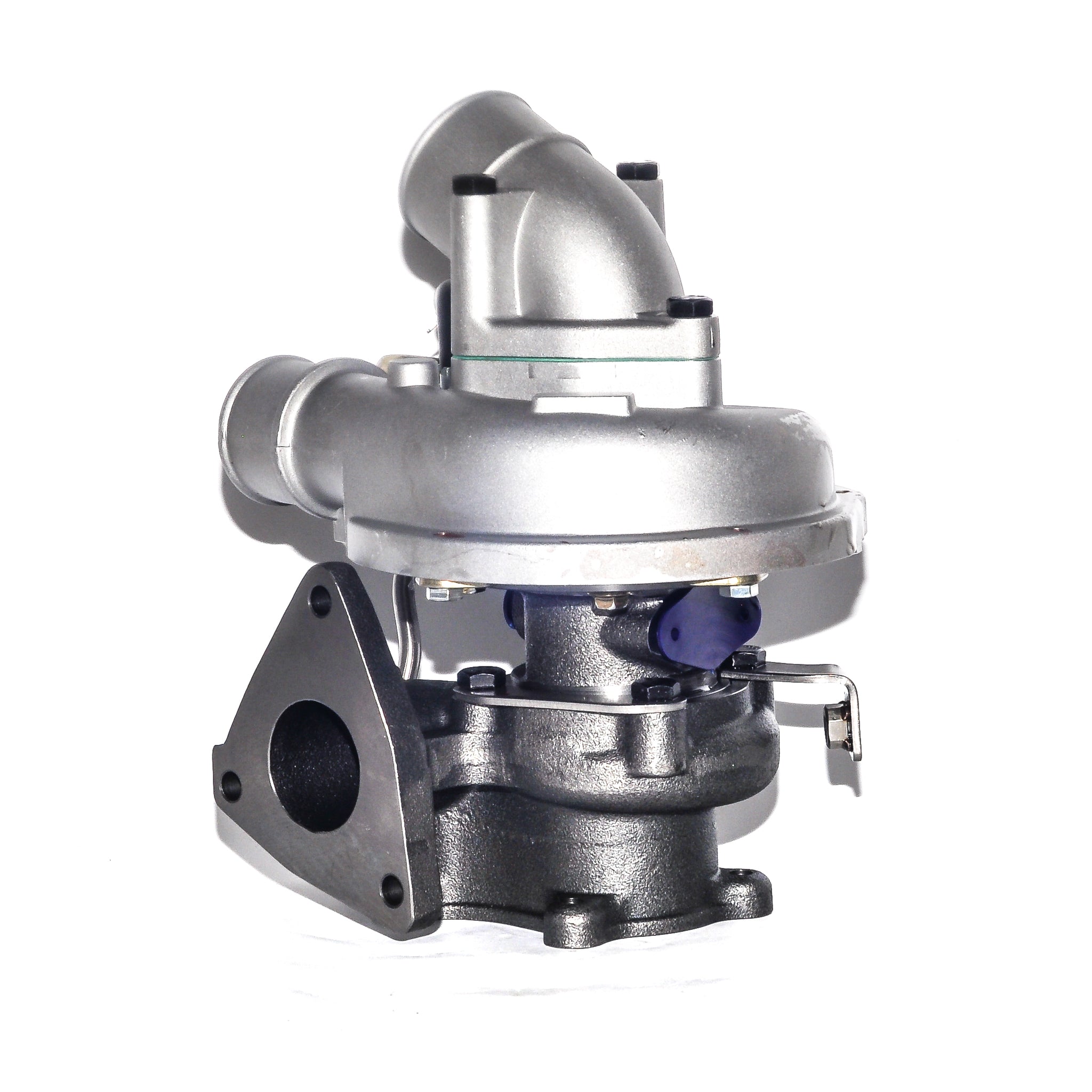

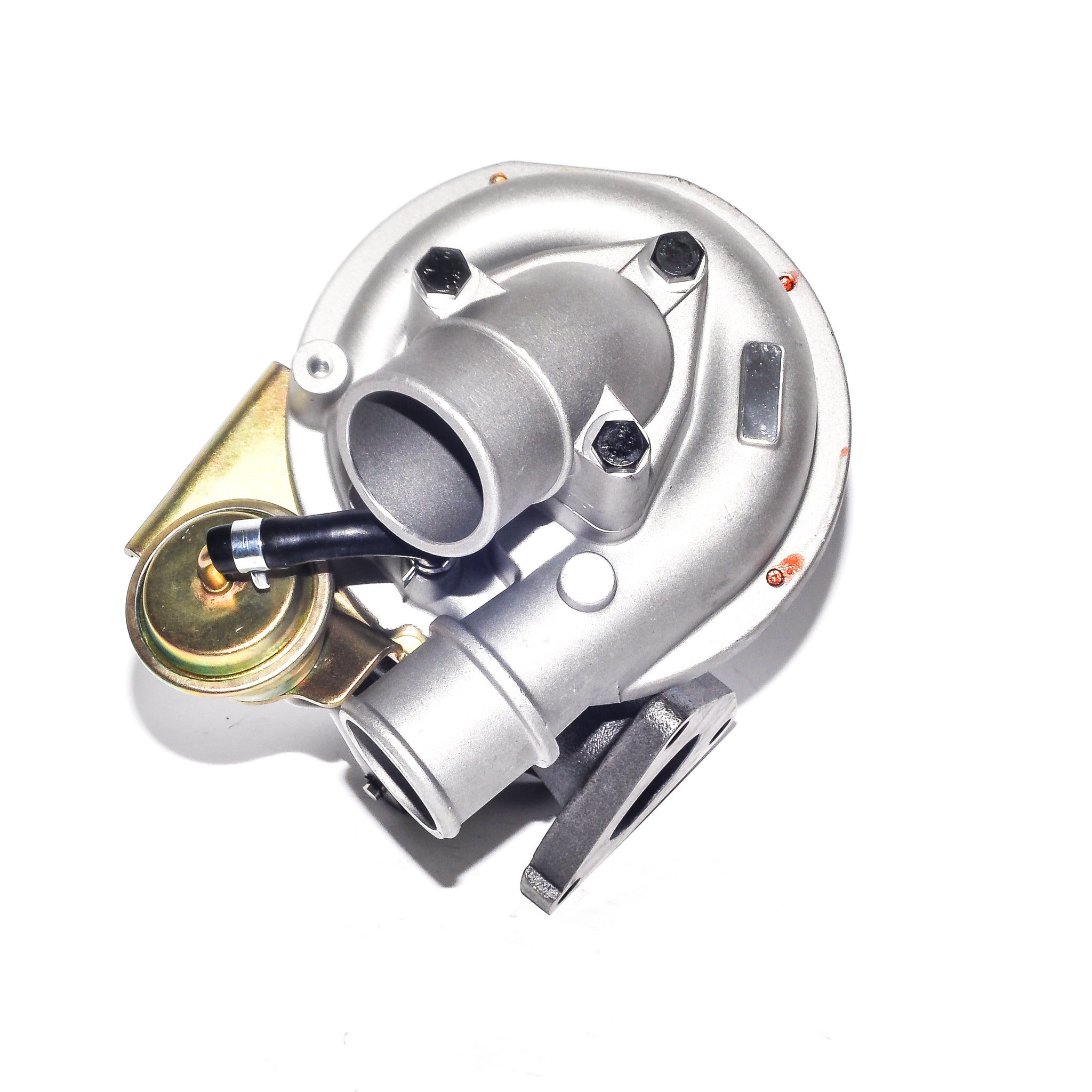

Brand New Turbo Charger To Suit Nissan Navara D22 ZD30 3.0L HT12
Premium Quality Standard Turbo
Balanced at extreme RPMs to ensure vibration-free longevity.
Precisely flow-calibrated to match original factory power specs.
Full Australian backed replacement warranty for absolute peace of mind.

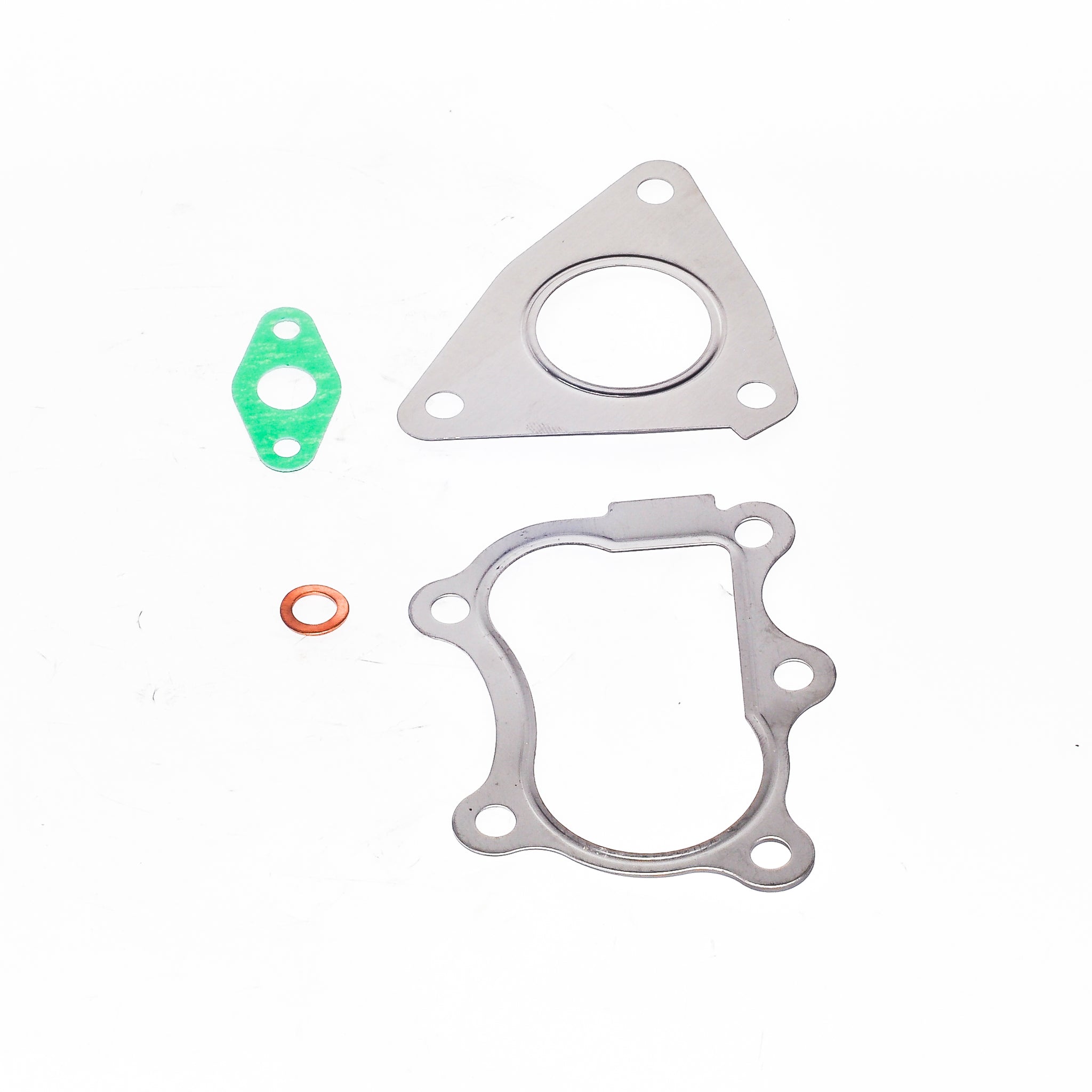

Gaskets & seals provided for a leak-free install. (As Photo Shows)
Direct factory bolt-on replacement. No modifications required.
Direct technical assistance from our expert Melbourne team.
Description
Description
Premium Quality Replacement Turbo to Suit Nissan Navara D22 ZD30
Restore your Nissan Navara D22 ZD30's power with our high-quality standard replacement turbocharger. Built to meet original factory specifications, this unit provides a reliable and durable solution for your engine repair. Engineered for absolute fitment precision and consistent daily performance.
🚀 Key Quality Highlights
- VSR High-Speed Balanced: Every unit is dynamically balanced at high speed (VSR) to eliminate vibration and ensure a long, reliable service life for your vehicle.
- Precisely Airflow Calibrated: Each turbo is flow-calibrated to match the original factory boost levels and power output, ensuring 100% engine compatibility.
- 12-Month Australian Warranty: Backed by a full 12-month Australian replacement warranty, with direct support and processing handled by CCT Turbo in Melbourne.
- 100% Direct Bolt-On Fitment: A true factory replacement design. All mounting points, oil feed lines, and flanges align perfectly with no modifications required.
- Proven Daily Reliability: Constructed using high-grade materials to survive the tough Australian environment, providing a perfect balance of value and durability.
🛠️ Turbocharger Specifications
| Turbo Model | HT12-19D |
| Part Number | HT12-19D |
| OEM Part Number | 14411-9S000, 144119S000, 14411-9S00A, 144119S00A, 14411-9S002, 144119S002, 14411-9S001, 144119S001, 047663, 047-229, 047-663, 1047282, 047282 |
| Cooling Type | Oil Cooled Only |
| Actuator | Actuator Included |
| Gaskets | Free Gasket Set Included |
🚐 Vehicle Fitment Guide ▼
| Vehicle | Year Range | Engine | Fitment Note |
|---|---|---|---|
| Nissan Navara D22 ZD30 | 2001 - 2008 | ZD30 3.0L Diesel | 100% direct fitment. The Nissan Navara D22 with ZD30 3.0L engine only utilizes this specific turbocharger model. |
🛡️ CCT Performance Upgrade Matrix ▼
| Technical Specs | OEM Standard | CCT Stage 1 | CCT Stage 1 Plus | CCT Stage 2 |
|---|---|---|---|---|
| Compressor Wheel | Standard Cast Aluminum | Performance Design Billet | 2mm Bigger Performance Design Billet | 4mm Bigger Performance Design Billet |
| Turbine Wheel | Factory Spec | Factory Spec | 9-Blade Inconel 713C (Hi-Flow Design) | 9-Blade Inconel 713C (Hi-Flow Design) |
| Thrust Bearing | Factory 270 Degree Thrust Bearing | Factory 270 Degree Thrust Bearing | HD 360 Degree Thrust Bearing | HD 360 Degree Thrust Bearing |
| Max Safe Boost | Up to 12 PSI | Up to 15 PSI | Up to 24 PSI | Up to 24 PSI |
❓ Frequently Asked Questions ▼
1. Will this standard turbo fit my Nissan Navara D22 ZD30?
Yes. This turbocharger is designed as a 100% direct fit replacement for the Nissan Navara D22 equipped with the ZD30 3.0L engine (2001-2008). It is the specific model used for this vehicle and engine combination.
2. Is this a genuine Nissan turbo or a premium replacement?
This is a premium-grade aftermarket replacement built to exact original factory specifications. We source our standard series exclusively from the top 3 global aftermarket manufacturers to provide a reliable, cost-effective alternative to dealer parts.
3. Does it come with the actuator pre-installed?
Yes, this is a complete turbocharger assembly that includes a brand-new, pre-calibrated pneumatic actuator. It is ready for a direct bolt-on installation without needing to reuse any parts from your old unit.
4. Are these turbochargers balanced to professional standards?
Absolutely. Every unit undergoes rigorous high-speed VSR (Vibration Sorting Rig) dynamic balancing in our Melbourne facility. This ensures vibration-free operation and a long engine service life, which is critical for high-mileage engines.
5. Do I need an ECU remap or any modifications?
No. Since this unit is built to match original factory dimensions and boost settings, it will run perfectly on your vehicle's standard ECU settings. It is a 100% "plug-and-play" replacement.
6. What is the warranty on this D22 replacement turbo?
We provide a 12-Month Australian Replacement Warranty. As a Melbourne-based company, we handle all technical support and warranty claims locally, ensuring a fast and stress-free experience.
7. Is a gasket kit included with the purchase?
Yes, this turbo comes with a free set of gaskets as photo shows. All the necessary high-quality gaskets and seals needed for a professional installation are included in every box.
8. What other maintenance should I do when replacing my D22 turbo?
On an older ZD30 engine, we strongly advise performing a fresh oil and filter change and cleaning your intercooler before fitting the new unit. Ensuring your engine breathing system is clean will prevent carbon buildup from damaging the new turbo's seals.
9. Why should I buy from CCT Turbo instead of a random online seller?
CCT Turbo is a specialist Australian turbo company. We provide expert local technical support and only source from the world's top 3 manufacturers, ensuring significantly higher quality than unknown budget factories.
10. Should I replace the oil feed line when fitting the new turbo?
Highly recommended. Carbon buildup in the original 3.0L oil feed line is a common cause of premature failure. A new oil line ensures immediate clean lubrication to the new bearings and protects your investment.
Please confirm part numbers prior to ordering.
If you are unsure, feel free to contact us.
