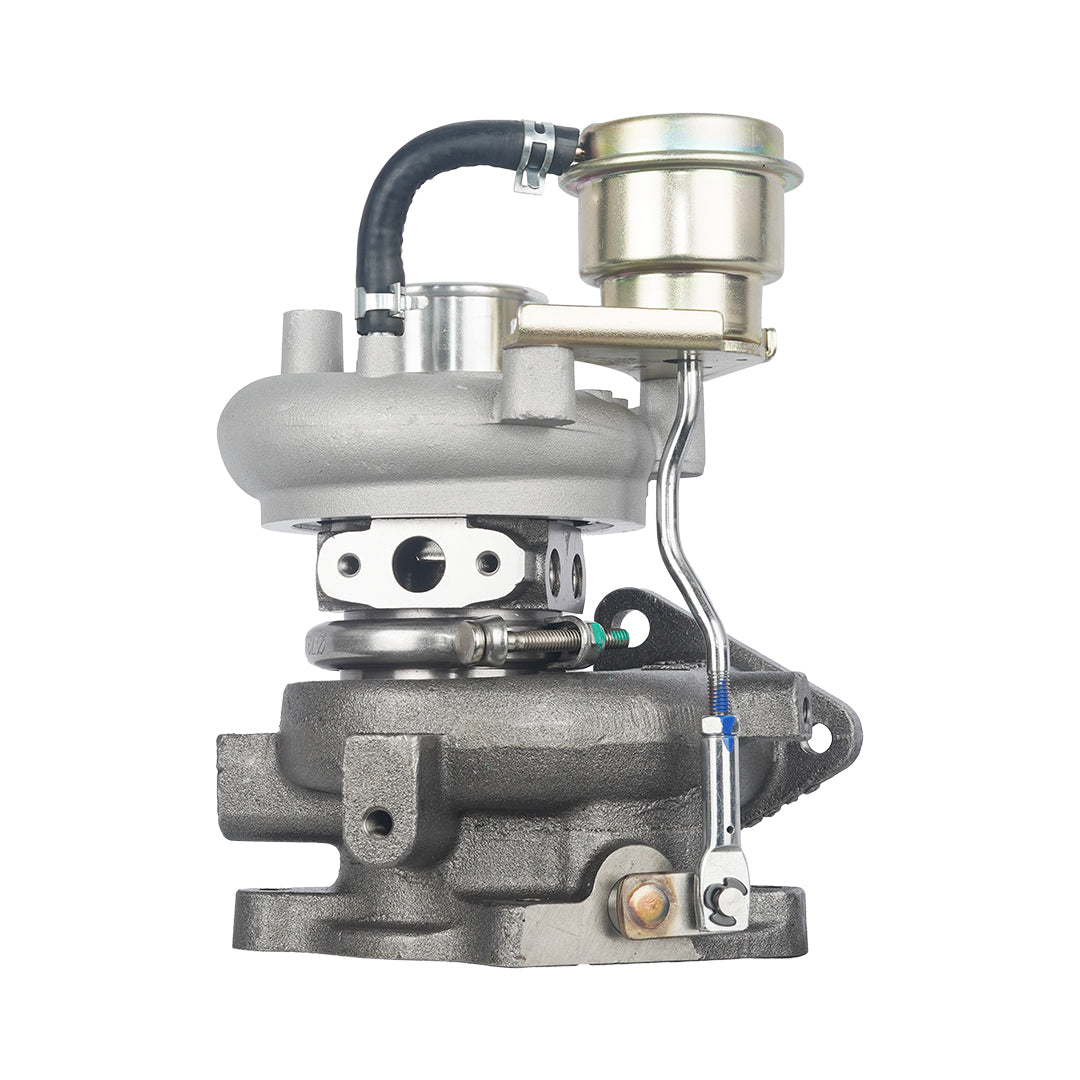

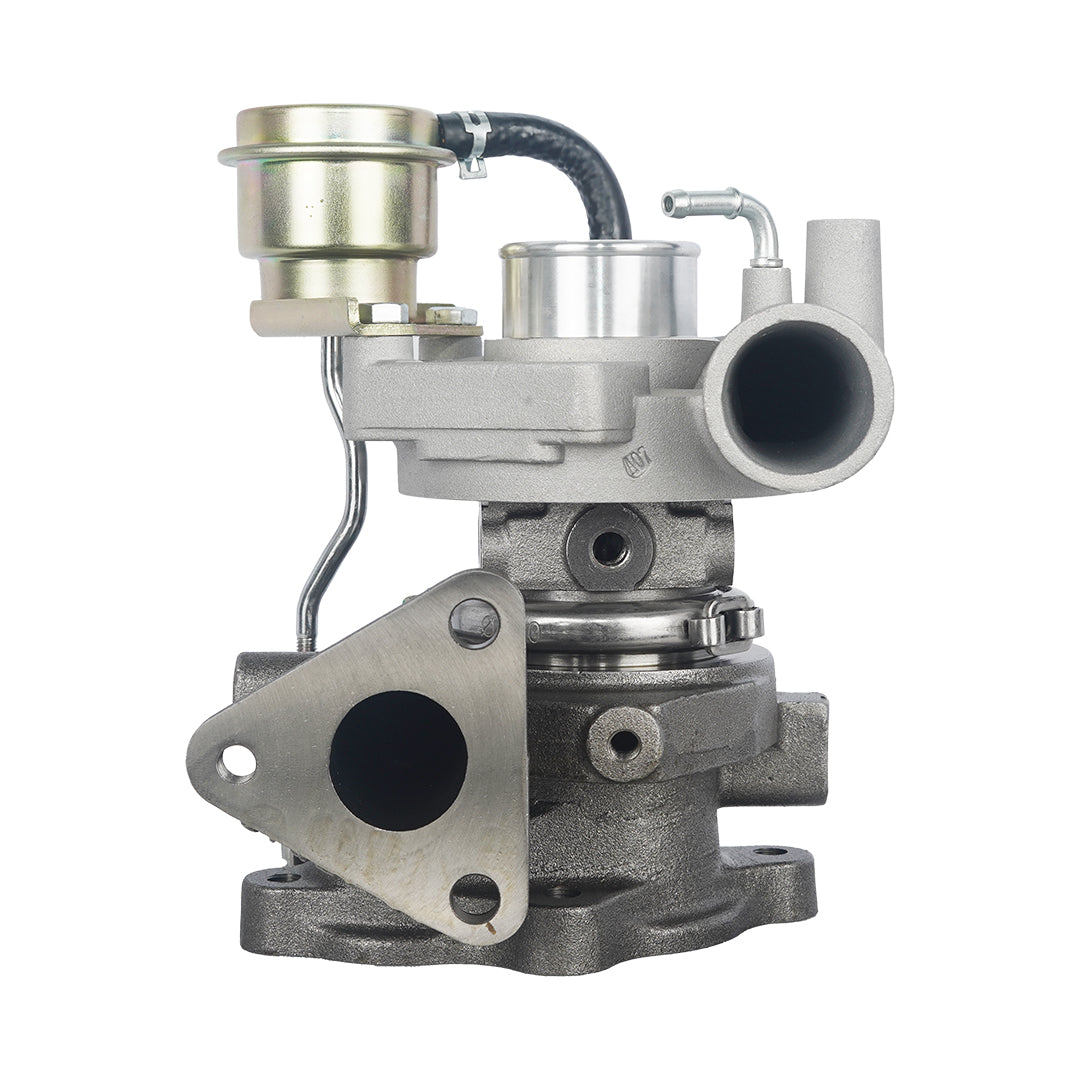

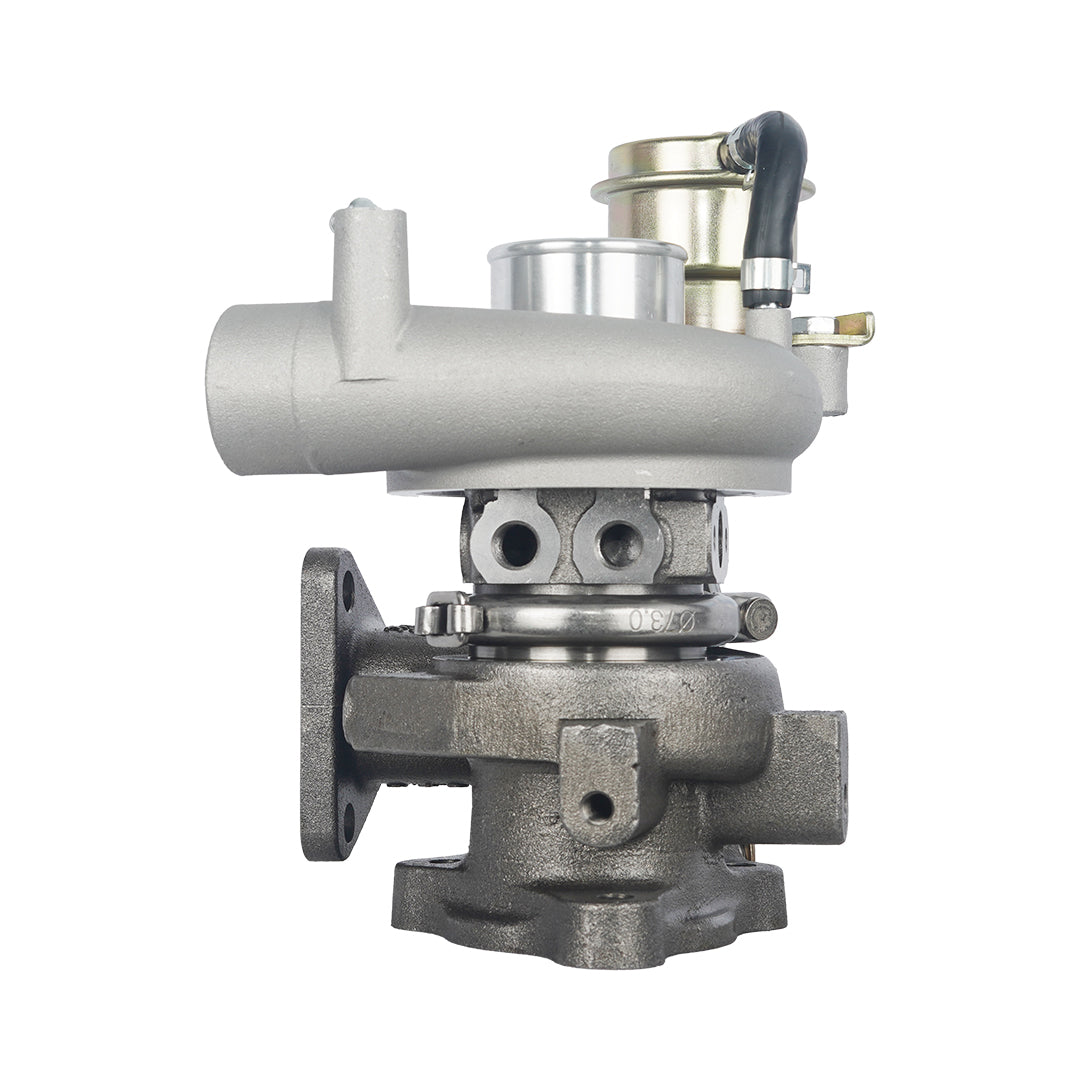

CCT Stage1 Plus Upgrade Hi-Flow Turbo charger for Mitsubishi Triton Pajero Delica 4M40 2.8L ME202578 / 03101
Pickup available at CCT Turbo
Usually ready in 24 hours
Local Pickup Available
Local Pickup Available
Address:
Factory 1, 107 Wells Road, Chelsea Heights VIC 3196
Business hours:
8:30am-5:00pm Mon-Fri
(Excluding Public holidays)
Delivery and Shipping
Delivery and Shipping
- Shipping costs are calculated in the checkout.
- Free standard shipping for all orders over $350 via Australia Post
(Only available to Australian residents) - Express shipping is available and calculated in the checkout
- International shipping also available
Australian Hassle Free Warranty
Australian Hassle Free Warranty
All CCT Stage1 & Stage2 turbochargers come with a 24 Month Warranty and are backed by our Lifetime Rebuild Guarantee.
CCT Stage1 Plus Upgrade Hi-Flow Turbo charger for Mitsubishi Triton...
CCT Quality Standards
Product Overview
CCT Stage 1 Plus Turbocharger Upgrade for Mitsubishi Applications
The CCT Stage 1 Plus Turbocharger Upgrade is engineered for Mitsubishi Challenger PA, Mitsubishi Delica L400 and Mitsubishi Triton MK applications powered by the 4M40T 2.8L engine.
Positioned between a factory replacement and a full high-flow turbocharger, the CCT Stage 1 Plus is designed for stronger towing performance, improved throttle response and increased airflow while retaining OEM-style drivability and dependable road manners.
Engineering upgrades include +2mm Billet + Slim Hub + High Blades + Extended Tips, combined with Factory Turbine Wheel and Enhanced 360° Thrust Bearing . Together, these changes are designed to improve compressor efficiency, mid-range response and durability under increased load, with a listed boost capability of up to 16 PSI.
Complete technical specifications and vehicle compatibility are provided below, together with a performance comparison where available.
Turbocharger Specifications
49135-03101 / 49135-03111 / 49135-03121 + 1 more
Vehicle Fitment Guide
Check the vehicle, chassis, year and engine details below before ordering.
| Vehicle | Chassis / Series | Year Range | Engine | Fitment Notes |
|---|---|---|---|---|
| MitsubishiChallenger Mitsubishi Challenger PA 4M40T 03101 | PA K97 | 1996–2008 | 4M40T 2.8L | Confirm part numbers before ordering. |
| MitsubishiDelica Mitsubishi Delica L400 4M40T 03101 | L400 PD8W / PE8W / PF8W | 1994–2006 | 4M40T 2.8L | Confirm part numbers before ordering. |
| MitsubishiTriton Mitsubishi Triton MK 4M40T 03101 | MK K77 | 2003–2006 | 4M40T 2.8L | Confirm part numbers before ordering. |
CCT Performance Upgrade Comparison
Compare the available CCT turbo upgrade stages for this turbo family. Select a stage heading to view the matching product.
| Technical Specification | Standard Turbo OEM Replacement | Stage 1 Plus Towing & TouringCurrent | Stage 2 High-Flow Performance |
|---|---|---|---|

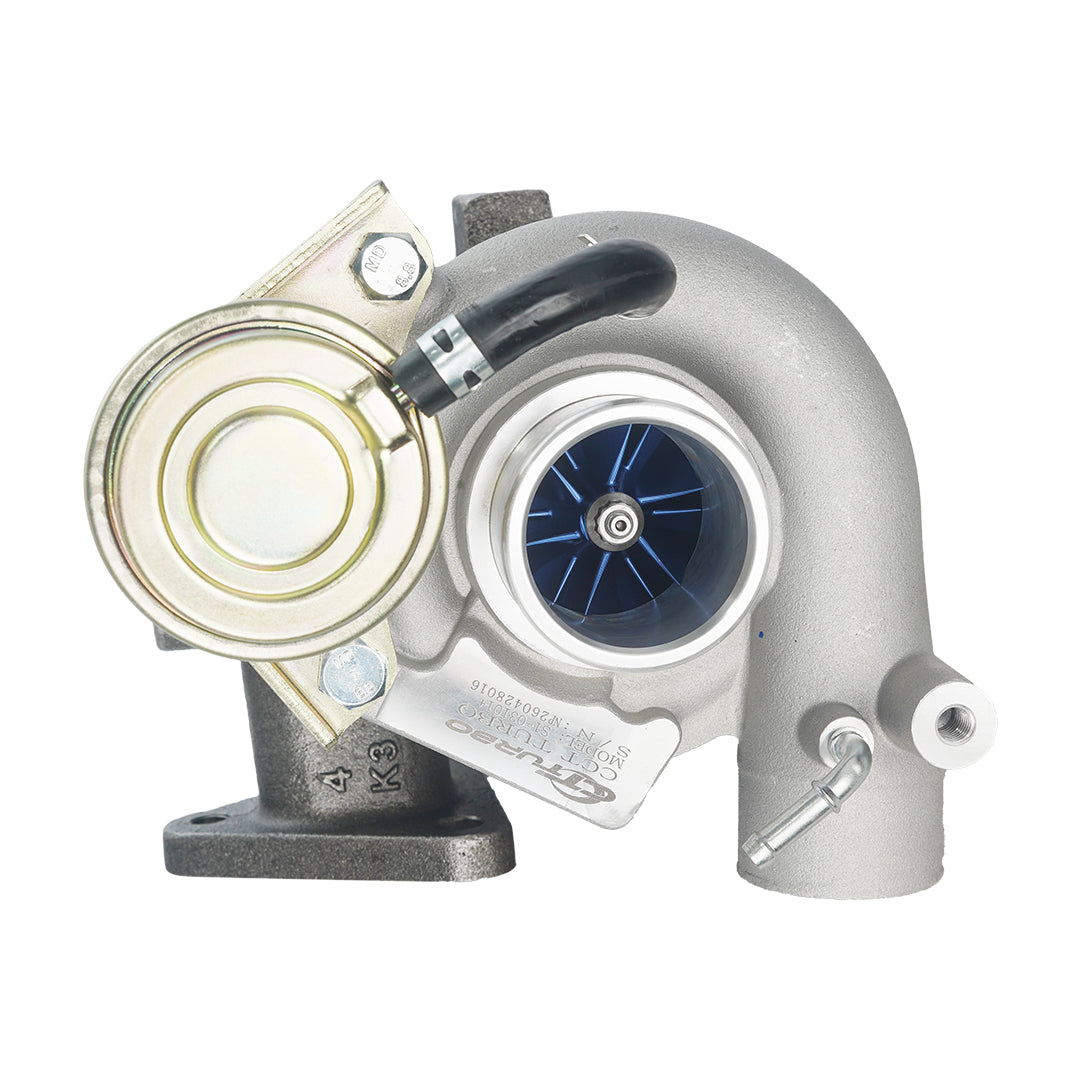

| Compressor Wheel | Factory Cast Compressor Wheel | +2mm Billet + Slim Hub + High Blades + Extended Tips | +4mm Billet + Slim Hub + High Blades + Extended Tips |
| Turbine Wheel | Factory Turbine Wheel | Factory Turbine Wheel | Factory Turbine Wheel |
| Thrust Bearing | 360° Thrust Bearing | Enhanced 360° Thrust Bearing | Enhanced 360° Thrust Bearing |
| Recommended Maximum Boost | Up to 10 PSI | Up to 16 PSI | Up to 18 PSI |
Boost figures are general capability references. Final boost targets should be set to suit the engine condition, fuel system, supporting modifications and ECU calibration.
Frequently Asked Questions
Will this turbo fit my vehicle?
This turbo is listed for Mitsubishi Challenger PA, Mitsubishi Delica L400 and Mitsubishi Triton MK applications. Confirm the full chassis, year, engine and part-number details in the Vehicle Fitment Guide before ordering.
What OEM turbo numbers does this replace?
The primary OEM reference is ME202578. Compatible alternative references include ME201677 / ME202435.
Is this a direct bolt-on replacement?
Yes. This turbo is supplied as a direct bolt-on replacement for the listed applications, using the factory mounting locations and connections. Correct installation procedures and root-cause checks should still be completed before fitting.
What is included with the turbo?

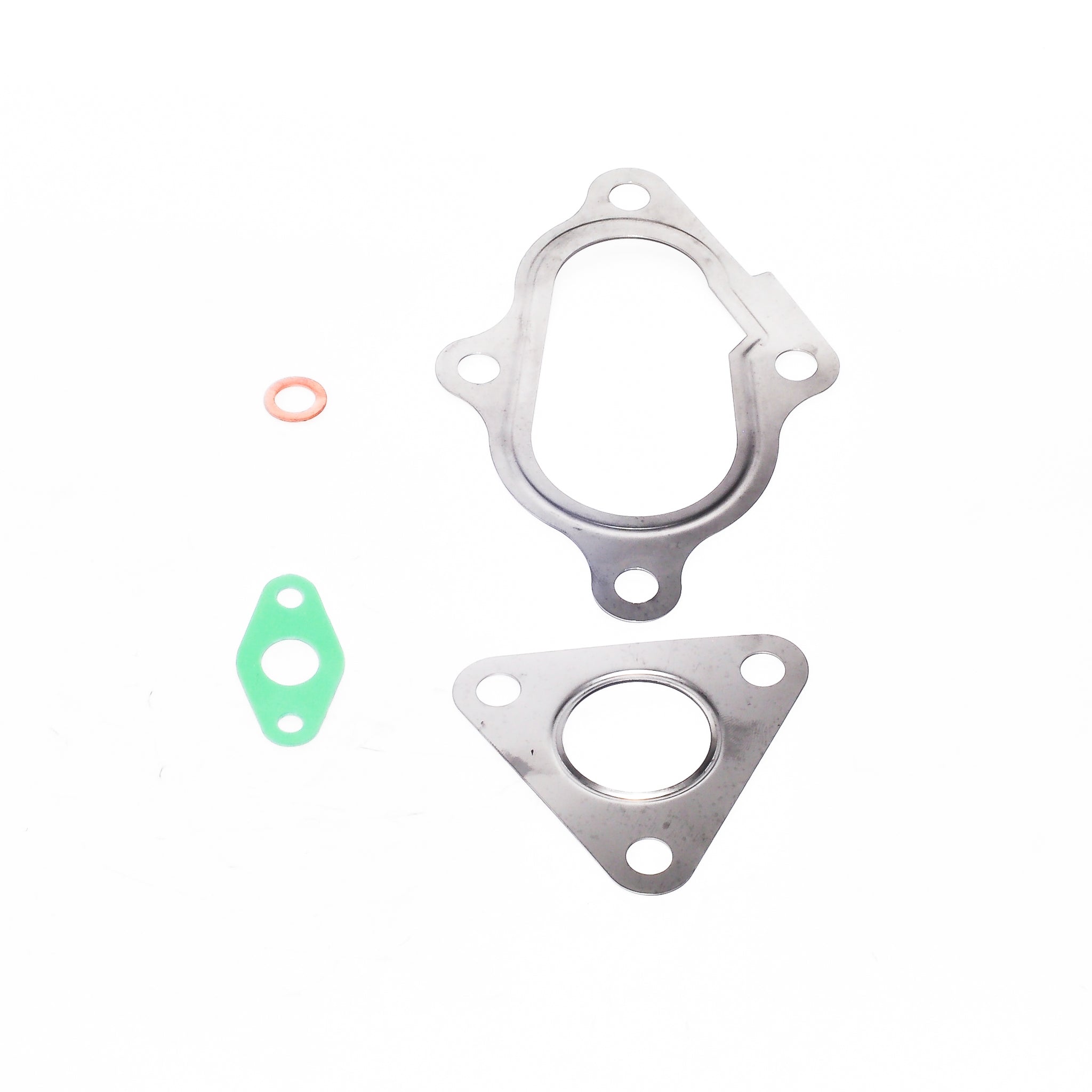

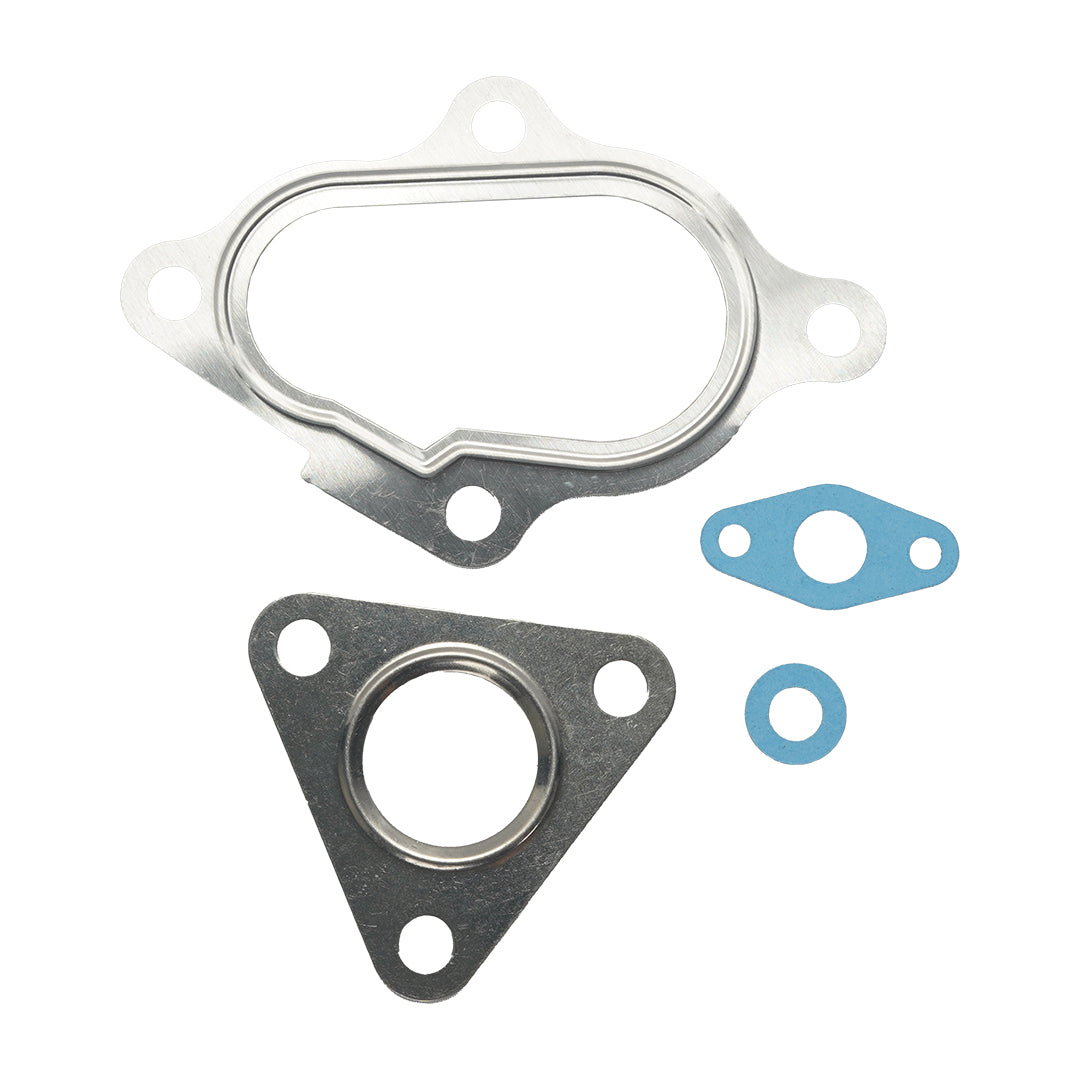

The package includes the complete turbocharger assembly, the matching actuator and an installation gasket kit.
What engineering specifications does this Stage 1 Plus turbo use?
Compressor wheel: +2mm Billet + Slim Hub + High Blades + Extended Tips. Turbine wheel: Factory Turbine Wheel. Thrust bearing: Enhanced 360° Thrust Bearing.
What boost level is this turbo designed to support?
This Stage 1 Plus turbo is designed to support up to 16 PSI. Final boost targets must suit the engine condition, fuel system, supporting modifications and ECU calibration.
Does this turbo include an actuator?
Yes. A matching actuator is included with the supplied unit. Actuator type: Pneumatic Wastegate Actuator.
Is ECU tuning required?
This turbo can be installed as a direct-fit upgrade, but ECU tuning is recommended to make full use of the increased airflow, towing performance and usable torque.
Which CCT turbo stage should I choose?
Stage 1 Plus is suited to daily driving, towing and touring applications where stronger usable torque and airflow are preferred over maximum peak flow.
Use the CCT Performance Upgrade Comparison on this page to compare the available stages for this turbo family.
What warranty and technical support are included?
CCT turbochargers are backed by a 24-month Australian warranty, local technical support and post-warranty rebuild assistance subject to inspection, parts availability and warranty terms.
